The radius of the straight circular power cord is R = 0.55 cm and it has...

The radius of the straight circular power cord is R = 0.55 cm and it has a current of I = 1.3 A. Calculate the magnetic field strength B caused by the power cord
a) at a distance r1 = 0.16 cm from the axis of the power cable.
b) at a distance r2 = 1.7 cm from the axis of the power cord.
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

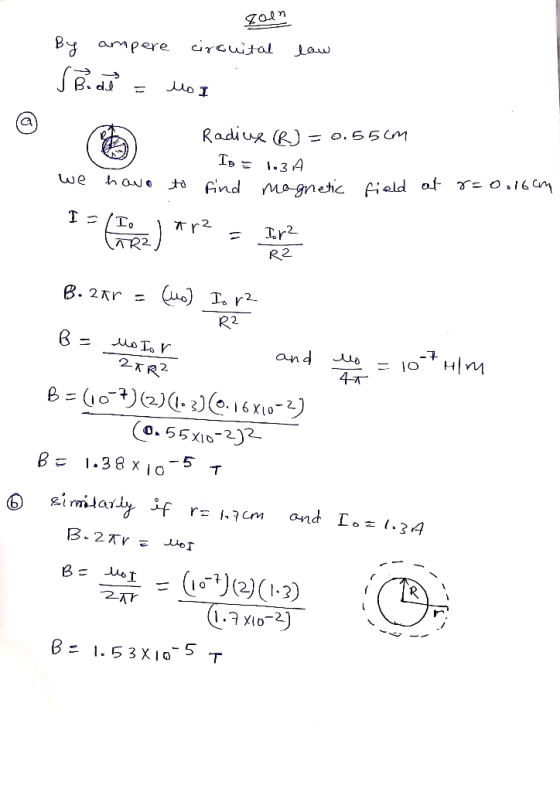

Answer #1

0 0
Add a comment
