A 10-kg, smooth block moves to the right with a velocity of v0 m/s when a...
A 10-kg, smooth block moves to the right with a velocity of v0 m/s when a force F is applied at time t0=0 s.

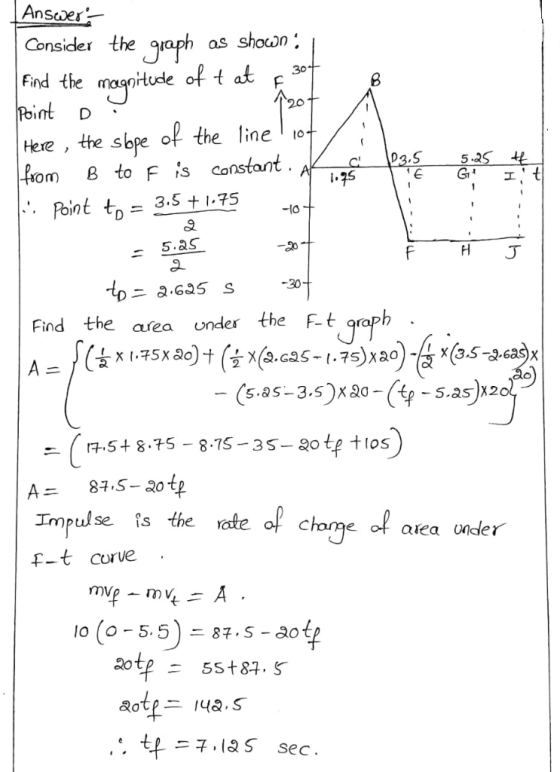

At time t0=0 s, a force is applied to the block. The force varies as shown in the graph, (Figure 4), where t1=1.75 s, t2=3.5 s, and t3=5.25 s. If the block is moving with an initial velocity v0=5.5 m/s and the force remains constant at −20 N for all times greater than t3, at what time tf does the block stop moving to the right? Express your answer to three significant figures.
