Three boxes, each of mass 22 kg are on a frictionless table, connected by massless strings....

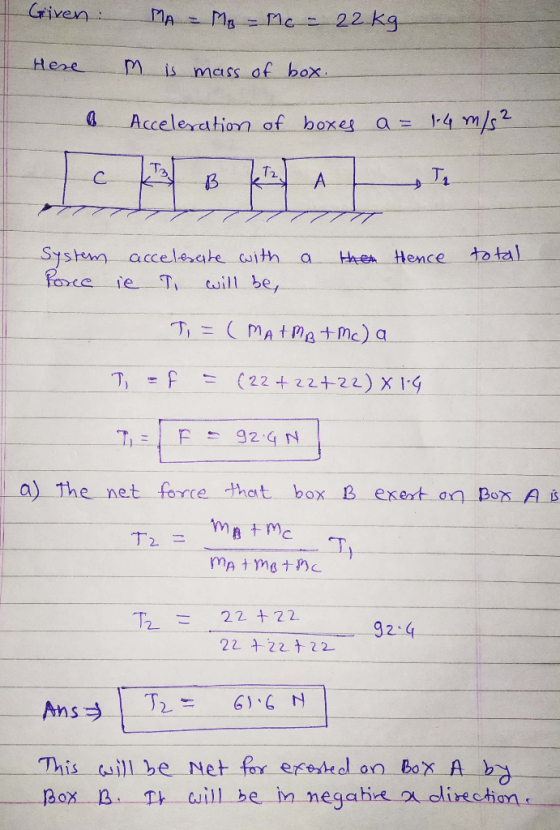

Three boxes, each of mass 22 kg are on a frictionless table, connected by massless strings. A force of tension T1 pulls on the right most box (A) such that the three boxes accelerate in the positive horizontal direction at a rate of a = 1.4 m/s2.
1. What is the net force that box B exerts on box A?

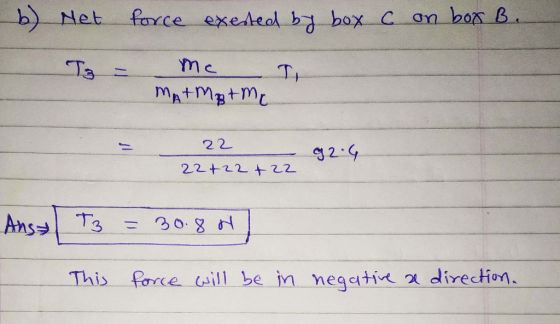

2. What is the net force box C exerts on box B?
Homework Answers
This problem is about the masses connected by the string. In
order to solve this problem first we have to find the net force on
the system then we have to find the force on individual
box.
