A vending machine doesn’t take pennies or quarters and doesn’t provide any change The cup coffee...
A vending machine doesn’t take pennies or quarters and doesn’t provide any change

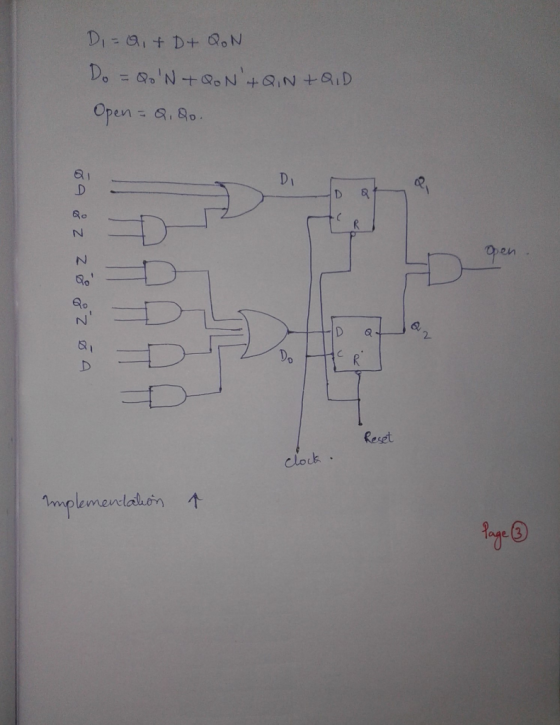

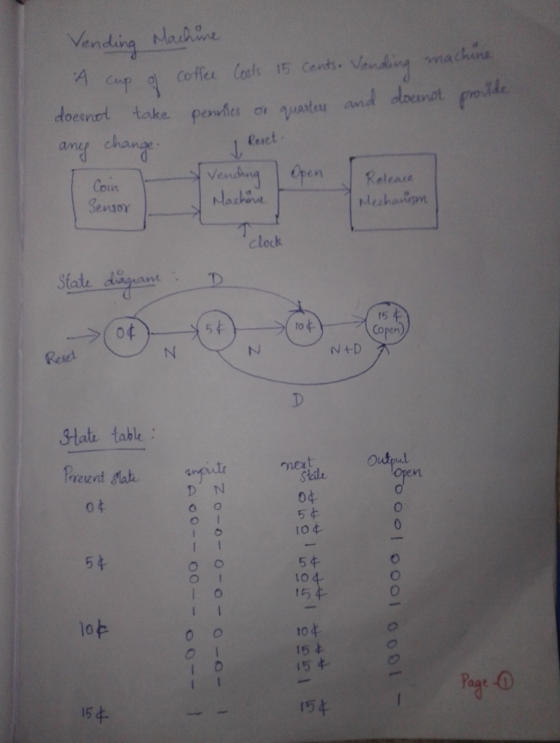

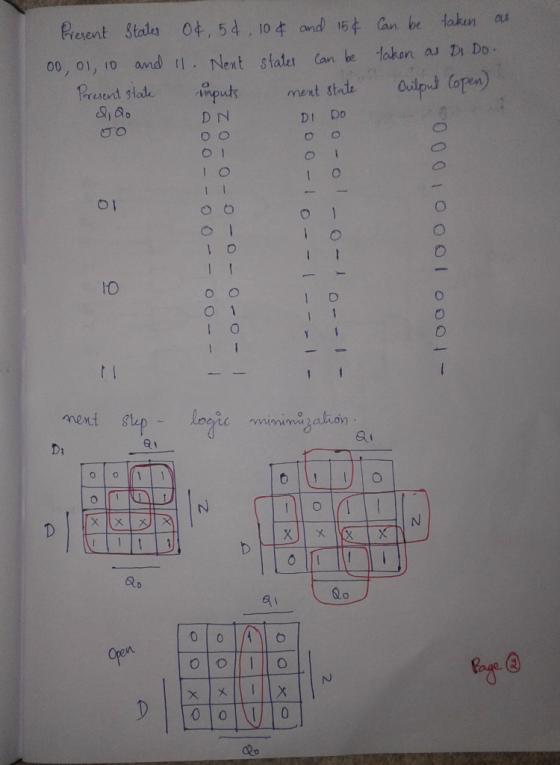

The cup coffee is 15 cents. Implement the design by designing the state table and state diagram?
Homework Answers
Add Answer to:
A vending machine doesn’t take pennies or quarters and doesn’t
provide any change
The cup coffee...
The California student chapter is co-sponsoring a tea vending machine with a heavily subsidized price of...
The California student chapter is co-sponsoring a tea vending machine with a heavily subsidized price of 15 cents a cup. Design a Mealy FSM for the vending machine assuming the students can load nickels (input N) and dimes (input D), only one coin at a time. If the user tries to enter two coins at the same time, the vending machine would not allow it, i.e. it will stay in the same state. If the user pays more than 15...
Pyhton Program : Write a coffee vending machine class. Include fields giving the number of cups...
Pyhton Program : Write a coffee vending machine class. Include fields giving the number of cups of coffee available, the cost of one cup of coffee, and the total amount of money inserted by the user. This machine requires exact change. Include one constructor which stocks the machine with a quantity and price of coffee specified as parameters. Include the following methods; menu() // display the quantity and price of coffee insert(int quarters, int dimes, int nickels) // insert the...
A vending machine dispenses coflee into a söteen-ounce cup. The amount of coffee dispensed into the...
A vending machine dispenses coflee into a söteen-ounce cup. The amount of coffee dispensed into the cup is normally distributed with a standard deviation of 0.07 ource. You can alow the cup to overfil 10% of the time what amount should you set as the mean amount of coffee to be dispensed? Click to view page 1 of the table. Click to view page 2 of the table ounces (Round to two decimal places as needed.) Incorrect: 1 Enter your...
Redesign the Mealy Vending Machine (from the class lecture notes), to include an output for provi...
Redesign the Mealy Vending
Machine (from the class lecture notes), to include an output for
providing “Change” if more than 15 cents is received instead of
giving credit, using only D flip flops and combinational logic.
Extra Credit Problem 6: 10 pts)_Redesign the Mealy Vending Machine (from the class lecture notes), to include an output for providing "Change" if more than 15 cents is received instead of giving credit, using only D flip flops and combinational logic. Binary (1, Q0)...
1. Construct a finite-state machine with output that models a candy machine that accepts only pennies. Cando costs 3 cents and the machine always keeps the money for any amount greater than 3 cents. T...
1. Construct a finite-state machine with output that models a candy machine that accepts only pennies. Cando costs 3 cents and the machine always keeps the money for any amount greater than 3 cents. The customer can bush buttons to receive candy or to return pennies. Represent the machine with a state table. 2. Construct a finite-state machine with output that delays input by two bits using 11 for the delay. Represent the machine with a state diagram.
Write the algorithm that determines the change to be dispensed from a vending machine. An item...
Write the algorithm that determines the change to be dispensed from a vending machine. An item in the machine can cost between 5 cents and 1 dollar, in 5-cent increments (5,10,15,......90, 95, or 100), and the machine accepts only a single dollar bill to pay for the item. The user will provide the price and the program will output the price and calculate and output the total change and how many quarters, dimes and nickels need to be dispensed. DO...
Using ONLY toggle flip-flops. Simple vending machine is as follows; delivers a pack of gum once...
Using ONLY toggle flip-flops. Simple vending machine
is as follows; delivers a pack of gum once it receives 15 cents in
coin. Machine only take exact change, and only excepts dimes and
nickels.
3. Design the simple vending machine control circuit using toggle flip-flops. Show of your design process.
Altug's Coffee Shop decides to install an automatic coffee vending machine outside one of its stores...

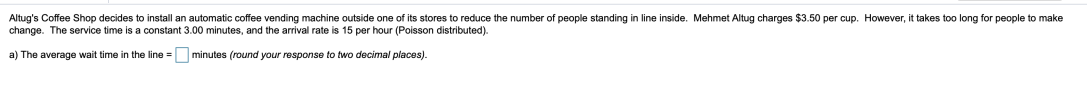

Altug's Coffee Shop decides to install an automatic coffee vending machine outside one of its stores to reduce the number of people standing in line inside. Mehmet Altug charges $3.50 per cup. However, it takes too long for people to make change. The service time is a constant 3.00 minutes, and the arrival rate is 15 per hour (Poisson distributed). a) The average wait time in the line = minutes (round your response to two decimal places).
