I am in need of assistance with the answer and full body diagram for the following...

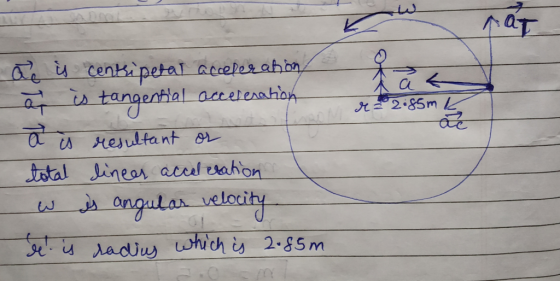

I am in need of assistance with the answer and full body diagram for the following question

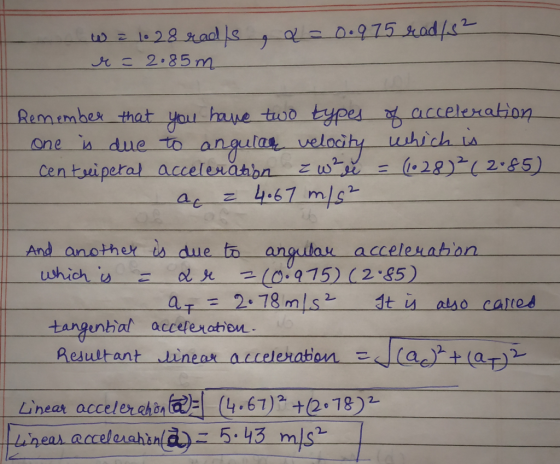

a child riding a merry go round that has an instantaneous angular speed of 1.28 rad/s and an angular acceleration on 0.975 rad/s^2. the child is standing 2.85 m from the center of the merry go round. what is the magnitude of the linear acceleration of the child
