Mercury (Hg) can be used in a barometer to measure air pressure, based on how tall...
Mercury (Hg) can be used in a barometer to measure air pressure, based on how tall a column of mercury can be supported by the pressure of the atmosphere or another gas sample. The barometric reading a specific day was 743.8 mm Hg. If the interior circumference of the tube holding the mercury is 9.82 mm, what is the mass of mercury in the tube (above the pool of mercury)? The column may be treated as a cylinder. Mercury has a density of 13.55 g/mL.
Homework Answers

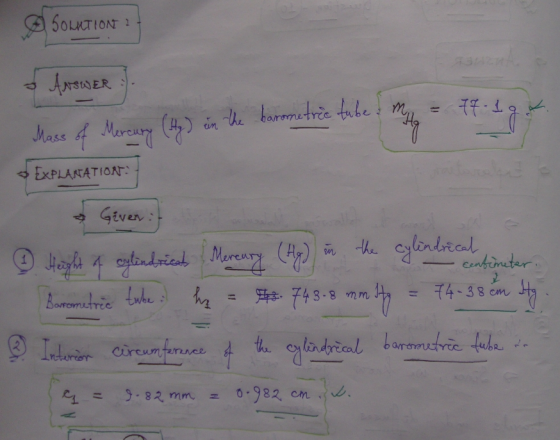

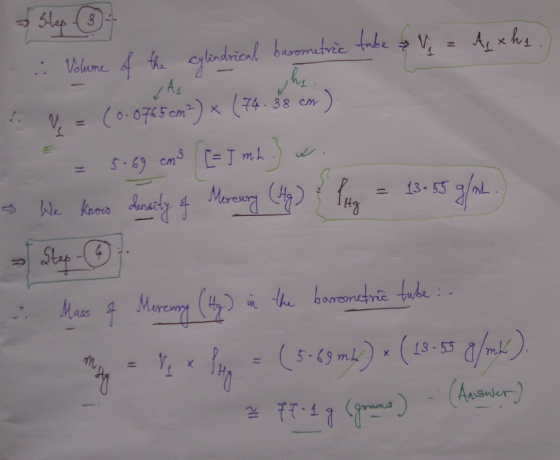

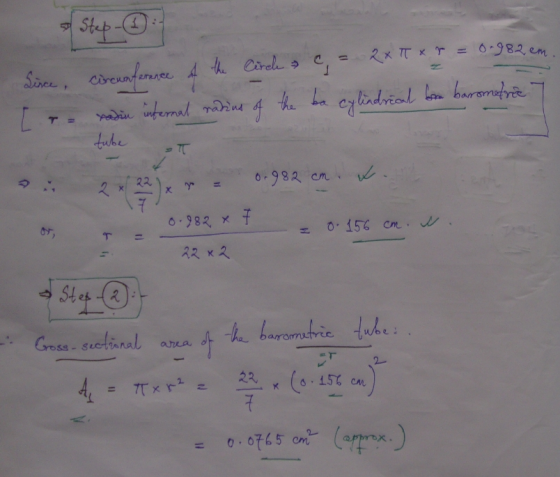

Following is the - complete Answer -&- Explanation - for the given Question - in...image format...
