Consider an MOS capacitor with a p+ poly-Si gate (EF = EV) and a p-type substrate...

Consider an MOS capacitor with a p+ poly-Si gate (EF = EV) and a p-type substrate with NA = 10^16 cm−3, tox = 15 nm, ni = 10^10 cm−3, T = 300 K, Es = 11.7, Eox = 3.9, EG(poly-Si) = EG(Si) = 1.12 eV. Determine the flatband voltage VFB and the normalized flatband capacitance CFB/Cox.

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

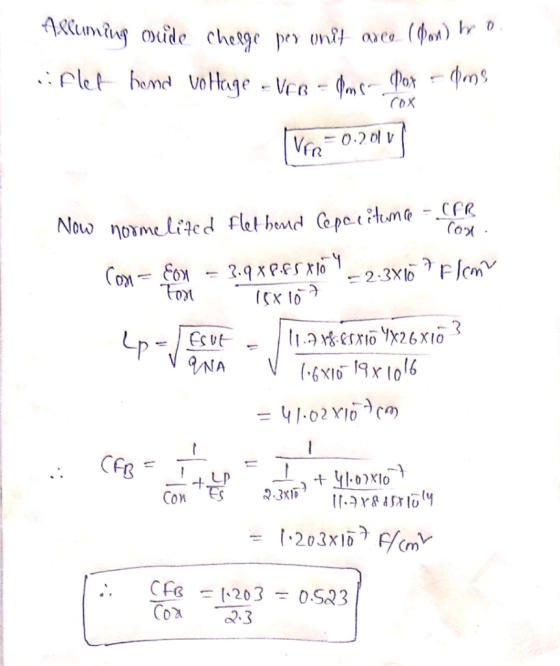

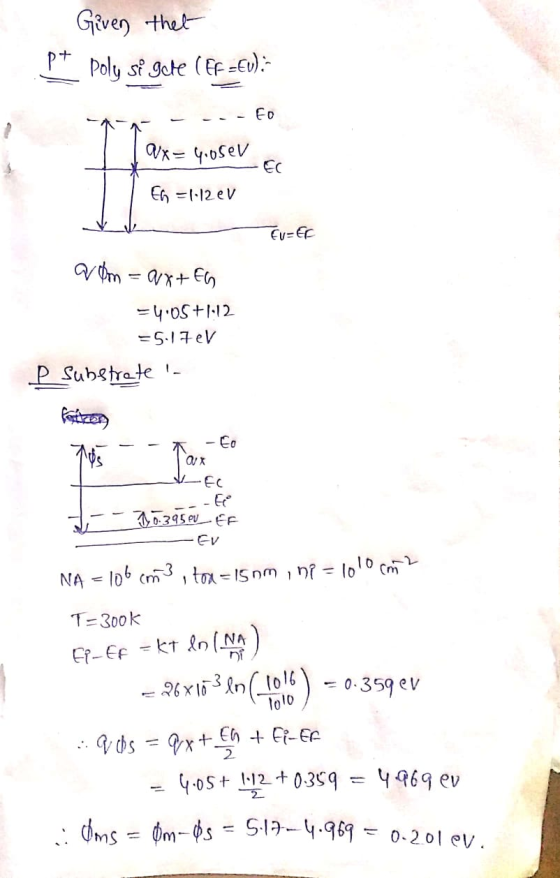

Answer #1

Add a comment

Answer 2
