A figure shows two charges of -q arranged symmetrically about the y axis. Each produces an...
A figure shows two charges of -q arranged symmetrically about the y axis. Each produces an electric field at P. Assume the point P is 2 meters above the origin, and d= 1 meter, with the absolute value of the charge q=4.5 uC

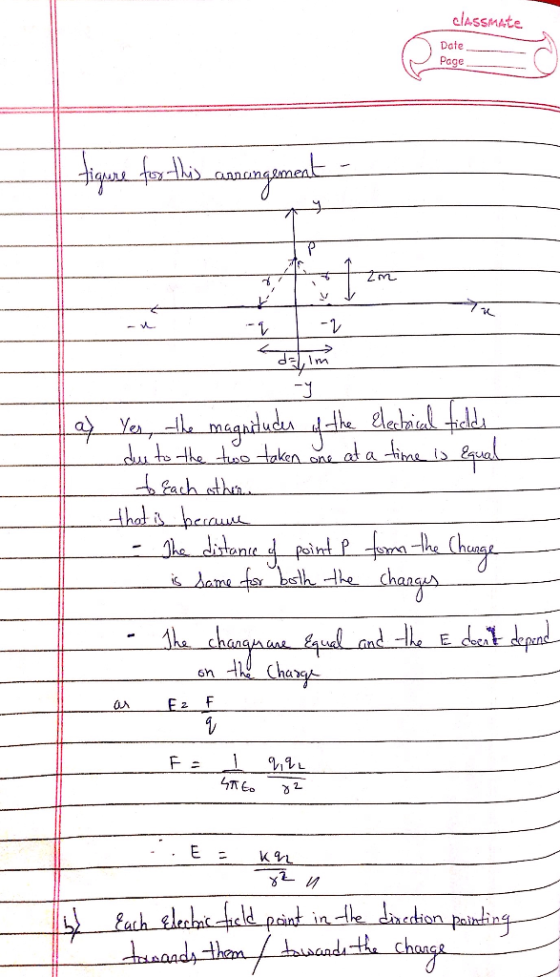

a- Are the magnitudes of the electrical fields equal? why or why not?
b- in what direction does each electrical field point?

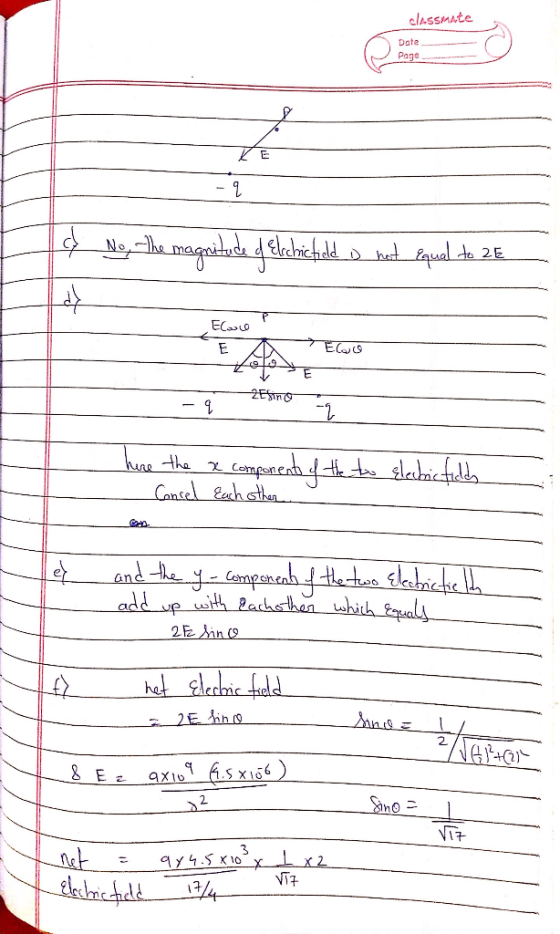

c- Is the magnitude of the electrical field equal 2 E if E is the magnitude of one of the fields?
d- Does the x components of the two electrical fields add or cancel?
e- Do the y components of the two electrical fields add or cancel?

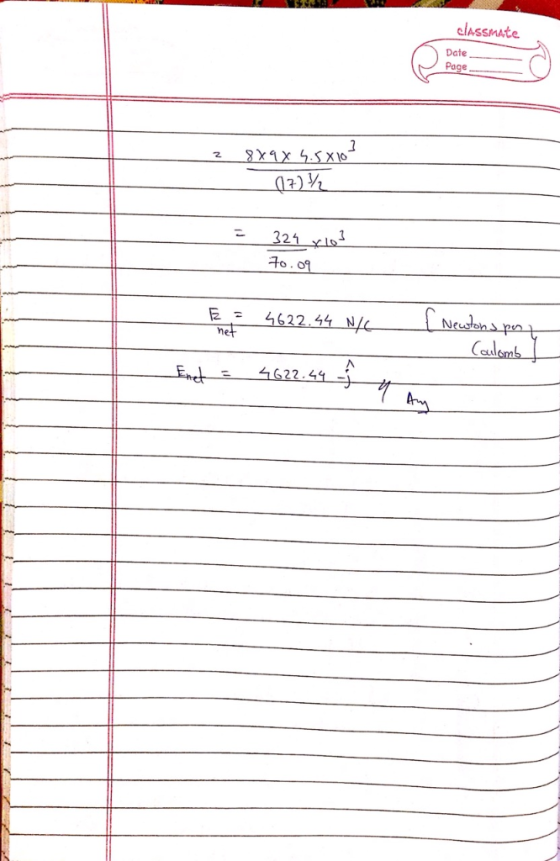

f- Compute the net electric field and write it in unit vector notation.
Homework Answers
Add Answer to:
A figure shows two charges of -q arranged symmetrically about
the y axis. Each produces an...
In Fig. 22-24, two particles +3q of charge -q are arranged symmetrically about the y axis; each produces an electric field at point P on that axis.
In Fig. 22-24, two particles +3q of charge -q are arranged symmetrically about the y axis; each produces an electric field at point P on that axis. (a) Are the magnitudes of the fields at P equal? (b) Is each electric field directed toward or away from the charge producing it? (c) Is the magnitude of the net electric field at P equal to the sum of the magnitudes E of the two field vectors (is it equal to 2E)?...
Two charges (dipole) of +q = +6.00 μC and −q = −6.00 μC along the y-axis,...
Two charges (dipole) of +q = +6.00 μC and −q = −6.00 μC along
the y-axis, separated by 3.00 m, as shown in the figure below.
Point P is located 4.00 m directly to the right of the positive
charge, as shown. The origin is located halfway between the
charges.
(a) At point P (test point), sketch and label the electric field
E+ due to the positive charge +q, and the electric field E - due to
the negative charge...
Consider the symmetrically arranged charges in the figure, in which q a = q b =...
Consider the symmetrically arranged charges in the figure, in which q a = q b = − 1.55 μC and q c = q d = + 1.55 μC . Four charges located at the corners of a square. Charge q subscript a is at the upper left corner. Charge q subscript b is at the upper right corner. Charge q subscript c is at the lower left corner. Charge q subscript d is at the lower right corner. A...
1. (a) Two particles of fixed negative charge -q are placed on a y axis at...
1. (a) Two particles of fixed negative charge -q are placed on a y axis at fixed positions of y = d and y = -d. (i) The electric field is probed at a point, P positioned at x = ad on the x-axis, where a is a variable. Illustrate and discuss the magnitudes and directions of electric field components at point P and also illustrate the net electric field at that point, of magnitude E. (ii) Starting from the...
Consider the symmetrically arranged charges in the figure, in which ga = %= -1.85 C and...
Consider the symmetrically arranged charges in the figure, in which ga = %= -1.85 C and q = = +1.85 C. Determine the direction of the electric field at the location of charge q. O down and right Oup O left Oright up and right Odown O up and left down and left Oright O up and right Odown O up and left down and left Calculate the magnitude of the electric field E at the location of a given...
two charges q1 = 2.00 uC and q2 = 6.10uC are located at points (0, -2.50...
two charges q1 = 2.00 uC and q2 = 6.10uC are located
at points (0, -2.50 cm) and (0, +2.50 cm).
What is the magnitude of the electric field at point P
located at (4.5, 0 cm), due to q1 alone?
what are the x and y components of the total electric
field at P?
what is the magnitude of the total electric field at
P?
Evaluate Feedba e,
1)Consider the symmetrically arranged charges in the figure, in which ?a=?b=−2.05 μC and ?c=?d=+2.05 μC ....
1)Consider the symmetrically arranged charges in the figure, in which ?a=?b=−2.05 μC and ?c=?d=+2.05 μC . Four charges located at the corners of a square. Charge q subscript a is at the upper left corner. Charge q subscript b is at the upper right corner. Charge q subscript c is at the lower left corner. Charge q subscript d is at the lower right corner. A fifth charge q is located at the exact center of the square. Determine the...
the ans. 92-+ 3.60 С. They are equdstart from the point P, which res on Two...
the ans. 92-+ 3.60 С. They are equdstart from the point P, which res on Two point charges are lying on the y as as in the figure: Q1--3.60 uc 0.700 m 31.0 P 0.700 m 41 31.0 31o 仂) Concepts (0) There is no charge at P in part a of the figure. Is there an electric fieid at P Yes No () what is the direction of the electric field at point P due to charge o counterclockwise...
Two charges are arranged as shown in Figure Q1.1. Charge q- -48 pC is located on...
Two charges are arranged as shown in Figure Q1.1. Charge q- -48 pC is located on the positive y axis at y-4.0 cm. Charge q,--100 pC is located on the positive x-axis at x-5.0 cm. Grades eople onferences 9,48 pC hat Time 4.0 cm 17 N 5,0㎝ 9:"-100 pc Figure Q1.1 | Question 1 1 pts Calculate the magnitude (in N/C) of E, the electric field at the origin due to q
a) Consider two separate systems, each with four charges of magnitude q arranged in a square...
a) Consider two separate
systems, each with four charges of magnitude q arranged in a square
of length L as shown above. Points a and c are in the center of
their squares while points b and d are half way between the lower
two charges. Select true or false for each statement. The electric
potential at b is zero. The electric potential at a is zero. The
electric field at c is zero. The electric potential at c is...
Two charges (dipole) of +q = +6.00 μC and −q = −6.00 μC along
the y-axis, separated by 3.00 m, as shown in the figure below.
Point P is located 4.00 m directly to the right of the positive
charge, as shown. The origin is located halfway between the
charges.
(a) At point P (test point), sketch and label the electric field
E+ due to the positive charge +q, and the electric field E - due to
the negative charge...
Consider the symmetrically arranged charges in the figure, in which ga = %= -1.85 C and q = = +1.85 C. Determine the direction of the electric field at the location of charge q. O down and right Oup O left Oright up and right Odown O up and left down and left Oright O up and right Odown O up and left down and left Calculate the magnitude of the electric field E at the location of a given...
two charges q1 = 2.00 uC and q2 = 6.10uC are located
at points (0, -2.50 cm) and (0, +2.50 cm).
What is the magnitude of the electric field at point P
located at (4.5, 0 cm), due to q1 alone?
what are the x and y components of the total electric
field at P?
what is the magnitude of the total electric field at
P?
Evaluate Feedba e,
the ans. 92-+ 3.60 С. They are equdstart from the point P, which res on Two point charges are lying on the y as as in the figure: Q1--3.60 uc 0.700 m 31.0 P 0.700 m 41 31.0 31o 仂) Concepts (0) There is no charge at P in part a of the figure. Is there an electric fieid at P Yes No () what is the direction of the electric field at point P due to charge o counterclockwise...
Two charges are arranged as shown in Figure Q1.1. Charge q- -48 pC is located on the positive y axis at y-4.0 cm. Charge q,--100 pC is located on the positive x-axis at x-5.0 cm. Grades eople onferences 9,48 pC hat Time 4.0 cm 17 N 5,0㎝ 9:"-100 pc Figure Q1.1 | Question 1 1 pts Calculate the magnitude (in N/C) of E, the electric field at the origin due to q
a) Consider two separate
systems, each with four charges of magnitude q arranged in a square
of length L as shown above. Points a and c are in the center of
their squares while points b and d are half way between the lower
two charges. Select true or false for each statement. The electric
potential at b is zero. The electric potential at a is zero. The
electric field at c is zero. The electric potential at c is...
