A 3 kg, 6 m long rod is supported on a knife edge at its midpoint....

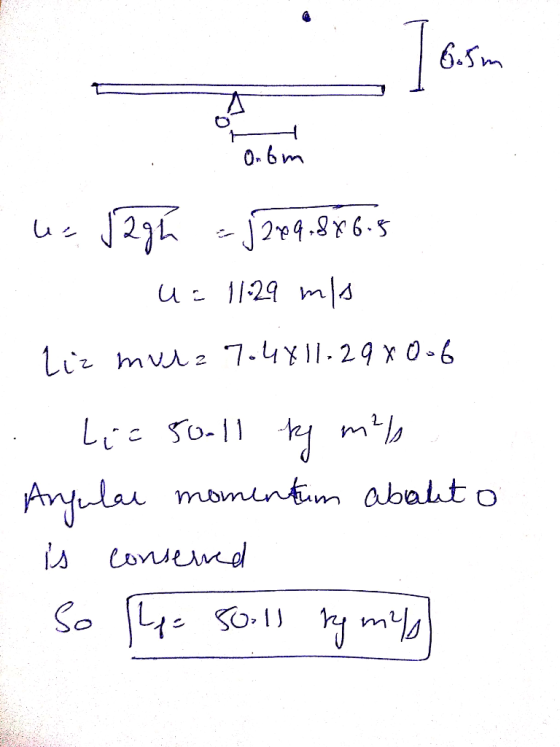

A 3 kg, 6 m long rod is supported on a knife edge at its midpoint. A 7.4 kg ball of clay is dropped from rest from a height of 6.5 m and makes a perfectly inelastic collision with the rod 0.6 m from the point of support. Find the magnitude of the angular momentum of the rod and clay system about the point of support immediately after the inelastic collision. The acceleration of gravity is 9.81 m/s 2 . Answer in units of J · s.
Homework Answers
Add Answer to:
