Three positive point charges of 2 x 10 ^ -7C, 1 x 10 ^ -7C and...

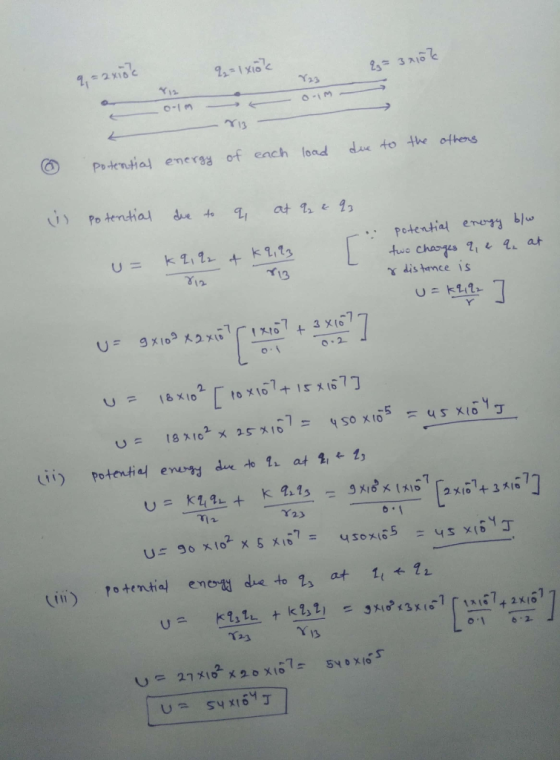

Three positive point charges of 2 x 10 ^ -7C, 1 x 10 ^ -7C and 3 x 10 ^ -7C are in a straight line, with the two external charges. 0.1 m distance (a) Calculate the potential energy of each load due to the others
