Two long parallel transmission lines 39.0 cm apart carry 30.0 A and 79.5 A currents. a)...

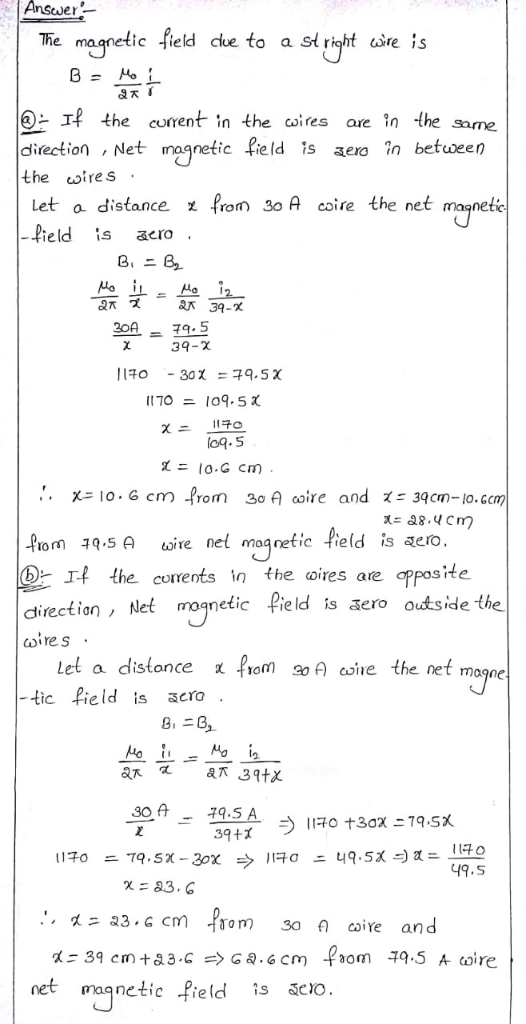

Two long parallel transmission lines 39.0 cm apart carry 30.0 A and 79.5 A currents.
a) Find all locations where the net magnetic field of the two wires is zero if these currents are in the same direction. Please, enter your answer as a distance from the wire carrying 30.0 A.
b) Find all locations where the net magnetic field of the two wires is zero if these currents are in opposite directions.
Please, enter your answer as two distances, the first distance from the wire carrying 30.0 A, and the second distance from the wire carrying 79.5 A.
Homework Answers
Add Answer to:
Two long parallel transmission lines 39.0 cm apart carry 30.0 A
and 79.5 A currents.
a)...
Two long parallel transmission lines 39.0 cm apart carry 29.5 A and 74.5 A currents. A)...
Two long parallel transmission lines 39.0 cm apart carry 29.5 A and 74.5 A currents. A) Find all locations where the net magnetic field of the two wires is zero if these currents are in the same direction. Please, enter your answer as a distance from the wire carrying 29.5 A B) Find all locations where the net magnetic field of the two wires is zero if these currents are in opposite directions. Please, enter your answer as two distances,...
Two long parallel transmission lines 43.5 cm apart carry 23.5 A and 77.5 A currents. A)...
Two long parallel transmission lines 43.5 cm apart carry 23.5 A and 77.5 A currents. A) Find all locations where the net magnetic field of the two wires is zero if these currents are in the same direction. B) Find all locations where the net magnetic field of the two wires is zero if these currents are in opposite directions. Please, enter your answer as two distances, the first distance from the wire carrying 23.5 A , and the second...
Two long, parallel transmission lines, 42.0 cmapart, carry 25.0-A and 74.0-A currents. A: Find all locations...
Two long, parallel transmission lines, 42.0 cmapart, carry 25.0-A and 74.0-A currents. A: Find all locations where the net magnetic field of the two wires is zero if these currents are in the same direction. Assume that the positive x axis is directed from the 74.0-A wire to the 25.0-A wire perpendicular to the wires, with the origin on the 74.0-A wire. B: Find all locations where the net magnetic field of the two wires is zero if these currents...
Two long, parallel transmission lines, d = 40.0 cm apart, carry I1 = 25.0 A and...
Two long, parallel transmission lines, d = 40.0 cm apart, carry
I1 = 25.0 A and I2 = 75.0 A.
Don't do part A, only parts D-F.
2. Two long, parallel transmission lines, d = 40.0 cm apart, carry 11 = 25.0 A and 12 = 75.0 A. We are to find all locations where the net magnetic field due to the two wires is zero if these currents are in: i) the same direction and ii) the opposite direction....
Please show all work. 2. Two parallel transmission lines are 75cm apart and carry currents of...
Please show all work.
2. Two parallel transmission lines are 75cm apart and carry currents of 11 35A and I2 -15A. (a) (5 points) Draw the magnetic field around each wire. I2 (b) (10 points) At what distance, r, from the top wire is the net magnetic field of the two wires zero 1 35 A d75 cm 12 15 A
Two long, parallel wires carry currents of I1 = 4.80 A and I2 = 1.80 A...
Two long, parallel wires carry currents of I1 = 4.80
A and I2 = 1.80 A in opposite directions (see figure
below). The wire 1 is placed at y = + 2.80 cm and wire 2 is at y =
- 2.80 cm. Find the location on y-axis where the net magnetic field
due to these two current carrying wires is zero. ** my answer was
wrong and I can't figure out how to correctly solve this**
Two long, parallel...
i nerd help 5. Two long parallel wires 30.0 cm apart carry /,= 25A and 1,...
i nerd help
5. Two long parallel wires 30.0 cm apart carry /,= 25A and 1, = 8.0 A currents perpendicu wires 30.0 cm apart carry = 25.4 and 804 currents perpendicular to the plane of the paper, as shown (a). Show the directions of the magnetic fields currents, and /, produce at point P.(pos. (b) Calculate the magnitude of the magnetic field current produces at point P. (spis) (c) Calculate the magnitude of the magnetic field current /, produces...
Consider two long and parallel current carrying wires that are a distance 3.00 m away from...
Consider two long and parallel current carrying wires that are a distance 3.00 m away from each other, and carrying 78.0 mA and 30.0 mA currents. Part A Assume that the origin of the coordinate system is on the 30.0 mA wire and its positive x axis is directed towards the 78.0 mA wire that is perpendicular to the wires. If these currents are in the opposite direction, find all locations where the net magnetic field of the two wires...
The magnetic field 39.0 cm away from a long, straight wire carrying current 4.00 A is...
The magnetic field 39.0 cm away from a long, straight wire carrying current 4.00 A is 2050 nT. (a) At what distance is it 205 nT? cm (b) At one instant, the two conductors in a long household extension cord carry equal 4.00-A currents in opposite directions. The two wires are 3.00 mm apart. Find the magnetic field 39.0 cm away from the middle of the straight cord, in the plane of the two wires. nT (c) At what distance...
2. Two long straight parallel wires separated by a distance of 20 cm carry currents of...
2. Two long straight parallel wires separated by a distance of 20 cm carry currents of 30 A and 40 A in opposite directions. What is the magnitude of the resulting magnetic field at a point that is 15 cm from the wire carrying the 30 A current and 25 cm from the other wire?
Two long, parallel transmission lines, d = 40.0 cm apart, carry
I1 = 25.0 A and I2 = 75.0 A.
Don't do part A, only parts D-F.
2. Two long, parallel transmission lines, d = 40.0 cm apart, carry 11 = 25.0 A and 12 = 75.0 A. We are to find all locations where the net magnetic field due to the two wires is zero if these currents are in: i) the same direction and ii) the opposite direction....
Please show all work.
2. Two parallel transmission lines are 75cm apart and carry currents of 11 35A and I2 -15A. (a) (5 points) Draw the magnetic field around each wire. I2 (b) (10 points) At what distance, r, from the top wire is the net magnetic field of the two wires zero 1 35 A d75 cm 12 15 A
Two long, parallel wires carry currents of I1 = 4.80
A and I2 = 1.80 A in opposite directions (see figure
below). The wire 1 is placed at y = + 2.80 cm and wire 2 is at y =
- 2.80 cm. Find the location on y-axis where the net magnetic field
due to these two current carrying wires is zero. ** my answer was
wrong and I can't figure out how to correctly solve this**
Two long, parallel...
i nerd help
5. Two long parallel wires 30.0 cm apart carry /,= 25A and 1, = 8.0 A currents perpendicu wires 30.0 cm apart carry = 25.4 and 804 currents perpendicular to the plane of the paper, as shown (a). Show the directions of the magnetic fields currents, and /, produce at point P.(pos. (b) Calculate the magnitude of the magnetic field current produces at point P. (spis) (c) Calculate the magnitude of the magnetic field current /, produces...
Consider two long and parallel current carrying wires that are a distance 3.00 m away from each other, and carrying 78.0 mA and 30.0 mA currents. Part A Assume that the origin of the coordinate system is on the 30.0 mA wire and its positive x axis is directed towards the 78.0 mA wire that is perpendicular to the wires. If these currents are in the opposite direction, find all locations where the net magnetic field of the two wires...
2. Two long straight parallel wires separated by a distance of 20 cm carry currents of 30 A and 40 A in opposite directions. What is the magnitude of the resulting magnetic field at a point that is 15 cm from the wire carrying the 30 A current and 25 cm from the other wire?
