A block is at rest on a horizontal frictionless surface. Three horizontal forces are exerted on...

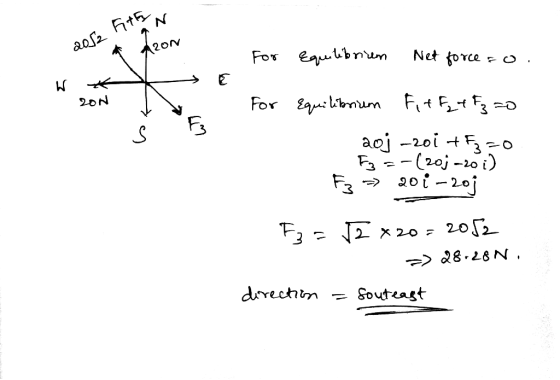

A block is at rest on a horizontal frictionless surface. Three horizontal forces are exerted on the box, and the box remains at rest. The first force is 20 N toward the North. The second force is 20 N toward the West. What is the magnitude and direction of the third horizontal force?
Answer format:
___ N toward the _____ (ex: Northwest, Southeast)
Homework Answers
Add Answer to:
A block is at rest on a horizontal frictionless surface. Three
horizontal forces are exerted on...
7) A 4.0-kg block is on a frictionless horizontal surface. The block is at rest when,...
7) A 4.0-kg block is on a frictionless horizontal surface. The block is at rest when, at t = 0, a force (magnitude F = 8.3 N) acting at an angle of 38° above the horizontal is applied to the block. At what rate is the force F doing work at t = 3.0 s?
A block with a mass of m=37 kg rests on a frictionless surface and is subject to two forces acting on it
Problem 5: A block with a mass of m=37 kg rests on a frictionless surface and is subject to two forces acting on it. The first force is directed in the negative x-direction with a magnitude of F1=8.5 N. The second has a magnitude of F2 = 19.25 N and acts on the body at an angle θ = 17° measured from horizontal, as shown.Part (a) Please use the interactive area below to draw the Free Body Diagram for this...
A 3.1 kg block is initially at rest on a horizontal frictionless surface when a horizontal...
A 3.1 kg block is initially at rest on a horizontal frictionless surface when a horizontal force in the positive direction of an x axis is applied to the block. The force is given by F(x) = (6.8-x^2) i N, where x is in meters and the initial position of the block is x = 0. (a) What is the kinetic energy of the block as it passes through x = 3.9 m? (b) What is the maximum kinetic energy...
3. A block is on a frictionless table, on earth. The block accelerates at 3.0 m/...
3. A block is on a frictionless table, on earth. The block accelerates at 3.0 m/ when a 20 N horizontal force is applied to it. The block and table are set up on the Moon where the acceleration due to gravity is 1.62 m/s2. The weight of the block on the Moon is closest to 4. As shown in the figure, a 10-kg block on a perfectly smooth horizontal table is connected by a horizontal string to a 63-kg...
A horizontal force of 40 N acting on a block on a frictionless level surface produces...
A horizontal force of 40 N acting on a block on a frictionless level surface produces an acceleration of 2.5 m/s2. A second block, with a mass of 4.0 kg, is dropped onto the first. What is the magnitude of the acceleration of the combination of blocks if the same force continues to act? (Assume that the second block does not slide on the first block.)
Two constant forces are applied to a 15 kg block that is initially at rest on...
Two constant forces are applied to a 15 kg block that is
initially at rest on a frictionless and horizontal surface. If
force A is 8 N and force B is 16 N, what is the magnitude of the
displacement (in m) of the object 9s after the forces are
applied?
FA FB
Four boxes are on a frictionless horizontal surface: M1 = 1.98 kg, M2 = 8.93 kg,...
Four boxes are on a frictionless horizontal surface: M1 = 1.98 kg, M2 = 8.93 kg, M3 = 1.16 kg, M4 = 7.49 kg. Horizontal force 39.8 N is applied to the first box, and they all accelerate, Find F23, the magnitude of the force with which the second box pushes on the third box, in N.
Block A, with mass mA, is initially at rest on a frictionless horizontal floor. Block B,...
Block A, with mass mA, is initially at rest on a frictionless horizontal floor. Block B, with mass mB, is initially at rest on the horizontal top surface of A. The coefficient of static friction between the two blocks is μs. Block A is pulled with a horizontal force. What is the minimum magnitude of the force that causes Block A to slide out from under B? Write the expression in terms of the given variables.
) A 3.0-kilogram steel block is at rest on a frictionless horizontal surface
7.) A 3.0-kilogram steel block is at rest on a frictionless horizontal surface. A 1.0 kilogram lump of clay is propelled horizontally at 6.0 meters per second toward the block. Upon collion, the clay and steel block stick together and move to the right with a speed ofa. 1.5 m/s b. 2.0 m/s c. 3.0 m/s d. 6.0 m/s5.) A 600-newton man climbing a rope a distance of 2 meters in 1 second develops power at the rate of a....
The diagram below shows a block of mass m=2.00kg on a frictionless horizontal surface, as seen...
The diagram below shows a block of mass m=2.00kg on a frictionless horizontal surface, as seen from above. Three forces of magnitudes F1=4.00N, F2=6.00N, and F3=8.00N are applied to the block, initially at rest on the surface, at angles shown on the diagram. (Figure 1) In this problem, you will determine the resultant (total) force vector from the combination of the three individual force vectors. All angles should be measured counterclockwise from the positive x axis (i.e., all angles are...
7) A 4.0-kg block is on a frictionless horizontal surface. The block is at rest when, at t = 0, a force (magnitude F = 8.3 N) acting at an angle of 38° above the horizontal is applied to the block. At what rate is the force F doing work at t = 3.0 s?
Two constant forces are applied to a 15 kg block that is
initially at rest on a frictionless and horizontal surface. If
force A is 8 N and force B is 16 N, what is the magnitude of the
displacement (in m) of the object 9s after the forces are
applied?
FA FB
