A 5.0 μF capacitor with initial charge of 24 μC begins discharging at t=0 through a...

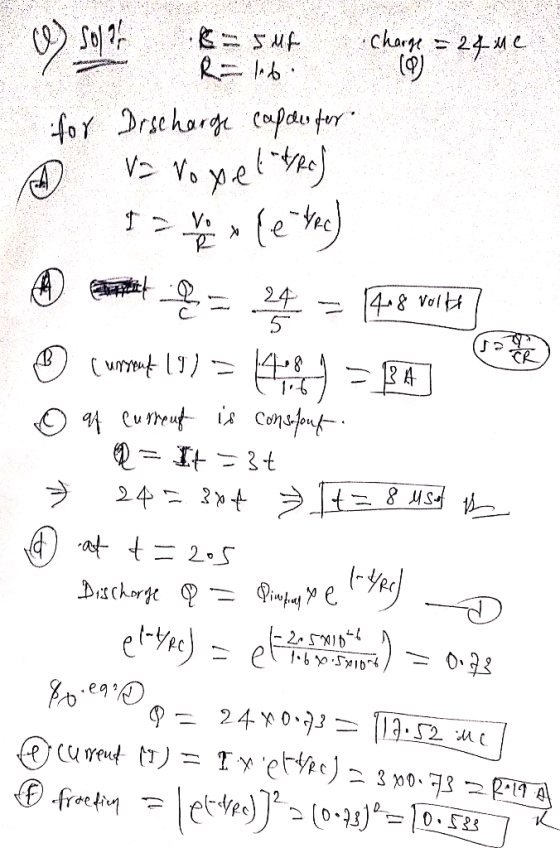

A 5.0 μF capacitor with initial charge of 24 μC begins discharging at t=0 through a 1.6Ω Resistor. (a) Find the initial potential, the initial Current,how long would it take to fully dischargeif the current remained Constant? At t=2.5μs, FInd the Charge remaining (18μC), the Current and the fraction of the initial stored energy remaining. Where is the rest of it?
Homework Answers
Add Answer to:
A 5.0 μF capacitor with initial charge of 24 μC begins
discharging at t=0 through a...
A 14.1 μF capacitor is charged to a potential of 45.0 V and then discharged through...
A 14.1 μF capacitor is charged to a potential of 45.0 V and then discharged through a 75.0 Ω resistor. (a) How long after discharge begins does it take for the capacitor to lose 90.0% of the following? (i) its initial charge? _______s (ii) its initial energy? ______s (b) What is the current through the resistor at both times in part (a)? (i) at tcharge ? _________ A (ii) at tenergy ? ________A
A 40.0-μF capacitor has an initial charge of 300.0 μC. 1. If a resistance of 40.0...
A 40.0-μF capacitor has an initial charge of 300.0 μC. 1. If a resistance of 40.0 Ω is connected across it, what is the magnitude of the initial current through the resistor? (Give answer in MA units).
A 18.0-μF capacitor is charged to a potential of 50.0 V and then discharged through a...
A 18.0-μF capacitor is charged to a potential of 50.0 V and then discharged through a 245-Ω resistor. How long does it take the capacitor to lose half of its charge? How long does it take the capacitor to lose half of its stored energy?
Tipler6 24.P.029. A 11.4 μF capacitor and a 17.5 μF capacitor are connected in parallel across...
Tipler6 24.P.029. A 11.4 μF capacitor and a 17.5 μF capacitor are connected in parallel across the terminals of a 6.0 V battery. (a) What is the equivalent capacitance of this combination? μF (b) What is the potential difference across each capacitor? V (11.4 μF capacitor) V (17.5 μF capacitor) (c) Find the charge on each capacitor. μC (11.4 μF capacitor) μC (17.5 μF capacitor) (d) Find the energy stored in each capacitor. μJ (11.4 μF capacitor) μJ (17.5 μF...
A 12.0-μF capacitor is charged to a potential of 50.0V and then discharged through a 175-Ω...
A 12.0-μF capacitor is charged to a potential of 50.0V and then discharged through a 175-Ω resistor How long does it take the capacitor to lose (a) half of its charge and (b) half of its stored energy?
A 20 μF capacitor initially charged to 30 μC is discharged through a 1.5 kΩ resistor....
A 20 μF capacitor initially charged to 30 μC is discharged through a 1.5 kΩ resistor. How long does it take to reduce the capacitor's charge to 10 μC?
A 30.0 μF capacitor initially charged to 30.0 μC is discharged through a 2.20 kΩ resistor....
A 30.0 μF capacitor initially charged to 30.0 μC is discharged through a 2.20 kΩ resistor. How long does it take to reduce the capacitor's charge to 15.0 μC ?
A 30.0 μF capacitor initially charged to 20.0 μC is discharged through a 2.60 kΩ resistor....
A 30.0 μF capacitor initially charged to 20.0 μC is discharged through a 2.60 kΩ resistor. How long does it take to reduce the capacitor's charge to 10.0 μC ?
A 30.0 μF capacitor initially charged to 30.0 μC is discharged through a 2.50 kΩ resistor.
A 30.0 μF capacitor initially charged to 30.0 μC is discharged through a 2.50 kΩ resistor. How long does it take to reduce the capacitor's charge to 15.0 μC?
A 15 μF capacitor initially charged to 30 μC is discharged through a 1.3 kΩ resistor....
A 15 μF capacitor initially charged to 30 μC is discharged through a 1.3 kΩ resistor. How long does it take to reduce the capacitor's charge to 10 μC?
