A piece of machinery is suspended using two vertical solid cylindrical bars. The bars are 10 mm in diameter and 300 mm long. The mechanical properties of the material from which the bars are made are listed in the table below
| Property | Value |
| Elastic Modulus (GPa) | 200 |
| Yield strength (MPa) | 300 |
| Tensile strength (MPa) | 450 |
| Elongation in 50 mm (%) | 20 |

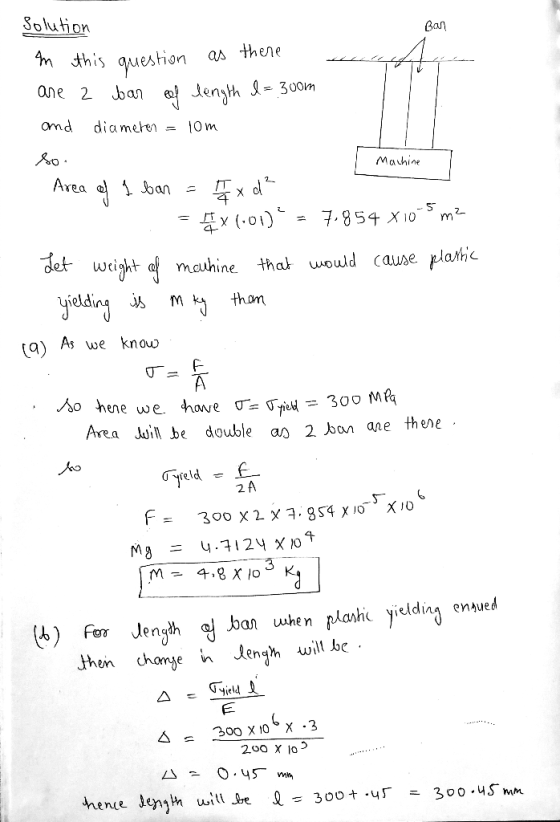

(a) Calculate the weight (in kg) of machinery that would cause
plastic yielding of the supporting bars. [4.8 x 10-3
kg]
(b) Calculate the length of the bars when plastic yielding ensued. [300.45 mm]

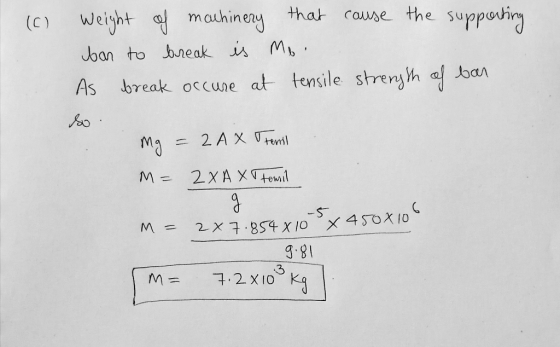

(c) Calculate the weight (in kg) of machinery that would cause the supporting bars to break. [7.2 x 103kg]
Homework Answers
In this we have to take the value of stress carefully as break of bar occure at tensile strenght and plastic deformation occur at yield strength.
