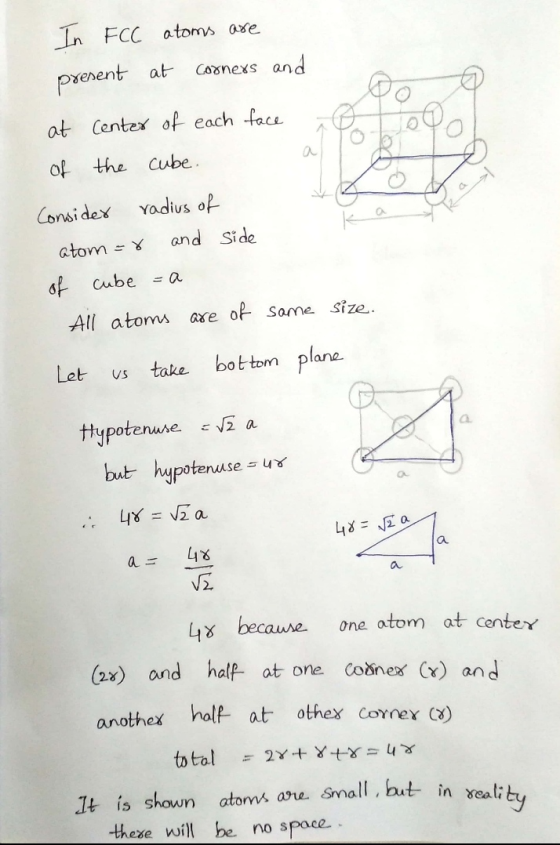

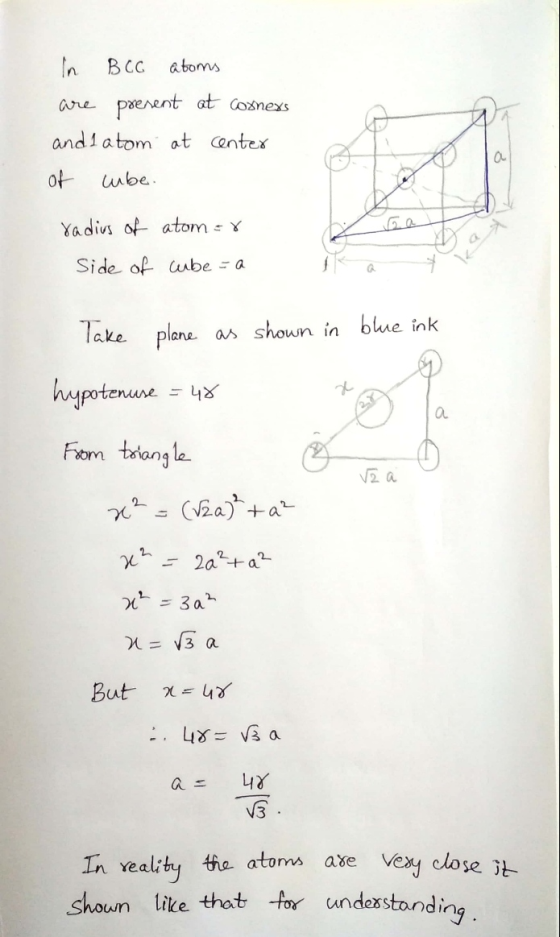

I do not understand why a face centered cubic has an a= 4r/sqrt2 and why a...
I do not understand why a face centered cubic has an a= 4r/sqrt2 and why a body centered cubic has an a of 4r/sqrt3. I know it is geometric, but I have not taken math in a very long time, and need it explained fairly simply, if possible.
Homework Answers
