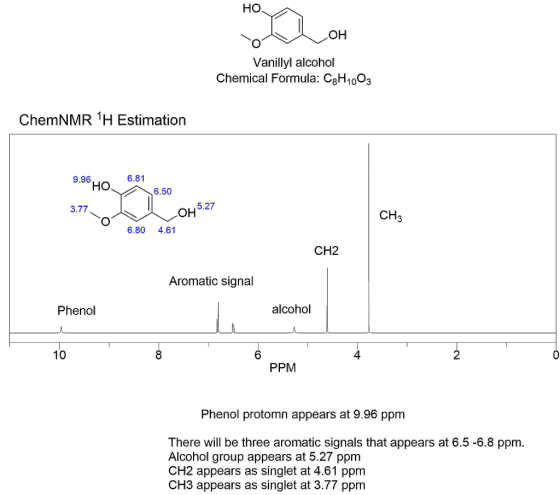

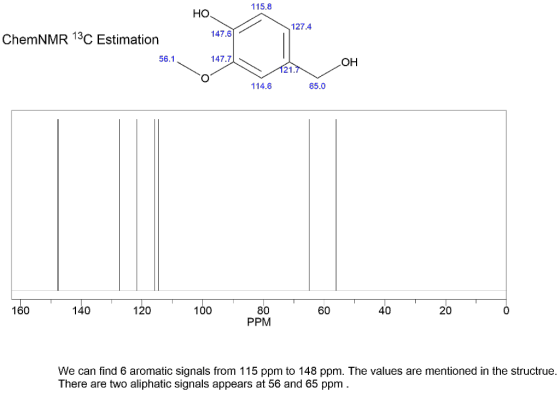

sketch a 1H-NMR and a 13C-NMR for vanillic alcohol and label each peak.

Question

Question

science chemistry

Answer 1

Answer #1

Answer 2
