A convex (converging) lens has a focal length of 13.5 cm. Where on the lens axis...

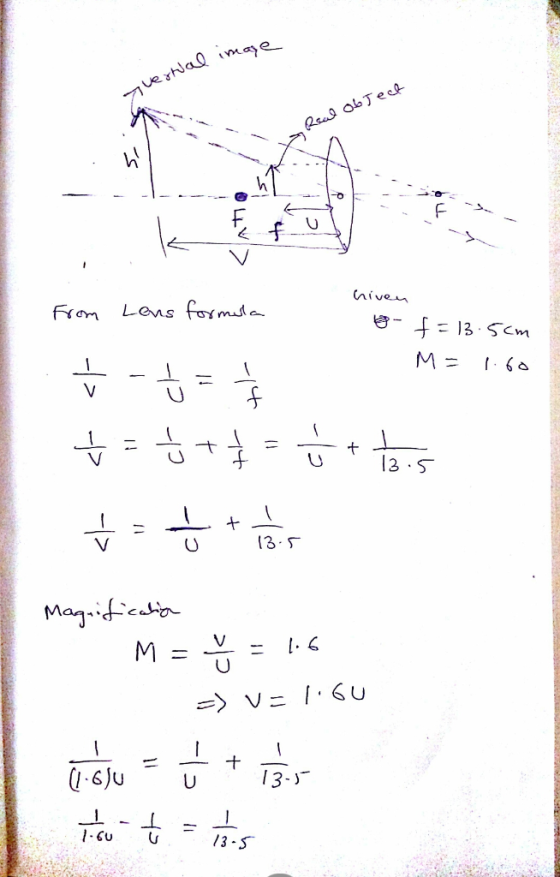

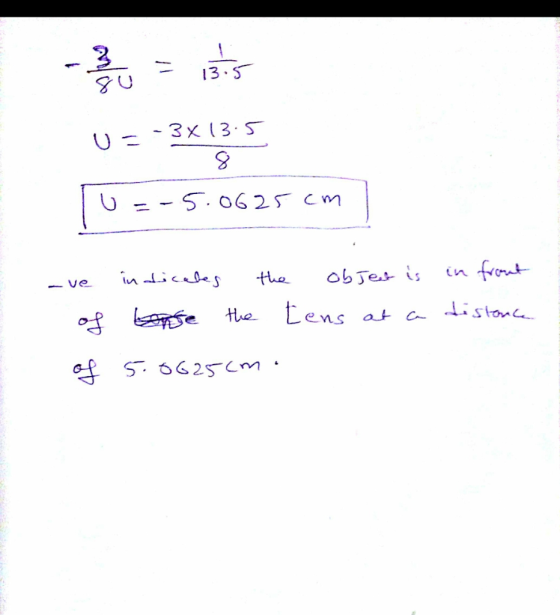

A convex (converging) lens has a focal length of 13.5 cm. Where on the lens axis should an object be placed in order to get a virtual, enlarged image with a magnification of 1.60?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
