A 3-µC point charge is inside a metal spherical shell of inner radius 2.0 cm and...

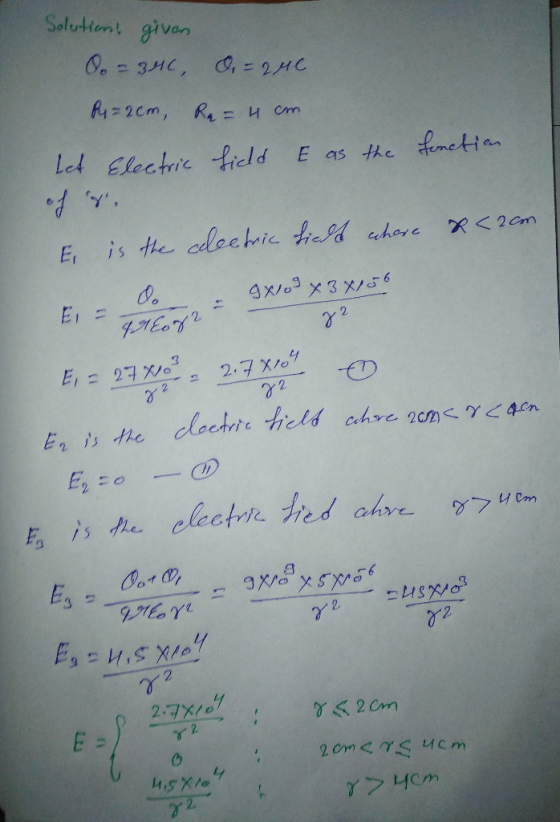

A 3-µC point charge is inside a metal spherical shell of inner radius 2.0 cm and outer radius 4.0 cm that has a net charge of 2-µC on it. Determine the electric field everywhere as a function of r, as well as the surface charge densities on the shell.
Homework Answers
Add Answer to:
A 3-µC point charge is inside a metal spherical shell of inner
radius 2.0 cm and...
A spherical shell with a charge of 3.8 µC uniformly distributed throughout the shell has an...
A spherical shell with a charge of 3.8 µC uniformly distributed throughout the shell has an inner surface with radius of 4.0 cm and outer surface with radius of 5.0 cm. Use Gauss’s Law to find the electric field a. 1.0 cm from the inner surface, inside the shell. b. halfway between the two surfaces. c. 5.0 cm from the outer surface, outside the shell.
A point charge +Q is placed at the center of a spherical metal shell of inner...
A point charge +Q is placed at the center of a spherical metal shell of inner radius R1 and outer radius R2. The net charge on the metal shell is -3Q. Part A - How much charge is there on the outer surface of the shell? Part B - What is the magnitude of E field at point A located at r = 2R2?
A perfectly conducting spherical shell has an inner radius a and an outer radius b as...
A perfectly conducting spherical shell has an inner radius a and an outer radius b as shown below. The region r< a is hollow. The entire shell has a net charge of Q IC] on it because it has been stuck by lightning. Determine the electric field vector in all three regions: r<a, a< r b, and r > b. Determine the surface charge densities po and po on the two metal surfaces. Explain how this problem illustrates the Faraday...
A conducting spherical shell has inner radius r1 = 7.0 cm, outer radius r2 = 12.0...
A conducting spherical shell has inner radius r1 = 7.0 cm, outer radius r2 = 12.0 cm. A +3 uC point charge is placed at the center. A charge of Q=+4 uC is put on the conductor. a) What is the charge on the inner and outer surface of the shell? b)What is the electric field on the inside and outside of the shell?
Problem 4-A point charge q 9.0 nC is placed inside a spherical shell made of metal,...
Problem 4-A point charge q 9.0 nC is placed inside a spherical shell made of metal, of inner radius a 3.0 m and outer radius b -5.0 m, that is charged with qp-6.0 nC. Find the electric field (magnitude and direction) at a distance (a) r 1.5 m (b) r2 4.0 m from the center. (c) Find the charges on the inner and outer surfaces of the spherical shell
A positive point charge of magnitude 2.6 HC is at the center of an uncharged spherical...
A positive point charge of magnitude 2.6 HC is at the center of an uncharged spherical conducting shell of inner radius 65 cm and outer radius 110 cm (a) Find the charge densities on the inner and outer surfaces of the shel -0.49 0.17 μC/m2 (inner) μC ', /m2 (outer) Find the total charge on each surface 2.6 2.6 HC (inner) IC (outer) (b) Find the electric field everywhere Er 65 cm 23374 E65 < r< 110 cm0 r2 Er110...
A conducting spherical shell of inner radius a= 50.0 cm and outer radius b= 60.0 cm...
A conducting spherical shell of inner radius a= 50.0 cm and
outer radius b= 60.0 cm has a net charge Q1= -7.00 μC. A second
larger conducting shell of inner radius c= 70.0 cm and outer radius
d= 80.0 cm has a net charge of Q2= +3.00 μC, and it is concentric
with the first shell as shown in the figure to the left. What is
the magnitude and direction of the electric field as a function of
distance from...
A thick insulating spherical shell has inner radius a and outer radius b. The shell carries...
A thick insulating spherical shell has inner radius a and outer radius b. The shell carries a uniform volume charge density ρ0. (a) Consider a spherical Gaussian surface of radius r concentric with the shell. How much charge is enclosed in the Gaussian surface for r < a, a < r < b, and r > b? (b) What does symmetry dictate about the magnitude and direction of the electric field? (c) Determine the electric field everywhere (i.e., what is...
A small conducting spherical shell with inner radius a and outer radius b is concentric with a larger conducting spherical shell with inner radius c and outer radius d.
A small conducting spherical shell with inner radius a and outer radius b is concentric with a larger conducting spherical shell with inner radius c and outer radius d. The inner shell has total charge +2q, and the outer shell has charge +4q. (a) Calculate the magnitude of the electric field in terms of q and the distance r from the common center of the two shells for r < a, b < r < c, and r > d. Note...
A small conducting spherical shell with inner radius a and outer radius b is concentric with a larger conducting spherical shell with inner radius c and outer radius d.
A small conducting spherical shell with inner radius a and outer radius b is
concentric with a larger conducting spherical shell with inner
radius c and outer radius d. The
inner shell has a total charge of -1q and the
outer shell has a total charge of +3q. The total charge on the inner surface of the large shell is zero. The total charge on the inner surface of the small shell is -1q. The radial component of the electric field in the region...
A perfectly conducting spherical shell has an inner radius a and an outer radius b as shown below. The region r< a is hollow. The entire shell has a net charge of Q IC] on it because it has been stuck by lightning. Determine the electric field vector in all three regions: r<a, a< r b, and r > b. Determine the surface charge densities po and po on the two metal surfaces. Explain how this problem illustrates the Faraday...
Problem 4-A point charge q 9.0 nC is placed inside a spherical shell made of metal, of inner radius a 3.0 m and outer radius b -5.0 m, that is charged with qp-6.0 nC. Find the electric field (magnitude and direction) at a distance (a) r 1.5 m (b) r2 4.0 m from the center. (c) Find the charges on the inner and outer surfaces of the spherical shell
A positive point charge of magnitude 2.6 HC is at the center of an uncharged spherical conducting shell of inner radius 65 cm and outer radius 110 cm (a) Find the charge densities on the inner and outer surfaces of the shel -0.49 0.17 μC/m2 (inner) μC ', /m2 (outer) Find the total charge on each surface 2.6 2.6 HC (inner) IC (outer) (b) Find the electric field everywhere Er 65 cm 23374 E65 < r< 110 cm0 r2 Er110...
A conducting spherical shell of inner radius a= 50.0 cm and
outer radius b= 60.0 cm has a net charge Q1= -7.00 μC. A second
larger conducting shell of inner radius c= 70.0 cm and outer radius
d= 80.0 cm has a net charge of Q2= +3.00 μC, and it is concentric
with the first shell as shown in the figure to the left. What is
the magnitude and direction of the electric field as a function of
distance from...
