Jane puts her 1.6-kg textbook against the wall puts her hand against the face and leans...

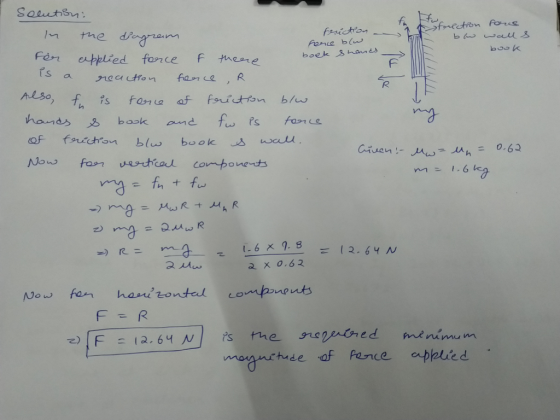

Jane puts her 1.6-kg textbook against the wall puts her hand against the face and leans into it. The coefficient of static friction between the book and her hand is 0.62. The coefficient of static friction between the book and the wall is the same. What is the minimum magnitude of force she must apply to the book to keep it from sliding down the wall?
Homework Answers
Add Answer to:
Jane puts her 1.6-kg textbook against the wall puts her hand
against the face and leans...
A 48.2 kg, 3.1 m uniform ladder leans against a frictionless wall. A 97.8 kg person...
A 48.2 kg, 3.1 m uniform ladder leans against a frictionless wall. A 97.8 kg person is standing on the ladder down 0.96 m from the top of the ladder. The ladder makes an angle of 57 degrees with the horizontal. What is the minimum coefficient of static friction between the ladder and the ground so that the ladder does not slip?
5. A uniform 8.0 m long ladder of mass 10.0 kg leans against a wall. The...
5. A uniform 8.0 m long ladder of mass 10.0 kg leans against a wall. The wall is smooth and the floor is rough. The coefficient of static friction between the ladder and the floor is 0.35 (i) Draw a sketch and free body diagram. (ii) Find the reaction force from the wall. (iii) Find the normal force at the ground. (iv) Find the minimum angle at which the ladder does not slip.
only A thank you A professor with an eraser in her hand leans against a blackboard...
only A thank you
A professor with an eraser in her hand leans against a blackboard as shown in the figure below. Her arm makes an angle of 30 Degree with the horizontal, and the force F = 50 N The coefficient of static friction between the craser nd the blackboard is mu s = 0.15 Does the craser slip? It was a dark and stormy night, and a driver advancing a long an icy road - assume that the...
III. A 3.0 m long and 2.0 m wide carton of mass 100 kg leans against a smooth wall as shown in the figure. The coef...
III. A 3.0 m long and 2.0 m wide carton of mass 100 kg leans against a smooth wall as shown in the figure. The coefficient of static friction between the floor and the lower end of the carton is 0.80. The normal force at the floor is:
A 3.06m long ladder leans against a frictionless wall. The coefficient of static friction between the...
A 3.06m long ladder leans against a frictionless wall. The coefficient of static friction between the ladder and the floor is 0.576. What is the minimum angle that the ladder can make with the floor without slipping?
A 10 kg block is pushed against a vertical wall by a horizontal force of 100...
A 10 kg block is pushed against a vertical wall by a
horizontal force of 100 N as shown in the figure the coefficient of
static friction between the block and the wall is 0.60 and the
coefficient of kinetic friction is 0.40 which of the following
statements is true if the block is initially at rest
1) The block slides down the wall with an acceleration of magnitude 3.8 m/s2 The block will slide down the wall because the...
A ladder of length 12.0 m with a mass of 40.0 kg leans against a smooth...
A ladder of length 12.0 m with a mass of 40.0 kg leans against a smooth wall. The ladder makes a 35.0o angle with the horizontal. Draw an adequate free body diagram of the ladder and determine the minimum coefficient of static friction between the ladder and the ground necessary to prevent the ladder from slipping.
A ladder of length 12.0 m with a mass of 40.0 kg leans against a smooth...
A ladder of length 12.0 m with a mass of 40.0 kg leans against a smooth wall. The ladder makes a 35.0 degree angle with the horizontal. Draw an adequate free body diagram of the ladder and determine the minimum coefficient of static friction between the ladder and the ground necessary to prevent the ladder from slipping.
A uniform 7.7 m long ladder of mass 18 kg leans against a smooth all (so...
A uniform 7.7 m long ladder of mass 18 kg leans against a smooth all (so that the force exerted by the wall on the ladder is perpendular to the wall). The ladder makes an angle of 18 degrees with the vertical wall and the ground is rough. (a) Calculate the force exerted by the wall on the ladder. N (b) Calculate the x-component of the force exerted by the ground on the ladder at its base. N (c) Calculate...
You want to nail a 1.3 kg board onto the wall of a barn. To position...
You want to nail a 1.3 kg board onto the wall of a barn. To position the board before nailing, you push it against the wall with a horizontal force F to keep it from sliding to the ground Figure 6-30 (a) If the coefficient of static friction between the board and the wall is 0.85, what is the least force you can apply and still hold the board in place? N (b) What happens to the force of static...
5. A uniform 8.0 m long ladder of mass 10.0 kg leans against a wall. The wall is smooth and the floor is rough. The coefficient of static friction between the ladder and the floor is 0.35 (i) Draw a sketch and free body diagram. (ii) Find the reaction force from the wall. (iii) Find the normal force at the ground. (iv) Find the minimum angle at which the ladder does not slip.
only A thank you
A professor with an eraser in her hand leans against a blackboard as shown in the figure below. Her arm makes an angle of 30 Degree with the horizontal, and the force F = 50 N The coefficient of static friction between the craser nd the blackboard is mu s = 0.15 Does the craser slip? It was a dark and stormy night, and a driver advancing a long an icy road - assume that the...
III. A 3.0 m long and 2.0 m wide carton of mass 100 kg leans against a smooth wall as shown in the figure. The coefficient of static friction between the floor and the lower end of the carton is 0.80. The normal force at the floor is:
A 10 kg block is pushed against a vertical wall by a
horizontal force of 100 N as shown in the figure the coefficient of
static friction between the block and the wall is 0.60 and the
coefficient of kinetic friction is 0.40 which of the following
statements is true if the block is initially at rest
1) The block slides down the wall with an acceleration of magnitude 3.8 m/s2 The block will slide down the wall because the...
You want to nail a 1.3 kg board onto the wall of a barn. To position the board before nailing, you push it against the wall with a horizontal force F to keep it from sliding to the ground Figure 6-30 (a) If the coefficient of static friction between the board and the wall is 0.85, what is the least force you can apply and still hold the board in place? N (b) What happens to the force of static...
