Three capacitors C1 = 10.1 µF, C2 = 23.0 µF, and C3 = 29.4 µF are...

Three capacitors

C1 = 10.1 µF,

C2 = 23.0 µF,

and

C3 = 29.4 µF

are connected in series. To avoid breakdown of the capacitors, the maximum potential difference to which any of them can be individually charged is 125 V. Determine the maximum energy stored in the series combination.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

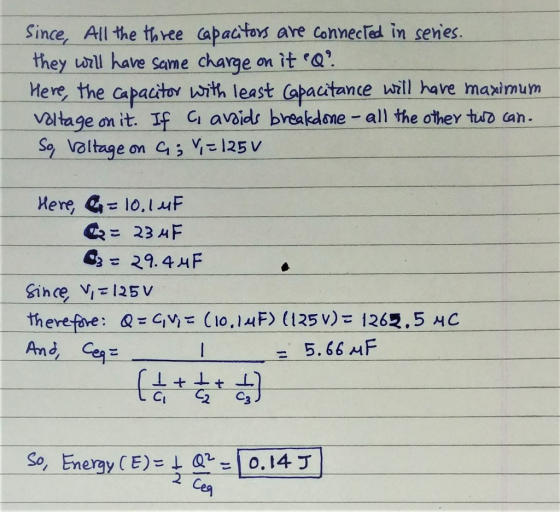

Answer #1


Alright Dude, If that worked for you... dont forget to give THUMBS UP.(that will work for me!)
Please Vote...
If I missed something feel free to leave a comment.
atleast before giving downvote.
and, Thanks for using Chegg- Smarter way to study.

0 0
