A 12 ohm, a 15 ohm, and an unknown resistance are connected in parallel. The total...

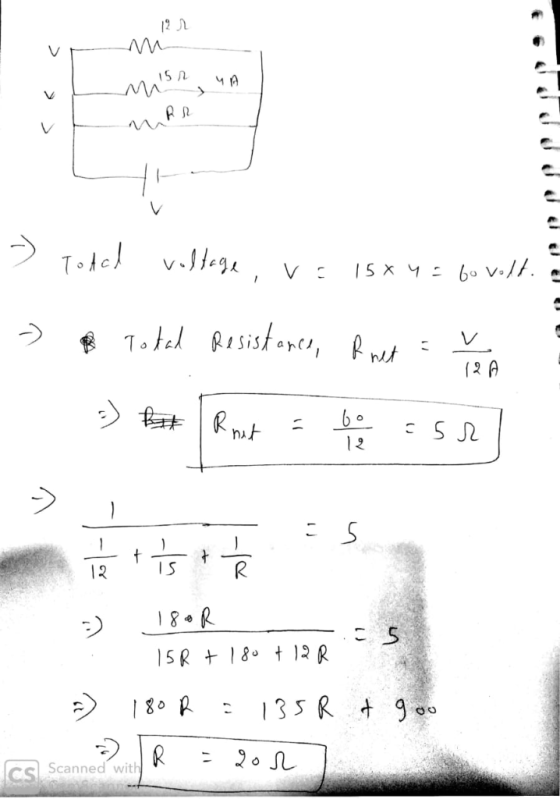

A 12 ohm, a 15 ohm, and an unknown resistance are connected in parallel. The total current of the combination is 12 A. The current across the 15 ohm branch is 4 A. What is the total voltage? What is the total resistance? What is the unknown resistance?
Homework Answers
Add Answer to:
A 12 ohm, a 15 ohm, and an unknown resistance are connected in
parallel. The total...
A 76.1-ohm resistor is connected in parallel with a 121.7-Ohm resistor. This parallel group is connected...
A 76.1-ohm resistor is connected in parallel with a 121.7-Ohm resistor. This parallel group is connected in series with a 22.6-ohm resistor. The total combination it connected across a 18.8-V battery. Find (a) the current and (b) the power dissipated in the 121.7-Ohm resistor.
A 120.0 ohm resistor is connected in parallel to a 60.0 ohm resistor. These two resistors...
A 120.0 ohm resistor is connected in parallel to a 60.0 ohm resistor. These two resistors in parallel are then connected in series with a 20.0 ohm resistor. The total combination is connected across a 15.0 V battery. a. Find the total current in the circuit. b. Find the power dissipated in the 120.0 ohm resistor.
Please anawer all the parts of the question . A 10 ohm and a 15 ohm...
Please anawer all the parts of the question
. A 10 ohm and a 15 ohm resistor are connected in parallel and placed across the terminals of a 15 volt battery a. Sketch the circuit diagram. b. Calculate the equivalent resistance of the circuit. c. Calculate the total current through the entire circuit. d. Calculate the current in each branch.
a) A coil having resistance of 12 2 and an unknown inductance is connected in series...
a) A coil having resistance of 12 2 and an unknown inductance is connected in series with a 14uF capacitor. The circuit draws maximum current when a voltage of 200 V at 60 Hz is applied. A second capacitor is then connected in parallel to the circuit. i) What should be its value (capacitance), such that the combination acts like a non- inductive resistance, with the same voltage (200V) at 120 Hz? [3.0 marks] ii) Calculate the supply current drawn...
Three resistors having resistances of 4.0 Ohm, 6.0 Ohm, and 10.0 Ohm are connected in parallel....
Three resistors having resistances of 4.0 Ohm, 6.0 Ohm, and 10.0 Ohm are connected in parallel. If the combination is connected in series with an ideal 12-V battery and a 2.0-Ohm resistor, what is the current through the 10.0-Ohm resistor?
Experiment RESISTANCE IN COMBINATION PURPOSE: To study series, parallel, and series.parallel combinations of resistors. EQUIPMENTThe experiment...
Experiment RESISTANCE IN COMBINATION PURPOSE: To study series, parallel, and series.parallel combinations of resistors. EQUIPMENTThe experiment board and accompanying bundle of connecting wires. PROCEDURE: 1. Resistors in series: Connect the circuit shown in Fig. 1. Using circuit theory (Ohms Law in conjunction with the predicted procedure for combining resistors in series), calculate the expected current in or through the three resistors in series and the expected voltage across each of the three resistors. After the instructor has approved your connections,...
Three resistors, R1 = 3.00 ohm, R2 = 4.00 ohm, R3 = 5.00 ohm, are connected...
Three resistors, R1 = 3.00 ohm, R2 = 4.00 ohm, R3 = 5.00 ohm, are connected in series. With what single equivalent resistance Req could the series combination be replaced? If the series combination is connected to a 12.0 V battery, what is the voltage across each resistor?
Three resistors connected in parallel have individual values of 6.0, 10.0 and 12.0 Ohm, respectively. If...
Three resistors connected in parallel have individual values of 6.0, 10.0 and 12.0 Ohm, respectively. If this combination is connected in series with a 15-V battery and a 3.0 Ohm resistor, what is the current in the 12 Ohm resistor?
Three resistors having resistances of 1.50 Ohm, 3.00 Ohm, and 4.70 Ohm are connected in parallel...
Three resistors having resistances of 1.50 Ohm, 3.00 Ohm, and 4.70 Ohm are connected in parallel to a 25.0 V battery that has negligible internal resistance. Find the equivalent resistance of the combination.
Two identical resistors, R1 and R2, are connected in parallel, and this parallel combination is then...
Two identical resistors, R1 and R2, are
connected in parallel, and this parallel combination is then
connected in series with a 100 Ω resistor, R3 as shown
below
If the total resistance of the circuit is 300 Ω what must be the
resistance of R1 and R2? If the circuit is
connected to a 30V battery, what would the current through
R1? What voltage is a dropped across R3?
100 S
A 76.1-ohm resistor is connected in parallel with a 121.7-Ohm resistor. This parallel group is connected in series with a 22.6-ohm resistor. The total combination it connected across a 18.8-V battery. Find (a) the current and (b) the power dissipated in the 121.7-Ohm resistor.
Please anawer all the parts of the question
. A 10 ohm and a 15 ohm resistor are connected in parallel and placed across the terminals of a 15 volt battery a. Sketch the circuit diagram. b. Calculate the equivalent resistance of the circuit. c. Calculate the total current through the entire circuit. d. Calculate the current in each branch.
a) A coil having resistance of 12 2 and an unknown inductance is connected in series with a 14uF capacitor. The circuit draws maximum current when a voltage of 200 V at 60 Hz is applied. A second capacitor is then connected in parallel to the circuit. i) What should be its value (capacitance), such that the combination acts like a non- inductive resistance, with the same voltage (200V) at 120 Hz? [3.0 marks] ii) Calculate the supply current drawn...
Three resistors having resistances of 4.0 Ohm, 6.0 Ohm, and 10.0 Ohm are connected in parallel. If the combination is connected in series with an ideal 12-V battery and a 2.0-Ohm resistor, what is the current through the 10.0-Ohm resistor?
Experiment RESISTANCE IN COMBINATION PURPOSE: To study series, parallel, and series.parallel combinations of resistors. EQUIPMENTThe experiment board and accompanying bundle of connecting wires. PROCEDURE: 1. Resistors in series: Connect the circuit shown in Fig. 1. Using circuit theory (Ohms Law in conjunction with the predicted procedure for combining resistors in series), calculate the expected current in or through the three resistors in series and the expected voltage across each of the three resistors. After the instructor has approved your connections,...
Three resistors having resistances of 1.50 Ohm, 3.00 Ohm, and 4.70 Ohm are connected in parallel to a 25.0 V battery that has negligible internal resistance. Find the equivalent resistance of the combination.
Two identical resistors, R1 and R2, are
connected in parallel, and this parallel combination is then
connected in series with a 100 Ω resistor, R3 as shown
below
If the total resistance of the circuit is 300 Ω what must be the
resistance of R1 and R2? If the circuit is
connected to a 30V battery, what would the current through
R1? What voltage is a dropped across R3?
100 S
