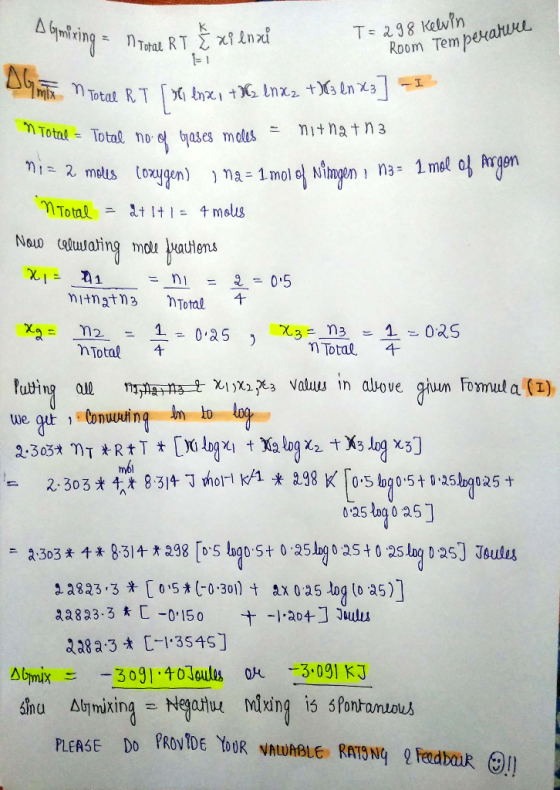

A rectangular box is divided into three spaces that are
separated by two barriers. The first space
constitutes half the volume of the box, while the second and third
spaces each constitute one quarter of
the volume. Initially, 2 moles of oxygen are placed in the first
space, 1 mole of nitrogen is in the second
space, and 1 mole of argon is placed in the final space. After the
system is setup, the partitions are
removed and the gases are allowed to mix. Calculate the ΔG of
mixing for this system. Note, the
temperature is uniform everywhere (as is the total pressure). You
may assume the gases behave ideally.
A rectangular box is divided into three spaces that are separated by two barriers. The first...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
summarizr the followung info and write them in your own words and break them into different key points. 6.5 Metering Chamber: 6.5.1 The minimum size of the metering box is governed by the metering area required to obtain a representative test area for the specimen (see 7.2) and for maintenance of reasonable test accuracy. For example, for specimens incorporating air spaces or stud spaces, the metering area shall span an integral number of spaces (see 5.5). The depth of...
