Suppose that you are outdoors in air at -17° C (1.4° F) and the outer surface...

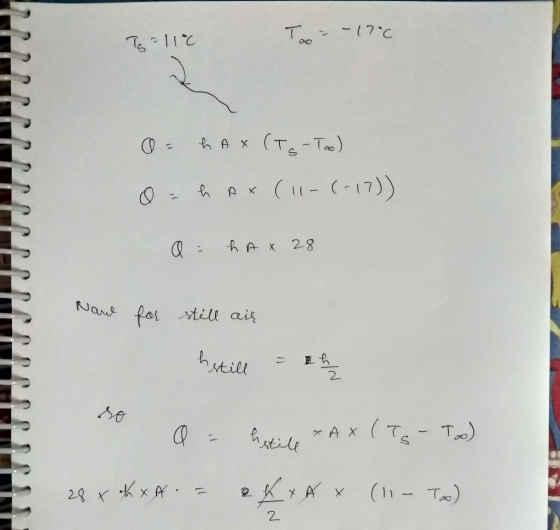

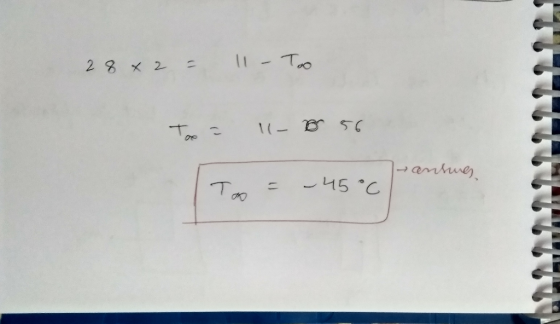

Suppose that you are outdoors in air at -17° C (1.4° F) and the outer surface of your clothing is at 11° C. Convective cooling of your body is enhanced by a wind, in which the convection coefficient is double its value for still air. Find the temperature of still air that would produce the same rate of convective cooling, that is, the "windchill factor."
Homework Answers
Add Answer to:
Suppose that you are outdoors in air at -17° C (1.4° F) and the
outer surface...
To defrost ice accumulated on the outer surface of an automobile windshield, warm air is blown...
To defrost ice accumulated on the outer surface of an automobile windshield, warm air is blown over the inner surface of the windshield. Consider an automobile windshield with thickness of 5 mm and thermal conductivity of 1.4 W/m K. The outside ambient temperature is -10 C and the convection coefficient is 200 W/m2-K, while the ambient temperature inside the automobile is 25 C. Determine the value of the convection heat transfer coefficient for the warm air blowing over the inner...
During its manufacture, plate glass at 600°C is cooled by passing air over its surface such...
During its manufacture, plate glass at 600°C is cooled by passing air over its surface such that the convection heat transfer coefficient is h. To prevent cracking, it is known that the temperature gradient must not exceed 15 °C/mm at any point in the glass during the cooling process. The thermal conductivity of the glass is 1.4 W/mK and its surface emissivity is 0.75. The temperature of the air that is used for the cooling is 315 °C. Assume that...
On a windy day, we can define the wind-chill temperature Twc as the air temperature that...
On a windy day, we can define the wind-chill temperature Twc as the air temperature that would give the same rate of heat loss if experienced on a calm day. Consider a day when the air temperature is 2°C and the wind speed is 12 m/s, giving a convective heat transfer coefficient of 45 W/m2⋅K (compared with 10 W/m2⋅K on a calm day). Assume a person has a 3 mm layer of skin (k = 0.37 W/m⋅K), a body surface...
4. You will experience a significant convection cooling effect when you extend your arm outside t...
4. You will experience a significant convection cooling effect when you extend your arm outside the window in a moving vehicle or into a flowing water stream. Assume that the surface of your hands is at a temperature of 32 'C. You dip one of your hands in a stream of cold water at 10 C, and another in a stream of cold air. The convective coefficient for the water stream is 45 Wm2K I, while for the air stream...
3.9 e wind chill, which is experienced on a cold indy day, is related to increased...
3.9 e wind chill, which is experienced on a cold indy day, is related to increased heat transfer from exposed human skin to the surrounding atmosphere. Consider a layer of fatty tissue that is 3mm thick and whose intenor surface is maintained at a temperature of 36°C. On a calm day the convection heat traneper coefficient at the exter surface is 25 W/m²K, but with 30km/h winds it reaches 65 W/m²K In both cases the ambient air temperature is -15°C....
please show work = To cool a summer home without using a vapor-compression refrigeration cycle, air...
please show work
= To cool a summer home without using a vapor-compression refrigeration cycle, air is routed through a plastic pipe (k = 0.15 W/m-K, Di -0.15 m, Do-0.17 m) with a smooth interior surface that is submerged in an adjoining body of water. The water temperature is nominally at Too = 17°C, and a convection coefficient of ho- 1500 W/m2K is maintained at the outer surface of the pipe. Air from the home enters the pipe at a...
art II- Show your work 17 Marks team at 320°C flows in a stainless steel pipe...
art II- Show your work 17 Marks team at 320°C flows in a stainless steel pipe (kr 15 W/m "C) whose inner and outer diameters are 5 em and 5.5 cm, respectively. The pipe is covered with 3-cm-thick glass wool insulation (k 0.038 W m·°C). Heat is lost to the surroundings at 5°C by natural convection and radiation, with a combined natural convection and radiation heat transfer coefficient of hi-15 w/m.。C. The convective heat transfer coefficient inside the pipe to...
FIGURE P17-56E e develop imensional be used 7Clothing made of several thin la hat kindtrapped air in between, often called ski c layers of fahr clothing, is ly used in cold climates because it is...
FIGURE P17-56E e develop imensional be used 7Clothing made of several thin la hat kindtrapped air in between, often called ski c layers of fahr clothing, is ly used in cold climates because it is light and a very effective thermal insulator. So it is n esistance monly used in cold climates because iti k asso such clothing has largely replaced thick a resist- ioned coats. hick and heavy old Consider a jacket made of five layers of o synthetic...
3. You have been asked to investigate the feasibility of employing hot air (70 C) forced convecti...
3. You have been asked to investigate the feasibility of employing hot air (70 C) forced convection to produce a dried carrot stick snack food. Based on experiments, you have determined that the combined average overall heat transfer coefficient for a nominal "skinny" carrot (1.4 cm diameter, 14 cm long), when heated from 24 C in 70 C air, is 122 w/m2oK. Assume that the carrot density is 1079 kg/m3, with a specific heat of 3,790 J/kg"к, and thermal conductivity...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C and 100°C, respectively. Determine the rate of heal transfer by radiation between the plates in Wim and the radiative heat transfer coefficient in W/m K ) 12 Write down the one-dimensional sent heal conduction equation for a plane wall with constant thermal conductivity and heat generation in its simplest form, and indicate what each variable represents 13 Write down the one-dimensional transient heat conduction...
To defrost ice accumulated on the outer surface of an automobile windshield, warm air is blown over the inner surface of the windshield. Consider an automobile windshield with thickness of 5 mm and thermal conductivity of 1.4 W/m K. The outside ambient temperature is -10 C and the convection coefficient is 200 W/m2-K, while the ambient temperature inside the automobile is 25 C. Determine the value of the convection heat transfer coefficient for the warm air blowing over the inner...
During its manufacture, plate glass at 600°C is cooled by passing air over its surface such that the convection heat transfer coefficient is h. To prevent cracking, it is known that the temperature gradient must not exceed 15 °C/mm at any point in the glass during the cooling process. The thermal conductivity of the glass is 1.4 W/mK and its surface emissivity is 0.75. The temperature of the air that is used for the cooling is 315 °C. Assume that...
4. You will experience a significant convection cooling effect when you extend your arm outside the window in a moving vehicle or into a flowing water stream. Assume that the surface of your hands is at a temperature of 32 'C. You dip one of your hands in a stream of cold water at 10 C, and another in a stream of cold air. The convective coefficient for the water stream is 45 Wm2K I, while for the air stream...
3.9 e wind chill, which is experienced on a cold indy day, is related to increased heat transfer from exposed human skin to the surrounding atmosphere. Consider a layer of fatty tissue that is 3mm thick and whose intenor surface is maintained at a temperature of 36°C. On a calm day the convection heat traneper coefficient at the exter surface is 25 W/m²K, but with 30km/h winds it reaches 65 W/m²K In both cases the ambient air temperature is -15°C....
please show work
= To cool a summer home without using a vapor-compression refrigeration cycle, air is routed through a plastic pipe (k = 0.15 W/m-K, Di -0.15 m, Do-0.17 m) with a smooth interior surface that is submerged in an adjoining body of water. The water temperature is nominally at Too = 17°C, and a convection coefficient of ho- 1500 W/m2K is maintained at the outer surface of the pipe. Air from the home enters the pipe at a...
art II- Show your work 17 Marks team at 320°C flows in a stainless steel pipe (kr 15 W/m "C) whose inner and outer diameters are 5 em and 5.5 cm, respectively. The pipe is covered with 3-cm-thick glass wool insulation (k 0.038 W m·°C). Heat is lost to the surroundings at 5°C by natural convection and radiation, with a combined natural convection and radiation heat transfer coefficient of hi-15 w/m.。C. The convective heat transfer coefficient inside the pipe to...
FIGURE P17-56E e develop imensional be used 7Clothing made of several thin la hat kindtrapped air in between, often called ski c layers of fahr clothing, is ly used in cold climates because it is light and a very effective thermal insulator. So it is n esistance monly used in cold climates because iti k asso such clothing has largely replaced thick a resist- ioned coats. hick and heavy old Consider a jacket made of five layers of o synthetic...
3. You have been asked to investigate the feasibility of employing hot air (70 C) forced convection to produce a dried carrot stick snack food. Based on experiments, you have determined that the combined average overall heat transfer coefficient for a nominal "skinny" carrot (1.4 cm diameter, 14 cm long), when heated from 24 C in 70 C air, is 122 w/m2oK. Assume that the carrot density is 1079 kg/m3, with a specific heat of 3,790 J/kg"к, and thermal conductivity...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C and 100°C, respectively. Determine the rate of heal transfer by radiation between the plates in Wim and the radiative heat transfer coefficient in W/m K ) 12 Write down the one-dimensional sent heal conduction equation for a plane wall with constant thermal conductivity and heat generation in its simplest form, and indicate what each variable represents 13 Write down the one-dimensional transient heat conduction...
