The Pfund series of lines in the emission spectrum of hydrogen corresponds to transitions from higher...

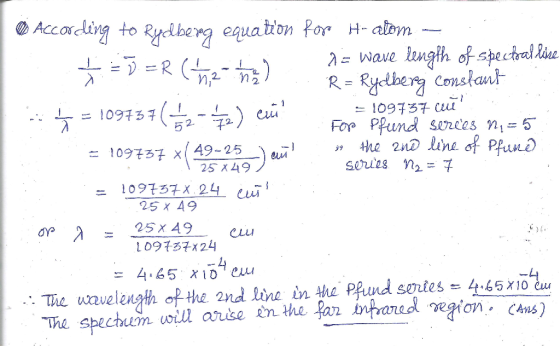

The Pfund series of lines in the emission spectrum of hydrogen
corresponds to transitions
from higher excited states to the n = 5 orbit. Calculate the
wavelength of the second line in
the Pfund series to three significant figures. In which region of
the spectrum does it lie?
Homework Answers
Add Answer to:
The Pfund series of lines in the emission spectrum of hydrogen
corresponds to transitions
from higher...
