the applied load on a SHALLOW CONTINUOUS FOUNDATION makes an angle of 20 degree with the...
the applied load on a SHALLOW CONTINUOUS FOUNDATION makes an angle of 20 degree with the vertical, B = 6ft, Df = 5ft, yt = 128 pcf, friction angle = 22 degree, c' = 1000 psf, FS = 3, find the gross inclined allowable load per unit length USING THE GENERAL BEARING CAPACITY EQUATION
Homework Answers

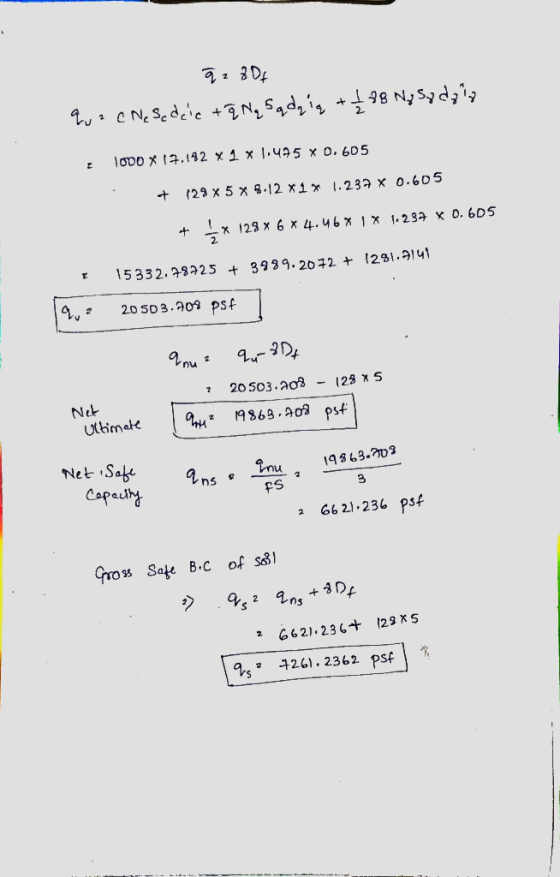

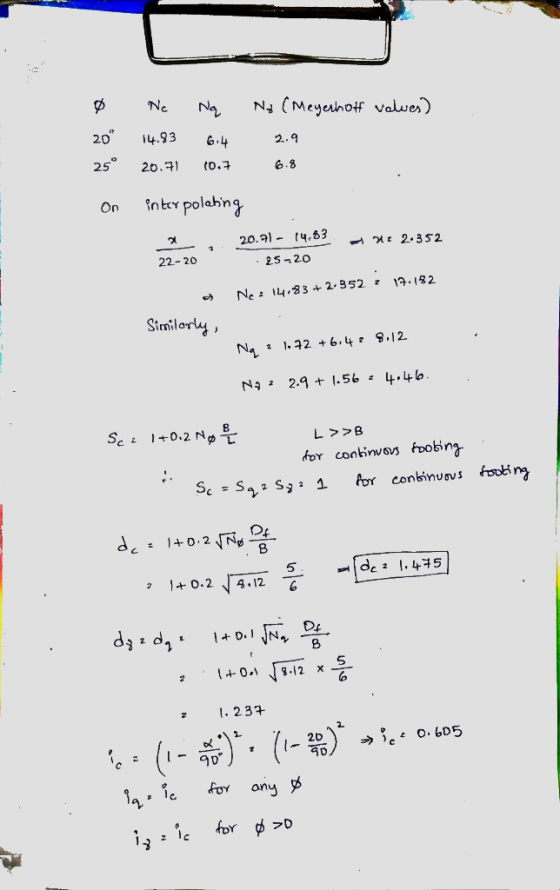

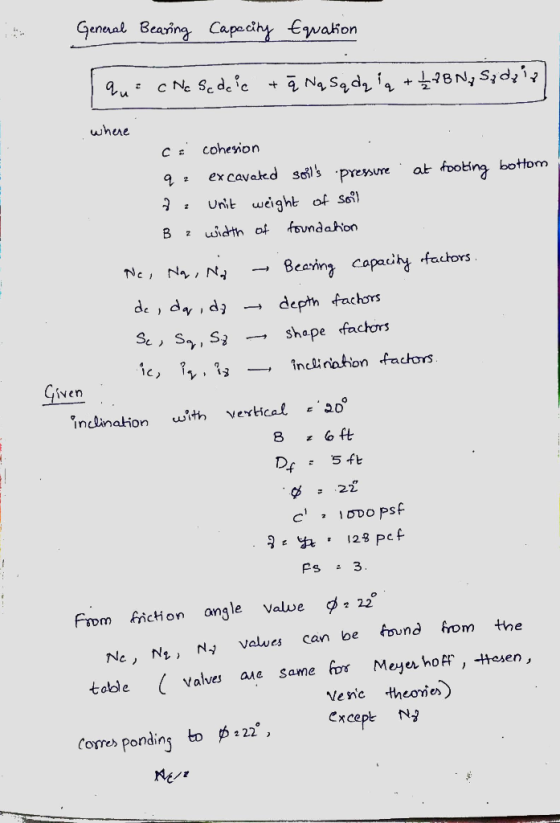

Length of footing is not given in question. Just divide final answer with length to get gross inclined allowable load per unit length.
Please do comment for further clarification.
Please give a thumbs up!!!
Thank you :)
