home / study / science / physics / physics questions and answers / a parallel plate...

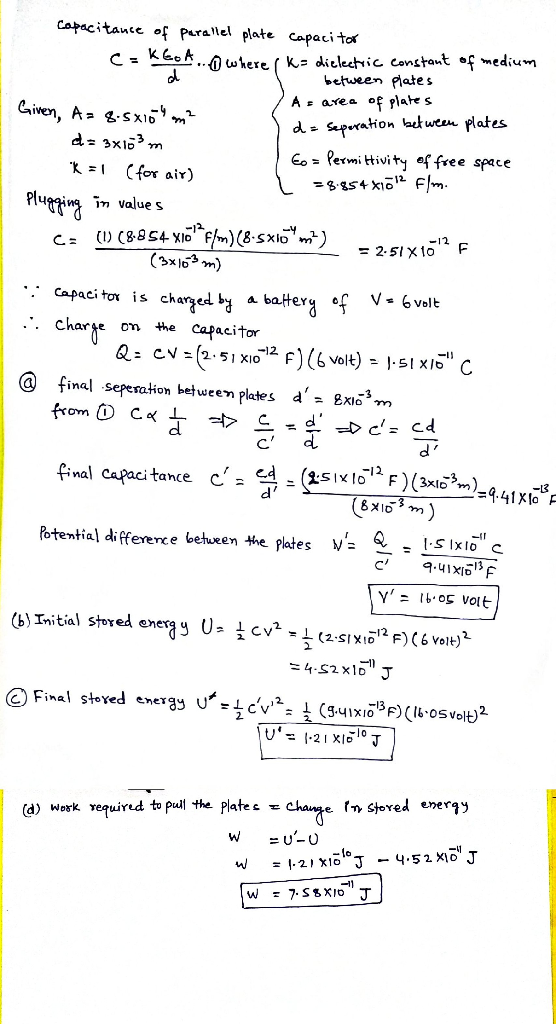

home / study / science / physics / physics questions and answers / a parallel plate capacitor, with a plate area of 8.5 x10 (-4)m^2 and an air filled separation ... Question: A parallel plate capacitor, with a plate area of 8.5 x10 (-4)m^2 and an air filled separation of ... A parallel plate capacitor, with a plate area of 8.5 x10 (-4)m^2 and an air filled separation of 3 x 10 (-3)m, are charged by a 6 Volt battery. They are then disconnected from the battery and pulled apart to the separation of 8 x10 (-3 )m. (a) find the potential difference between the plates (b) initial stored energy (c) final stored energy (d) work required to pull the plates apart
Homework Answers
Add Answer to:
home / study / science / physics / physics questions and answers
/ a parallel plate...
A parallel plate capacitor, with a plate area of 8.5 x10 (-4)m^2 and an air filled...
A parallel plate capacitor, with a plate area of 8.5 x10 (-4)m^2 and an air filled separation of 3 x 10 (-3)m, are charged by a 6 Volt battery. They are then disconnected from the battery and pulled apart to the separation of 8 x10 (-3 )m. (a) find the potential difference between the plates (b) initial stored energy (c) final stored energy (d) work required to pull the plates apart
The parallel plates in a capacitor, with a plate area of 9.90 cm2 and an air-filled...
The parallel plates in a capacitor, with a plate area of 9.90 cm2 and an air-filled separation of 2.30 mm, are charged by a 4.10 V battery. They are then disconnected from the battery and pulled apart (without discharge) to a separation of 6.50 mm. Neglecting fringing, find (a) the potential difference between the plates, (b) the initial stored energy, (c) the final stored energy, and (d) the work required to separate the plates.
The parallel plates in a capacitor, with a plate area of 9.00 cm2 and an air-filled...
The parallel plates in a capacitor, with a plate area of 9.00 cm2 and an air-filled separation of 3.30 mm, are charged by a 5.40 V battery. They are then disconnected from the battery and pulled apart (without discharge) to a separation of 8.10 mm. Neglecting fringing, find (a) the potential difference between the plates, (b) the initial stored energy, (c) the final stored energy, and (d) the work required to separate the plates
The parallel plates in a capacitor, with a plate area of 9.00 cm2 and an air-filled...
The parallel plates in a capacitor, with a plate area of 9.00 cm2 and an air-filled separation of 3.30 mm, are charged by a 5.40 V battery. They are then disconnected from the battery and pulled apart (without discharge) to a separation of 8.10 mm. Neglecting fringing, find (a) the potential difference between the plates, (b) the initial stored energy, (c) the final stored energy, and (d) the work required to separate the plates.
The parallel plates in a capacitor, with a plate area of 5.30 cm2 and an air-filled...
The parallel plates in a capacitor, with a plate area of 5.30 cm2 and an air-filled separation of 4.60 mm, are charged by a 3.60 V battery. They are then disconnected from the battery and pulled apart (without discharge) to a separation of 6.00 mm. Neglecting fringing, find (a) the potential difference between the plates, (b) the initial stored energy, (c) the final stored energy, and (d) the work required to separate the plates.
The parallel plates in a capacitor, with a plate area of 6.60 cm2 and an air-filled...
The parallel plates in a capacitor, with a plate area of 6.60 cm2 and an air-filled separation of 3.30 mm, are charged by a 4.20 V battery. They are then disconnected from the battery and pulled apart (without discharge) to a separation of 7.60 mm. Neglecting fringing, find (a) the potential difference between the plates, (b) the initial stored energy, (c) the final stored energy, and (d) the work required to separate the plates. (a) Number i Units ► (b)...
The parallel plates in a capacitor, with a plate area of 7.60 cm2 and an air-filled...
The parallel plates in a capacitor, with a plate area of 7.60 cm2 and an air-filled separation of 2.70 mm, are charged by a 6.00 V battery. They are then disconnected from the battery and pulled apart (without discharge) to a separation of 8.30 mm. Neglecting fringing, find (a) the potential difference between the plates, (b) the initial stored energy, (c) the final stored energy, and (d) the work required to separate the plates. (a) Number Units (b) Number Units...
An air-filled parallel-plate capacitor has plate area A andplate separation d. The capacitor is connected...
An air-filled parallel-plate capacitor has plate area A and plate separation d. The capacitor is connected to a battery that creates a constant voltage V.A) Find the energy U_0 stored in the capacitor. Express your answer in terms of A, d, V, and ϵ_0.B) The capacitor is now disconnected from the battery, and the plates of the capacitor are then slowly pulled apart until the separation reaches 3d. Find the new energy U_1 of the capacitor after this process. Express...
A parallel-plate capacitor with plate area 4.60 cm2 and air-gap separation 0.78 mm is connected to...
A parallel-plate capacitor
with plate area 4.60 cm2 and air-gap separation 0.78 mm is
connected to a 12.00 V battery, and fully charged. The battery is
then disconnected. (a) What is the charge on the capacitor? (b) The
plates are now pulled to a separation of 0.98 mm. What is the
charge on the capacitor now? (c) What is the potential difference
across the plates now? (d) How much work was required to pull the
plates to their new separation?...
A parallel-plate capacitor with plate area 4.0cm^2 and air-gap separation 0.50❝mm is connected to a 9.0-V...
A parallel-plate capacitor with plate area 4.0cm^2 and air-gap separation 0.50❝mm is connected to a 9.0-V battery, and fully charged. The battery is then disconnected. What is the charge on the capacitor? The plates are now pulled to a separation of 0.75?mm. What is the charge on the capacitor now? What is the potential difference between the plates now? How much work was required to pull the plates to their new separation?
The parallel plates in a capacitor, with a plate area of 9.90 cm2 and an air-filled separation of 2.30 mm, are charged by a 4.10 V battery. They are then disconnected from the battery and pulled apart (without discharge) to a separation of 6.50 mm. Neglecting fringing, find (a) the potential difference between the plates, (b) the initial stored energy, (c) the final stored energy, and (d) the work required to separate the plates.
The parallel plates in a capacitor, with a plate area of 9.00 cm2 and an air-filled separation of 3.30 mm, are charged by a 5.40 V battery. They are then disconnected from the battery and pulled apart (without discharge) to a separation of 8.10 mm. Neglecting fringing, find (a) the potential difference between the plates, (b) the initial stored energy, (c) the final stored energy, and (d) the work required to separate the plates
The parallel plates in a capacitor, with a plate area of 6.60 cm2 and an air-filled separation of 3.30 mm, are charged by a 4.20 V battery. They are then disconnected from the battery and pulled apart (without discharge) to a separation of 7.60 mm. Neglecting fringing, find (a) the potential difference between the plates, (b) the initial stored energy, (c) the final stored energy, and (d) the work required to separate the plates. (a) Number i Units ► (b)...
The parallel plates in a capacitor, with a plate area of 7.60 cm2 and an air-filled separation of 2.70 mm, are charged by a 6.00 V battery. They are then disconnected from the battery and pulled apart (without discharge) to a separation of 8.30 mm. Neglecting fringing, find (a) the potential difference between the plates, (b) the initial stored energy, (c) the final stored energy, and (d) the work required to separate the plates. (a) Number Units (b) Number Units...
A parallel-plate capacitor
with plate area 4.60 cm2 and air-gap separation 0.78 mm is
connected to a 12.00 V battery, and fully charged. The battery is
then disconnected. (a) What is the charge on the capacitor? (b) The
plates are now pulled to a separation of 0.98 mm. What is the
charge on the capacitor now? (c) What is the potential difference
across the plates now? (d) How much work was required to pull the
plates to their new separation?...
