transmission line that has a high source impedance with an unterminated line what sort of filter...

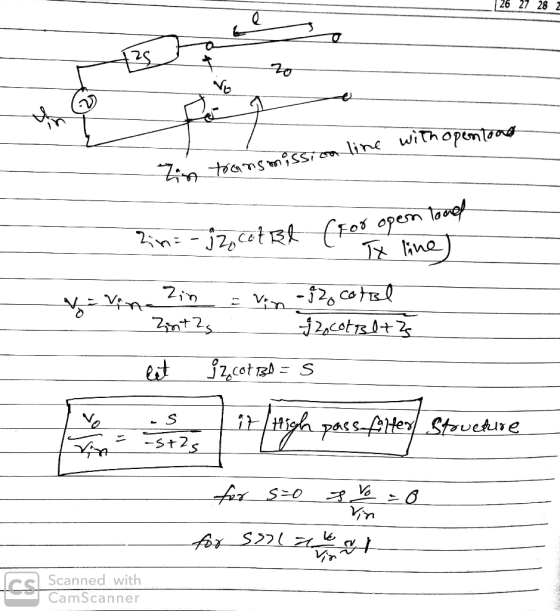

transmission line that has a high source impedance with an unterminated line what sort of filter does this look like? explain
Homework Answers
Add Answer to:
transmission line that has a high source impedance with an
unterminated line what sort of filter...
A lossless transmission line with 50 Ω characteristic impedance has a 50 V step function placed...
A lossless transmission line with 50 Ω characteristic impedance has a 50 V step function placed on it, generated from a source impedance of 10 Ω. Assume the velocity of the signal on the line is 106 m/s, the line is 100 m long, and is terminated in a load impedance of 100 Ω. (a) What is the source voltage? (4 marks) (b) How long does the step function take to reach the termination load impedance? (2 marks) (c) What...
A transmission line has an unknown characteristic impedance of Zo. The length L of the transmission...
A transmission line has an unknown characteristic impedance of Zo. The length L of the transmission line is also unknown. When the transmission line is short circuited (Zi - 0) at one end, the measured input impedance at the other end is Zv Zsc. When the transmission line is open circuited (Zi- oo) at one end, the measured input impedance at the other end is ZiNZoc Find the characteristic impedance Zo of the transmission line.
32 1. There are three transmission line and one 4 transmission line (all characteristic impedance of transmission l...
32 1. There are three transmission line and one 4 transmission line (all characteristic impedance of transmission line is v2zo and assume lossless line) and there are two loads of load impedance Zo 214 iz Zi=?> 2/4 A/4 short 32/4 (a) Find the input impedance (Zn) (b) If the input power is 1 watt, find the transmitted power to each load Zo
32 1. There are three transmission line and one 4 transmission line (all characteristic impedance of transmission line...
Electromagnetism: A transmission line has a characteristic impedance Z0 = 50 Ω and attenuation 3 dB/100m...
Electromagnetism: A transmission line has a characteristic impedance Z0 = 50 Ω and attenuation 3 dB/100m (α = 0.345 Np/100m). Assume that the velocity factor is 1.0 (i.e. the propagation speed along the line is equal to the speed of light). The line is 500 m long and a load resistance, RL = 50 Ω is connected to one end of the line. A sinusoidal voltage source is connected to the line at the other end, with a peak voltage...
A lossless transmission line is used to deliver an AC signal from Liverpool to Wirral. The...
A lossless transmission line is used to deliver an AC signal from Liverpool to Wirral. The length of the transmission line is 6 km. The phase velocity is the same as in free space. The transmission line is terminated by a load at the Wirral side with an impedance of 100 Ω. j) If the characteristic impedance of the transmission line is 100 Ω and the AC b) signal has a frequency of 50 Hz, what is the input impedance...
A distortionless transmission line with a characteristic impedance of ?0 = 75Ω has an attenuation constant...
A distortionless transmission line with a characteristic impedance of ?0 = 75Ω has an attenuation constant of ? = 10−3 Np/m. The line has a capacitance per unit length of C′ = 60 pF/m. (a) Find the per unit length resistance R′, inductance L′, and conductance G′ of the transmission line. (b) Find the phase velocity ?? for this line.
b) A lossy transmission line of length 2.1 m has a characteristic impedance of (80 +...
b) A lossy transmission line of length 2.1 m has a characteristic impedance of (80 + 160). When the line is short circuited, the input impedance is (30 - j12). (1) Determine the phase constant. (i) Find the input impedance when the short circuit is replaced by Z = (40 + 130) [3 marks]
what types of transmission line discontinuities are there and what does theri corresponding waveform look like?
what types of transmission line discontinuities are there and what does theri corresponding waveform look like?
1) A lossless transmission line that is 3N2 long with an impedance of 75Ω terminated by a load of...
1) A lossless transmission line that is 3N2 long with an impedance of 75Ω terminated by a load of 25 Ω The generator has a voltage of V,r-2sin(et) V and an internal impedance Ζ'50Ω (a) For this circuit give Vg, T, and the voltage standing wave ratio. (b) Give Vin. Inand Vo (c) Give and I (d) Give the voltage and current at the midpoint of the line (ie. P(z) and I(2) at z-3/4). (e) From the answer of (d)...
A lassless transmission line with characteristic impedance Zo - 50 R and length l = 0.42...
A lassless transmission line with characteristic impedance Zo - 50 R and length l = 0.42 is terminated into a load Z2 = 100+j401 (a) At what distance from the load is the input impedance real? (4 points) (b) If a quarter-wave transformer is to be used to match the load to the transmission line, what will be its characteristic impedance ? (4 points)
A transmission line has an unknown characteristic impedance of Zo. The length L of the transmission line is also unknown. When the transmission line is short circuited (Zi - 0) at one end, the measured input impedance at the other end is Zv Zsc. When the transmission line is open circuited (Zi- oo) at one end, the measured input impedance at the other end is ZiNZoc Find the characteristic impedance Zo of the transmission line.
32 1. There are three transmission line and one 4 transmission line (all characteristic impedance of transmission line is v2zo and assume lossless line) and there are two loads of load impedance Zo 214 iz Zi=?> 2/4 A/4 short 32/4 (a) Find the input impedance (Zn) (b) If the input power is 1 watt, find the transmitted power to each load Zo
32 1. There are three transmission line and one 4 transmission line (all characteristic impedance of transmission line...
A lossless transmission line is used to deliver an AC signal from Liverpool to Wirral. The length of the transmission line is 6 km. The phase velocity is the same as in free space. The transmission line is terminated by a load at the Wirral side with an impedance of 100 Ω. j) If the characteristic impedance of the transmission line is 100 Ω and the AC b) signal has a frequency of 50 Hz, what is the input impedance...
b) A lossy transmission line of length 2.1 m has a characteristic impedance of (80 + 160). When the line is short circuited, the input impedance is (30 - j12). (1) Determine the phase constant. (i) Find the input impedance when the short circuit is replaced by Z = (40 + 130) [3 marks]
1) A lossless transmission line that is 3N2 long with an impedance of 75Ω terminated by a load of 25 Ω The generator has a voltage of V,r-2sin(et) V and an internal impedance Ζ'50Ω (a) For this circuit give Vg, T, and the voltage standing wave ratio. (b) Give Vin. Inand Vo (c) Give and I (d) Give the voltage and current at the midpoint of the line (ie. P(z) and I(2) at z-3/4). (e) From the answer of (d)...
A lassless transmission line with characteristic impedance Zo - 50 R and length l = 0.42 is terminated into a load Z2 = 100+j401 (a) At what distance from the load is the input impedance real? (4 points) (b) If a quarter-wave transformer is to be used to match the load to the transmission line, what will be its characteristic impedance ? (4 points)
