Sketch (not a picture) of both the electron gun and magnetic chamber. In real life, the...

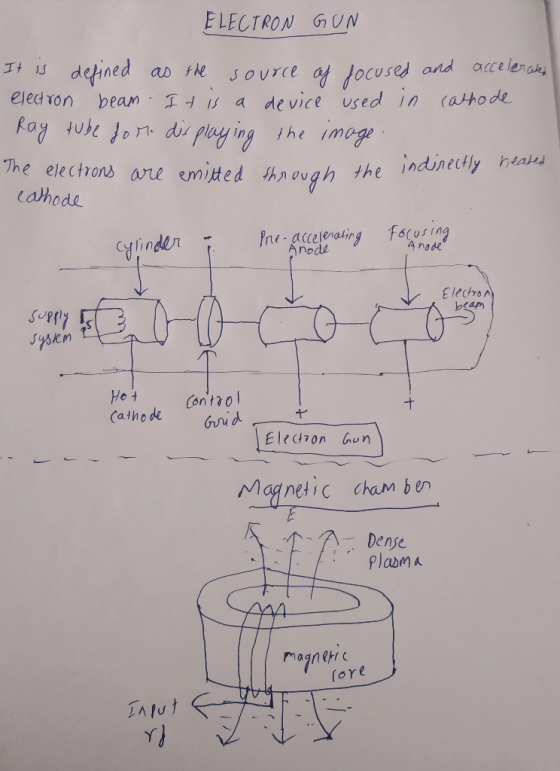

Sketch (not a picture) of both the electron gun and magnetic chamber. In real life, the electron gun is super tiny so your sketch will not be to scale. In that sketch, include a free body diagram of an electron both in the electron gun section and in the magnetic chamber section.
Write all of the assumptions that have been made to justify those two free body diagrams.
(I do not think you need any data. If you need, I can update)
