An AC circuit consists of a 2.0 mH inductor, a 5.0 microF capacitor, and a 12.0...

An AC circuit consists of a 2.0 mH inductor, a 5.0 microF capacitor, and a 12.0 ohms resistor all in series. The power supply operates at a frequency at a frequency of 1900 Hz and an rms voltage of 3 V.
Determine the impedance Z and the magnitude of RMS current in the circuit.
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

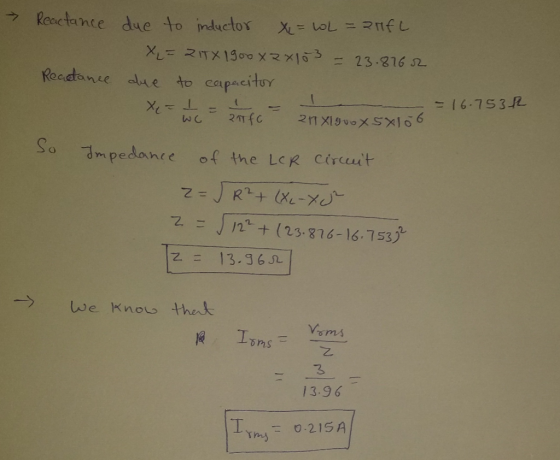

Answer #1

0 0
