If you were to build a pipe organ with open-tube pipes spanning the range from 30...

If you were to build a pipe organ with open-tube pipes spanning the range from 30 Hz to 14 kHz . The speed of sound in air is 343 m/s. What would be the length of the shortest pipe required? What would be the length of the longest pipe required?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

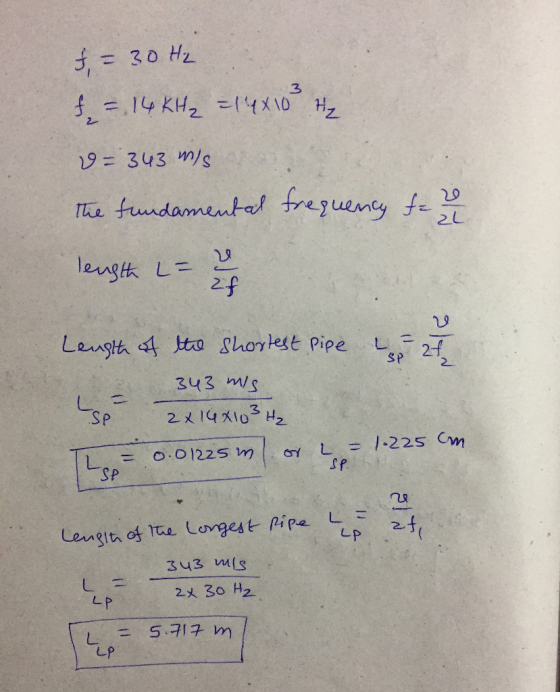

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
If you were to build a pipe organ with open-tube pipes spanning the range from 30...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 3. If you were to build a pi pe organ with open-open tube pipes that could...

    3. If you were to build a pi pe organ with open-open tube pipes that could play notes spanning the entire range of human hearing ), what would be the range of the lengths (L) of pipes? Assume that the fundamental frequency is heard (n the lengths () of p open pipe, A - 2L. See Fig. 17.15 (b) and Equation 17.17. Assume Vound in alr 343 m/s L 20,000 Hz pie L 20 Hz pipe 3B) Would you expect...

  • Suppose that the range of output frequencies is from 88.0 Hz to 13.8 kHz for a...

    Suppose that the range of output frequencies is from 88.0 Hz to 13.8 kHz for a pipe organ. Take 343 m/s for the speed of sound. (a) What is the length (in units of m) of the longest pipe open at both ends and producing sound at its fundamental frequency? (b) What is the length (in units of m) of the shortest pipe open at both ends and producing sound at its fundamental frequency?

  • A pipe organ may contain tens of thousands of pipes of varying shapes, sizes and materials....

    A pipe organ may contain tens of thousands of pipes of varying shapes, sizes and materials. (a) A pipe destined for an organ is open at both ends and has a length of 1.2 m. What is the wavelength of the longest standing wave that can be produced by this pipe? (b) The fundamental frequency produced by the pipe is measured to be 150 Hz. Calculate the speed of sound for the air in the pipe. (c) If one end...

  • Organ pipe A with both ends open has a fundamental frequency of 320.0 Hz. The third...

    Organ pipe A with both ends open has a fundamental frequency of 320.0 Hz. The third harmonic of organ pipe B with one end open has the same frequency as the second harmonic of pipe A. Assume a speed of sound of 343 m/s. What is the length of Pipe A? What is the length of Pipe B?

  • You have pipes of various lengths and openings and want to select 2 pipes (1 open-open...

    You have pipes of various lengths and openings and want to select 2 pipes (1 open-open and 1 open-closed) so your 440 Hz tuning fork will vibrate both perfectly at their first resonant points. The speed of sound in air is 343 m/s. a) What are the lengths of each of these two pipes? b) Draw a picture of the wave in both pipes and clearly indicate the nodes and antinodes of the wave inside both pipes. c) How much...

  • You have pipes of various lengths and openings and want to select 2 pipes (1 open-open...

    You have pipes of various lengths and openings and want to select 2 pipes (1 open-open and 1 open-closed) so your 440 Hz tuning fork will vibrate both perfectly at their first resonant points. The speed of sound in air is 343 m/s. a) What are the lengths of each of these two pipes? b) Draw a picture of the wave in both pipes and clearly indicate the nodes and antinodes of the wave inside both pipes. 1 c) How...

  • An open pipe on an organ creates a fundamental frequency at 10500 Hz. How long is...

    An open pipe on an organ creates a fundamental frequency at 10500 Hz. How long is the pipe (speed of sound=343 m/s, unit=m)?

  • An organ pipe open at both ends is 1.5 m long. A second organ pipe that...

    An organ pipe open at both ends is 1.5 m long. A second organ pipe that is closed at one end and open at the other is 0.75 m long. The speed of sound in the room is 330 m/s. Which of the following sets of frequencies consists of frequencies which can be produced by both pipes? a. 220 Hz, 440 Hz, 660 Hz b. 330 Hz, 550 Hz, 770 Hz c. 220 Hz, 660 Hz, 880 Hz d. 110...

  • Organ pipe A, with both ends open, has a fundamental frequency of 320 Hz. The third...

    Organ pipe A, with both ends open, has a fundamental frequency of 320 Hz. The third harmonic of organ pipe B, with one end open, has the same frequency as the second harmonic of pipe A. a) How long are pipe A and b) pipe B? (take the speed of sound to be 343 m/s)

  • An open organ pipe emits F (349 Hz ) when the temperature is 14 ∘C. The...

    An open organ pipe emits F (349 Hz ) when the temperature is 14 ∘C. The speed of sound in air is v≈(331+0.60T)m/s, where T is the temperature in ∘C. Part C What is frequency of the fundamental standing wave in the pipe? Part E What is the wavelength in the traveling sound wave produced in the outside air?
