6. A concave mirror has a focal length of 50 cm. We want this mirror to...

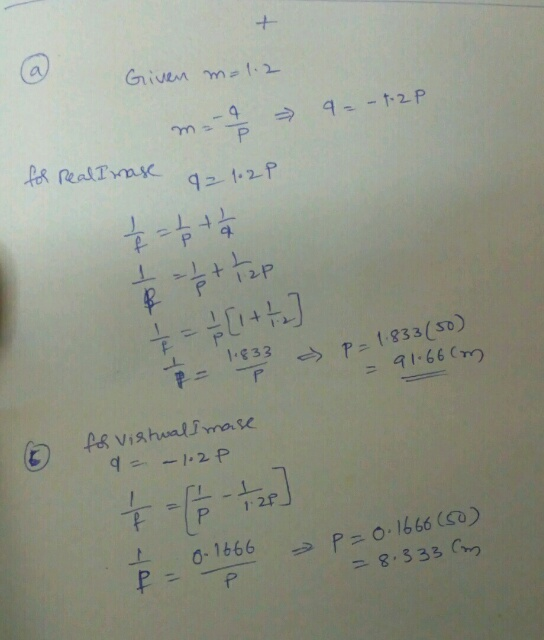

6. A concave mirror has a focal length of 50 cm. We want this mirror to form a real image 1.2 times larger than an object. a) Where should we place the object? b) Draw a ray diagram to position the image. c) Where should we place the same object to obtain a virtual image 1.2 times larger than the object?
Homework Answers
Add Answer to:
6. A concave mirror has a focal length of 50 cm. We want this
mirror to...
A concave mirror has a focal length of 45 cm. An object is placed 35 cm...
A concave mirror has a focal length of 45 cm. An object is placed 35 cm from the mirror. a. Draw the ray tracing diagram to locate the image. Is the image real or virtual? b. Calculate the image location and the magnification for the image. Compare your results with part a. c. What would the image location and magnification be if the object were 55 cm from the mirror?
An object is placed 15.5 cm in front of a 10.0 cm focal length concave mirror....
An object is placed 15.5 cm in front of a 10.0 cm focal length concave mirror. Find the magnification (sign AND magnitude). Also, draw a ray diagram for this situation and describe the image by answering whether the image is: upright or inverted, magnified or reduced, real or virtual.
(a) Find the focal length of a concave mirror if an object placed 40 cm in...
(a) Find the focal length of a concave mirror if an object
placed 40 cm in front of the mirror has a real image 80 cm from the
the mirror.
(b) Where will the image be if the object is moved to a point 20
cm from the mirror?
(c) What type will this image be?
(a) Find the focal length of a concave mirror if an object placed 40 cm in front of the mirror has a real image...
A concave mirror of 5 cm focal length and a convex mirror of also 5 cm...
A concave mirror of 5 cm focal length and a convex mirror of also 5 cm focal length are 30 cm apart. An object positioned 15 cm from the concave mirror. Let the image first formed by the concave mirror be the object for the convex mirror. Determine the location, orientation, nature (virtual, real), and magnification of the final image formed by the convex mirror.
number 7 Mirrors 7. A concave mirror has a focal length of 20 cm. What type...
number 7
Mirrors 7. A concave mirror has a focal length of 20 cm. What type of image (real/virtual, upright/inverted) is formed a) if the object is 30 cm in front of the mirror? b) if the object is 10 cm in front of the mirror? Focal rength 26см, 8. Can a convex mirror ever form a real image? Why or why not? 9. Why are objects in the passenger side mirror closer than they appear?
A concave spherical mirror has a radius of curvature of magnitude 17.3 cm. (a) Determine the...
A concave spherical mirror has a radius of curvature of magnitude 17.3 cm. (a) Determine the object position for which the resulting image is upright and larger than the object by a factor of 6.50. (b) Draw a ray diagram to determine the position of the image. (Do this on paper. Your instructor may ask you to turn in this work.) (c) Is the image real or virtual?
A concave mirror has a focal length of 12 cm. An object (the tree) is located...
A concave mirror has a focal length of 12 cm. An object (the tree) is located 8 cm to the right of the mirror . a. Draw three rays locating the image . b. Calculate the image distance . c. Calculate the magnification . d. Is the image magnified or minified? .e. Is the image upright or inverted? f. Is the image real or virtual?
A concave spherical mirror has a radius of curvature of magnitude 25.4 cm. (a) Determine the...
A concave spherical mirror has a radius of curvature of magnitude 25.4 cm. (a) Determine the object position for which the resulting image is inverted and larger than the object by a factor of 9.00. ______cm (b) Draw a ray diagram to determine the position of the image. (Do this on paper. Your instructor may ask you to turn in this work.) (c) Is the image real or virtual?
An object is placed 24.1 cm in front of a convex mirror of focal length 50...
An object is placed 24.1 cm in front of a convex mirror of focal length 50 cm. Note: Do convex mirrors have a positive or negative focal length? What is its image position? Answer in units of cm. The magnification of the image in the previ- ous question is: With the arrangement discussed above, the image is: 1. virtual, inverted, smaller than object 2. real, erect, smaller than object 3. real, inverted, bigger than object 4. real, erect, bigger than...
A concave mirror has a focal length 55 cm. Where should you place an object to...
A concave mirror has a focal length 55 cm. Where should you place an object to get a real image at: a) 83.5 cm from the mirror? b) 1.8 m from the mirror? Explain the outcome of your calculations.
(a) Find the focal length of a concave mirror if an object
placed 40 cm in front of the mirror has a real image 80 cm from the
the mirror.
(b) Where will the image be if the object is moved to a point 20
cm from the mirror?
(c) What type will this image be?
(a) Find the focal length of a concave mirror if an object placed 40 cm in front of the mirror has a real image...
number 7
Mirrors 7. A concave mirror has a focal length of 20 cm. What type of image (real/virtual, upright/inverted) is formed a) if the object is 30 cm in front of the mirror? b) if the object is 10 cm in front of the mirror? Focal rength 26см, 8. Can a convex mirror ever form a real image? Why or why not? 9. Why are objects in the passenger side mirror closer than they appear?
A concave mirror has a focal length of 12 cm. An object (the tree) is located 8 cm to the right of the mirror . a. Draw three rays locating the image . b. Calculate the image distance . c. Calculate the magnification . d. Is the image magnified or minified? .e. Is the image upright or inverted? f. Is the image real or virtual?
