A fixed mass of saturated water vapor at 500 kPa is isothermally cooled until it is...

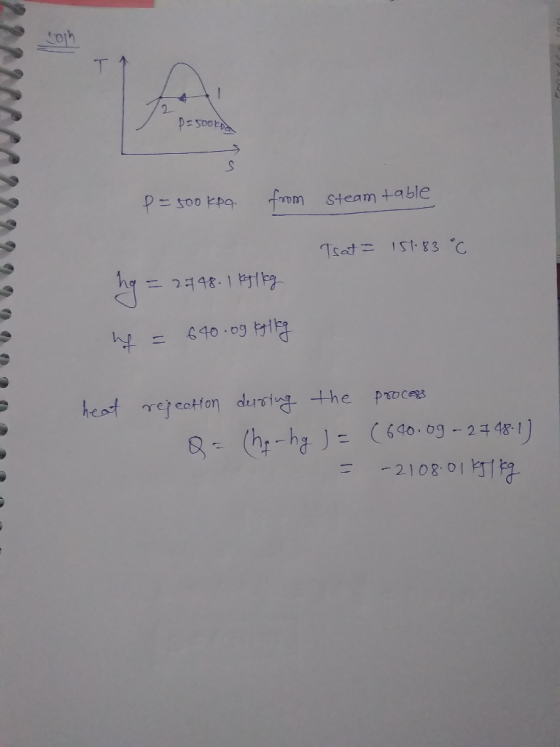

A fixed mass of saturated water vapor at 500 kPa is isothermally cooled until it is a saturated liquid. Calculate the amount of heat rejected during this process, in kJ/kg. (Round the final answer to one decimal place.) The saturated water—pressure table (in SI units) is given below.
Homework Answers
Add Answer to:
A fixed mass of saturated water vapor at 500 kPa is isothermally
cooled until it is...
Saturated water vapor which is initially at 500 kPa is contained in a piston-cylinder device arranged...
Saturated water vapor which is initially at 500 kPa is contained in a piston-cylinder device arranged to maintain a constant temperature. The piston is now moved until the water becomes a saturated liquid. How much work and how much heat (in kJ/kg) are transferred during this process?
6. Saturated water vapor is cooled and condensed into saturated liquid water in an isobaric process...
6. Saturated water vapor is cooled and condensed into saturated liquid water in an isobaric process at a pressure of 100 kPa. Find The heat transferred per kg of H20, q1-2 The work done per kg of H20, w1-2 a. b.
A mass of 5.5 kg of saturated liquid-vapor mixture of water is contained in a piston-cylinder...
A mass of 5.5 kg of saturated liquid-vapor mixture of water is contained in a piston-cylinder at 101.325 kPa. Initially, 2.3 kg of the water is in the liquid phase and the rest is in the vapor phase. Heat is now transferred to the water, and the piston, which is resting on a set of stops, starts moving when the pressure inside reaches 300 kPa. Heat transfer continues until the total volume increases by 21 percent. Determine: a) the initial...
An piston-cylinder device contains 100 L of saturated water vapor at a pressure or 150 kPa....
An piston-cylinder device contains 100 L of saturated water vapor at a pressure or 150 kPa. The paddle wheel shown here does 1200 kJ of work on the water as it is cooled to a saturated liquid. If the surroundings are at 100 kPa and 25 oC what is (A) the maximum reversible work this system can produce and (B) exergy destroyed during this process?
A mass of 5 kg of saturated liquid-vapor mixture of water is contained in a piston-...
A mass of 5 kg of saturated liquid-vapor mixture of water is contained in a piston- cylinder device at 125 kPa. Initially. 3 kg of the water is in the liquid phase and the rest is in the vapor phase. Heat is now transferred to the water, and the piston, which is resting on a set of stops, starts moving when the pressure inside reaches 300 kPa. Heat transfer continues until the total volume increases by 10%. We denote the...
nts) Calculate the change in internal energy during the conversi . (20 poi on of 2 kg of saturated liquid water to saturated vapor i 100 kPa? Assuming heat is added to the piston cylinder in the...
nts) Calculate the change in internal energy during the conversi . (20 poi on of 2 kg of saturated liquid water to saturated vapor i 100 kPa? Assuming heat is added to the piston cylinder in the process, what is the work performed by the piston (boundary work)? What is the required heat in if you assume a heat loss of 50 kJ during the process? Please show work using a T-v AND P-v diagram n a piston cylinder at...
3. A piston-cylinder device initially contains 3 kg saturated liquid water at 500 kPa. Now heat...
3. A piston-cylinder device initially contains 3 kg saturated liquid water at 500 kPa. Now heat is transferred to the water until the cylinder contains saturated vapor only. Determine water m = 3 kg p = 500 kPa a) The initial and final volume of the cylinder, b) The boundary work of the piston, and c) The heat added to the system
2.Water, initially saturated vapor at 14.6 bar, fills a closed, rigid container. The water is heated...
2.Water, initially saturated vapor at 14.6 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the heat transfer, in kJ/kg. Kinetic and potential energy effects can be ignored. 3.A piston-cylinder assembly contains 4 kg of water at 211.4oC and 3 bar. The water is compressed to a saturated vapor state where the pressure is 50.8 bar. During compression, there is a heat transfer of energy from the water to its...
4.) A 0.5 kg of saturated water vapor at 300°C is heated in a piston-cylinder device....
4.) A 0.5 kg of saturated water vapor at 300°C is heated in a piston-cylinder device. Now the steam expanded reversibly and isothermally to a final pressure of 600 kPa. Determine the heat transferred during this process. - Determine the work done during the process. Plot the PV diagram showing all the states and numbers on it.
A 0.5 kg of saturated water vapor at 300°C is heated in a piston–cylinder device. Now...
A 0.5 kg of saturated water vapor at 300°C is heated in a piston–cylinder device. Now the steam expanded reversibly and isothermally to a final pressure of 600 kPa. 1. Determine the heat transferred during this process. 2. Determine the work done during the process. 3. Plot the PV diagram showing all the states and numbers on it.
6. Saturated water vapor is cooled and condensed into saturated liquid water in an isobaric process at a pressure of 100 kPa. Find The heat transferred per kg of H20, q1-2 The work done per kg of H20, w1-2 a. b.
A mass of 5 kg of saturated liquid-vapor mixture of water is contained in a piston- cylinder device at 125 kPa. Initially. 3 kg of the water is in the liquid phase and the rest is in the vapor phase. Heat is now transferred to the water, and the piston, which is resting on a set of stops, starts moving when the pressure inside reaches 300 kPa. Heat transfer continues until the total volume increases by 10%. We denote the...
nts) Calculate the change in internal energy during the conversi . (20 poi on of 2 kg of saturated liquid water to saturated vapor i 100 kPa? Assuming heat is added to the piston cylinder in the process, what is the work performed by the piston (boundary work)? What is the required heat in if you assume a heat loss of 50 kJ during the process? Please show work using a T-v AND P-v diagram n a piston cylinder at...
3. A piston-cylinder device initially contains 3 kg saturated liquid water at 500 kPa. Now heat is transferred to the water until the cylinder contains saturated vapor only. Determine water m = 3 kg p = 500 kPa a) The initial and final volume of the cylinder, b) The boundary work of the piston, and c) The heat added to the system
4.) A 0.5 kg of saturated water vapor at 300°C is heated in a piston-cylinder device. Now the steam expanded reversibly and isothermally to a final pressure of 600 kPa. Determine the heat transferred during this process. - Determine the work done during the process. Plot the PV diagram showing all the states and numbers on it.
