Table 1: Brass 0.050 inch Diameter
Table 1: Brass 0.050 inch Diameter Cross section Area= 0.0127 cm2
|
L (cm) |
L/A (cm-1) |
V (V) |
I (A) |
V/I =R (Ω) |
R (µΩ) |
|
5 cm |
393.7007 |
0.007 |
1.091 |
0.006416 |
6416 |
|
10 cm |
787.4016 |
0.010 |
1.091 |
0.009166 |
9166 |
|
15 cm |
1181.102 |
0.013 |
1.092 |
0.011905 |
11905 |
|
20 cm |
1574.803 |
0.016 |
1.092 |
0.014652 |
14652 |

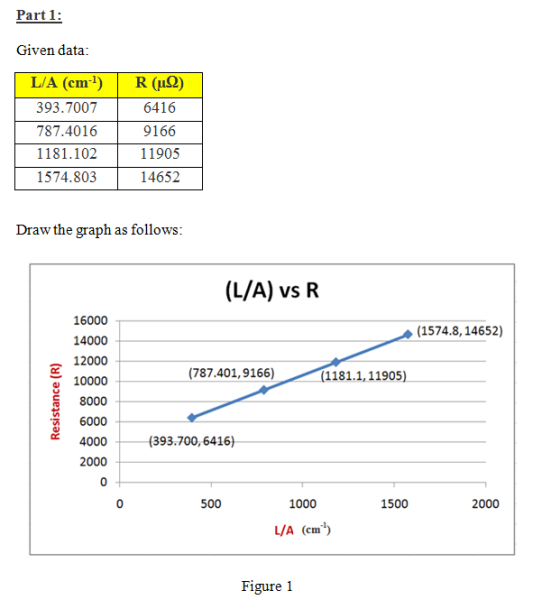

1. In Excel plot Resistance (µΩ) vs Length/Area, and show the trend line on the graph.

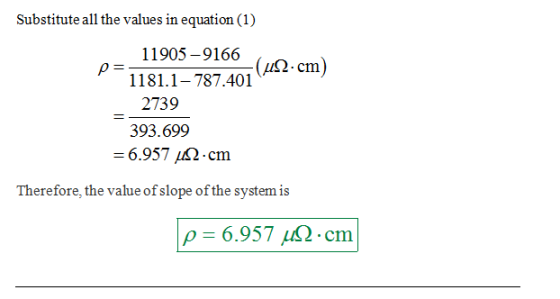

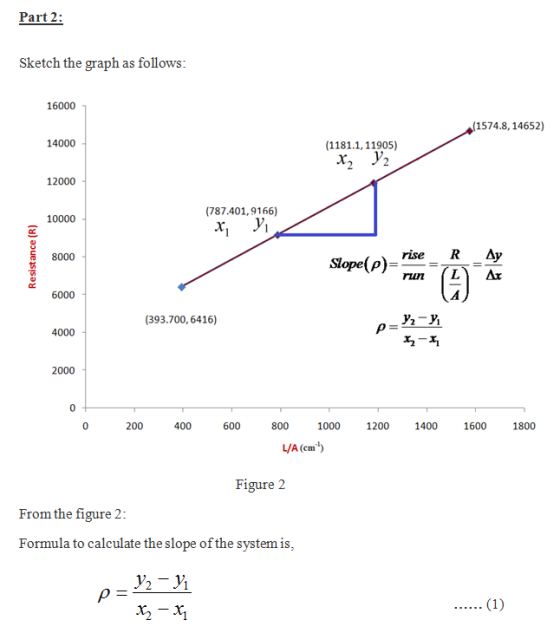

2.Show the slope calculation on the graph with all units.
