Question

An p-type Si resistor's two terminals are biased at 5V and 1V, which terminal is the...

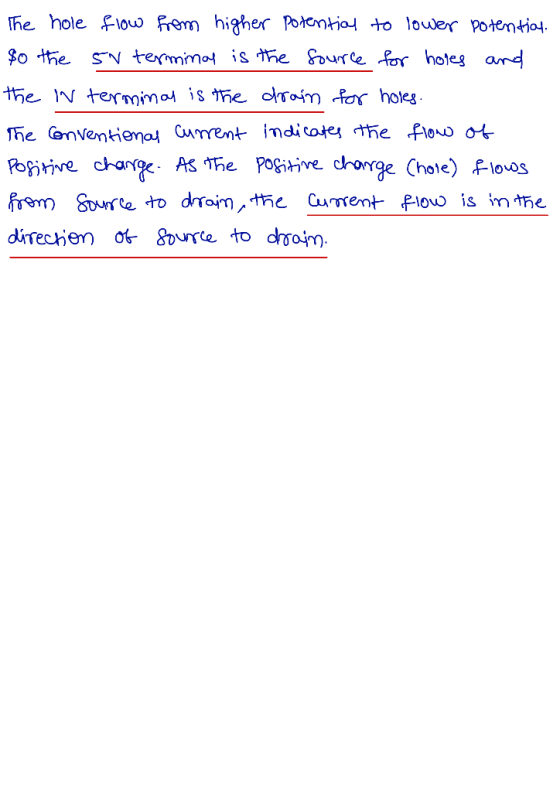

An p-type Si resistor's two terminals are biased at 5V and 1V, which terminal is the source of holes? Which terminal is the drain of holes? What about the current flow direction (drain to source or source to drain)?

0 0
Add a comment Improve this question Transcribed image text
