The energies of peaks in a rotational-vibrational (rovib) spectrum are typically expressed in terms of wavenumbers, (i.e....

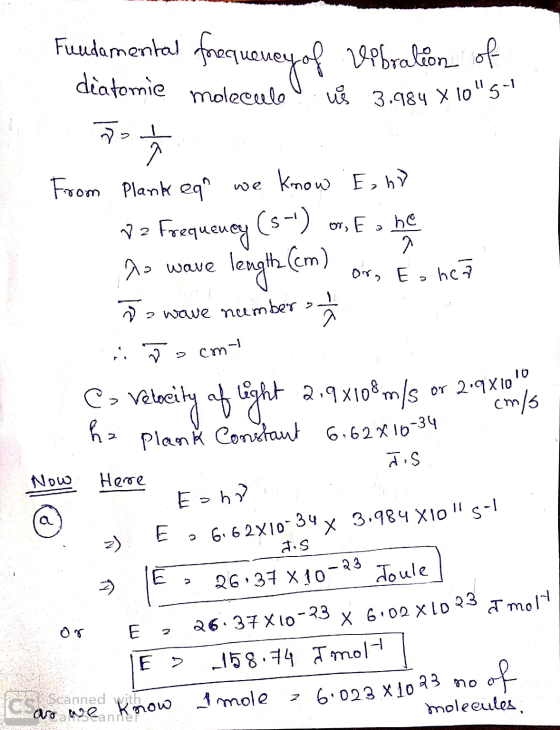

- The energies of peaks in a rotational-vibrational (rovib)
spectrum are typically expressed in terms of
wavenumbers, (i.e. “nu bar”), where . In lab,
a student determines that the fundamental frequency of vibration of
a certain diatomic molecule is 3.984x1011
s-1. Use this information to find the following:

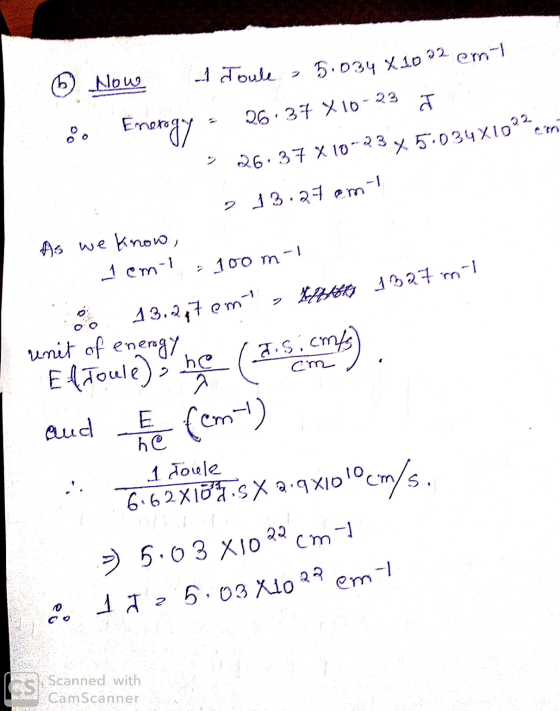

- E (in J and J/mol)
- (in m-1 and cm-1)
