A spy satellite uses a telescope with a 1.5-m-diameter mirror. It orbits the earth at a...

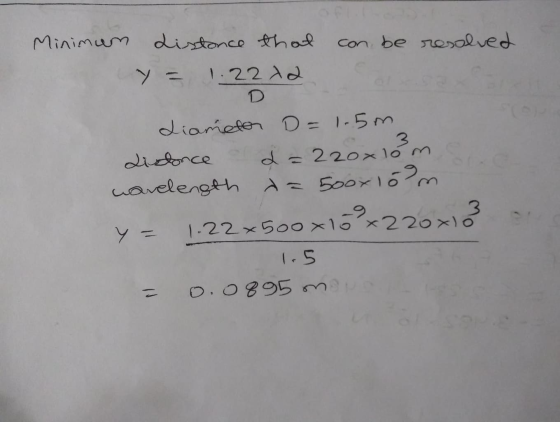

A spy satellite uses a telescope with a 1.5-m-diameter mirror. It orbits the earth at a height of 220 km. What minimum spacing must there be between two objects on the earth's surface if they are to be resolved as distinct objects by this telescope? Assume the telescope's resolution is limited only by diffraction and that it records 500 nm light.
Homework Answers
Add Answer to:
A spy satellite uses a telescope with a 1.5-m-diameter mirror.
It orbits the earth at a...
The objective lens of a certain refracting telescope has a diameter of 59.0 cm. The telescope...
The objective lens of a certain refracting telescope has a diameter of 59.0 cm. The telescope is mounted in a satellite that orbits the Earth at an altitude of 335 km to view objects on the Earth's surface. Assuming an average wavelength of 500 nm, find the minimum distance between two objects on the ground if their images are to be resolved by this lens.
The primary mirror on a telescope that orbits 600 km above Earth has a diameter of...
The primary mirror on a telescope that orbits 600 km above Earth has a diameter of 2.4 m. a) Calculate the minimum angular separation that it might resolve for visible light. b) Assume that the telescope is viewing Earth’s surface. What is the separation of the most closely spaced objects that it might resole?
Constants Part A The resolution of a telescope is ultimately limited by the diameter of its...
Constants Part A The resolution of a telescope is ultimately limited by the diameter of its objective lens or mirror. A typical amateur astronomer's telescope may have a 7.0 in. -diameter mirror What is the minimum angular separation (in arc seconds) of two stars that can be resolved with a 7.0 in. scope? (Take ? to be at the center of the visible spectrum, about 550 nm, and note that 1 arc sec 1/3600 ) Express your answer using two...
The Hubble Space Telescope has a mirror diameter of 2.4 m. Suppose the telescope is used...
The Hubble Space Telescope has a mirror diameter of 2.4 m. Suppose the telescope is used to photograph stars near the center of our galaxy, 30,000 light years away, using red light with a wavelength of 720 nm . A) What's the distance (in km) between two stars that are marginally resolved? The resolution of a reflecting telescope is calculated exactly the same as for a refracting telescope. B) For comparison, what is this distance as a multiple of the...
There is a spy satellite at the height 200km and uses 1000nm wavelength light to do...
There is a spy satellite at the height 200km and uses 1000nm wavelength light to do imaging on Earth. To distinguish two objects separated 0.5m, what would be the minimum diameter of the lens to use?
Two satellites are in circular orbits around the earth. The orbit for satellite A is at...
Two satellites are in circular orbits around the earth. The orbit for satellite A is at a height of 364 km above the earth's surface, while that for satellite B is at a height of 880. km. Find the orbital speed for satellite A and satellite B. (a) VA = (b) VB =
6. The Hubble Space Telescope (HST) has a 2.4m diameter primary mirror, which you may assume...
6. The Hubble Space Telescope (HST) has a 2.4m diameter primary mirror, which you may assume to be diffraction limited. The HST is used to image an object located at a distance of 4000km away from the HST. Estimate the minimum feature size that may be resolved using yellow light (wavelength=580nm) on the distant object? [10 marks]
Suppose your Newtonian reflect has an objective mirror 10 cm (4 inches) in diameter. a) What...
Suppose your Newtonian reflect has an objective mirror 10 cm (4 inches) in diameter. a) What is the telescope's diffraction-limited angular resolution when used with yellow light of wavelength 600 nm? b) A binary star is a system of two stars orbiting each other. Suppose you are observing a binary star consisting of two yellow stars having an angular separation of 0.5 arc-seconds. Will your telescope be able to resolve the two stars? Explain your answer. c) Would you be...
A satellite m = 500 kg orbits the earth at a distance d = 218 km,...
A satellite m = 500 kg orbits the earth at a distance d = 218 km, above the surface of the planet. The radius of the earth is re = 6.38 × 106 m and the gravitational constant G = 6.67 × 10-11 N m2/kg2 and the Earth's mass is me = 5.98 × 1024 kg. What is the speed of the satellite in m/s?
The Hubble Space Telescope (still operational) has a mirror with a diameter of 2.4 m. What is the...
The Hubble Space Telescope (still operational) has a mirror with a diameter of 2.4 m. What is the maximum resolution of Hubble when observing Mars at closest approach (typically 7.5 x 1010 m away)? Since Mars is mostly red, assume the light is reddish, with a wavelength of 630 nm. Could Hubble resolve the Endeavor crater (diameter 22 km) on Mars? 1. 2. Calculate the angle of incidence at which light reflecting off of crown glass (with an index of...
The objective lens of a certain refracting telescope has a diameter of 59.0 cm. The telescope is mounted in a satellite that orbits the Earth at an altitude of 335 km to view objects on the Earth's surface. Assuming an average wavelength of 500 nm, find the minimum distance between two objects on the ground if their images are to be resolved by this lens.
Constants Part A The resolution of a telescope is ultimately limited by the diameter of its objective lens or mirror. A typical amateur astronomer's telescope may have a 7.0 in. -diameter mirror What is the minimum angular separation (in arc seconds) of two stars that can be resolved with a 7.0 in. scope? (Take ? to be at the center of the visible spectrum, about 550 nm, and note that 1 arc sec 1/3600 ) Express your answer using two...
6. The Hubble Space Telescope (HST) has a 2.4m diameter primary mirror, which you may assume to be diffraction limited. The HST is used to image an object located at a distance of 4000km away from the HST. Estimate the minimum feature size that may be resolved using yellow light (wavelength=580nm) on the distant object? [10 marks]
The Hubble Space Telescope (still operational) has a mirror with a diameter of 2.4 m. What is the maximum resolution of Hubble when observing Mars at closest approach (typically 7.5 x 1010 m away)? Since Mars is mostly red, assume the light is reddish, with a wavelength of 630 nm. Could Hubble resolve the Endeavor crater (diameter 22 km) on Mars? 1. 2. Calculate the angle of incidence at which light reflecting off of crown glass (with an index of...
