A Brinell hardness test is performed on a cold-worked aluminum alloy (yield stress = 200 MPa)...

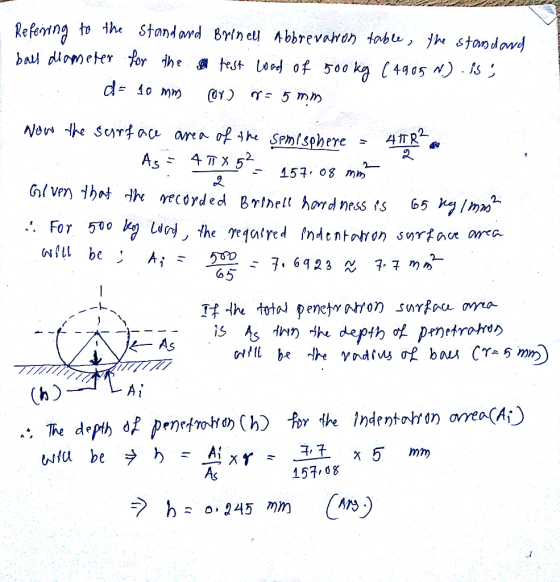

A Brinell hardness test is performed on a cold-worked aluminum alloy (yield stress = 200 MPa) using a 500 kg load and a standard spherical indenter. The Brinell hardness recorded is approximately 65 kg/mm2. Use GEOMETRICAL METHOD to determine the depth of penetration. Do not use the formular in solving.
Homework Answers
Add Answer to:
A Brinell hardness test is performed on a cold-worked aluminum
alloy (yield stress = 200 MPa)...
Please explain every thing. Please write in the paper and then take a photo. 2.59 The Brinell hardness test is used to measure the indentation hardness of materials. It involves penetration of an in...
Please explain every thing.
Please write in the paper and then take a photo.
2.59 The Brinell hardness test is used to measure the indentation hardness of materials. It involves penetration of an indenter, in the form of a ball of diameter D (mm), under a load P (kg) as shown in Fig. 2.13a. The Brinell hardness number (BHN) is defined as 2P where A (in mm2) is the spherical surface area and d (in mm) is the diameter of...
Please explain every thing.
Please write in the paper and then take a photo.
2.59 The Brinell hardness test is used to measure the indentation hardness of materials. It involves penetration of an indenter, in the form of a ball of diameter D (mm), under a load P (kg) as shown in Fig. 2.13a. The Brinell hardness number (BHN) is defined as 2P where A (in mm2) is the spherical surface area and d (in mm) is the diameter of...
