1. A uniform rod is attached to a wall by a hinge at its base. The...

1. A uniform rod is attached to a wall by a hinge at its base. The rod has a mass of 9.0 kg, a length of 2.3 m, is at an angle of 23° above the horizontal, and is held in place by a horizontal cord attached to the other end of the rod and bolted to the wall above the base of the rod. (a) Determine the tension in the cord.

A. What is the magnitude of the force exerted by the pin in the previous problem?

B. What is the direction of the force in the previous problem, measured in degrees from the horizontal?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

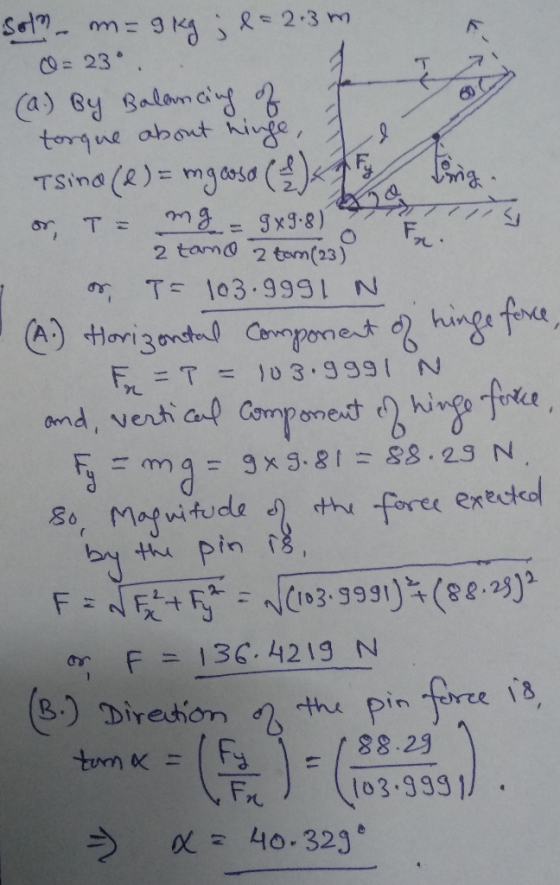

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
1. A uniform rod is attached to a wall by a hinge at its base. The...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 2 pts Question 1 A uniform rod is attached to a wall by a hinge at...

    2 pts Question 1 A uniform rod is attached to a wall by a hinge at its base. The rod has a mass of 9.0 kg, a length of 2.3 m, is at an angle of 23 above the horizontal, and is held in place by a horizontal cord attached to the other end of the rod and bolted to the wall above the base of the rod. (a) Determine the tension in the cord. 1 pts Question 2 What...

  • A uniform rod is attached to a wall by a hinge at its base. The rod...

    A uniform rod is attached to a wall by a hinge at its base. The rod has a mass of 6.00 kq, a length of 1.55 m, is at an angle of 29.0° above the horizontal, and is held in place by a horizontal cord attached to the other end of the rod and bolted to the wall above the base of the rod. (a) Determine the tension in the cord. (b) Determine the horizontal and vertical components of the...

  • A uniform rod isa the other end of the rod and bolted to the wall above...

    A uniform rod isa the other end of the rod and bolted to the wall above the base of the rod. to a wall by a hinge at its base. The rod has a mass of 3.75 kg, a length of 1.80 m, is at an angle of 23.0° above the and is held in place by a (a) Determine the tension in the cord (b) Determine the horizontal and vertical components of the force exerted on the rod by...

  • A 45.0 kg uniform rod 4.40 m long is attached to a wall with a hinge...

    A 45.0 kg uniform rod 4.40 m long is attached to a wall with a hinge at one end. The rod is held in a horizontal position by a wire attached to its other end. The wire makes an angle of 30.0 ∘ with the horizontal, and is bolted to the wall directly above the hinge. If the wire can withstand a maximum tension of 1300 N before breaking, how far from the wall can a 70.0 kg person sit...

  • A uniform metal rod, with a mass of 3.3 kg and a length of 1.1 m,...

    A uniform metal rod, with a mass of 3.3 kg and a length of 1.1 m, is attached to a wall by a hinge at its base. A horizontal wire bolted to the wall 0.58 m above the base of the rod holds the rod at an angle of 32 ∘ above the horizontal. The wire is attached to the top of the rod. A. Find the tension in the wire. B. Find the horizontal component of the force exerted...

  • A uniform meter stick of mass 1.5kg is attached to the wall by a frictionless hinge at one end. On the opposite end it i...

    A uniform meter stick of mass 1.5kg is attached to the wall by a frictionless hinge at one end. On the opposite end it is supported by a vertical massless string such that the stick makes an angle of 40 degrees with the horizontal. Find the tension in the string and the magnitude and direction of the force exerted on the stick by the hinge.

  • A uniform metal rod, with a mass of 1.80 kg and a length of 1.90 m,...

    A uniform metal rod, with a mass of 1.80 kg and a length of 1.90 m, is attached to a wall by a hinge at its base. A horizontal wire bolted to the wall 1.12 m above the base of the rod holds the rod at an angle of 36.1 degrees above the horizontal. The wire is attached to the top of the rod. Find the tension in the wire.

  • A uniform meta lrod, with a mass of 2.0 kg and al ength of 1.5m, is...

    A uniform meta lrod, with a mass of 2.0 kg and al ength of 1.5m, is attached to a wall by a hinge at its base. A horizontal wire bolted to the wall 0.70 m above the base of the rod holds the rod at anangle of 28° above the horizontal. The wire is attached to the top of the rod. (a) Find the tension in the wire. Find (b) the horizontal and (c) the vertical components of the force...

  • A uniform beam of mass and a length of, is attached to a wall by a...

    A uniform beam of mass and a length of, is attached to a wall by a pin connection. Its far end is supported by a cable that makes an angle of with the beam. A person of weight stands a distance from the wall. Find the tension in the cable and the magnitude and direction of the force exerted by the wall on the beam.

  • A beam is attached to a vertical wall with a hinge. The mass of the beam...

    A beam is attached to a vertical wall with a hinge. The mass of the beam is 1800 kg and it is 4 m long. A steel support wire is tied from the end of the beam to the wall, making an angle of 30° with the beam (see the figure below). 1)Calculate the tension in the support wire. Assume the beam has a uniform density. kN 2)What is the vertical component of the force exerted by the hinge on...
