Design a circuit having an output given by: -Vout = 18V1 + 5V2 - 8V3 Unfortunately,...

Question

Question

Design a circuit having an output given by: -Vout = 18V1 + 5V2 - 8V3

Unfortunately, this is the entire question. It's the output of an inverting op. amp if that helps

science physics

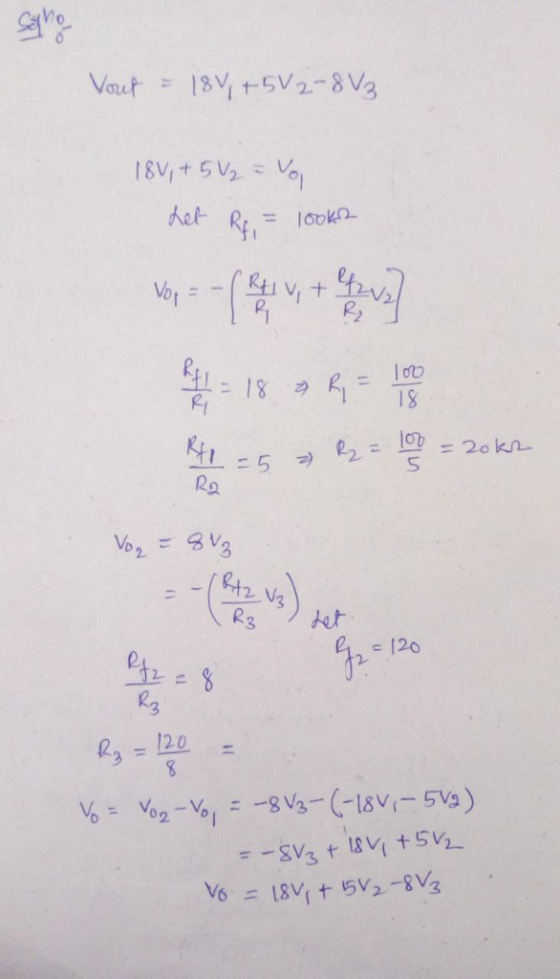

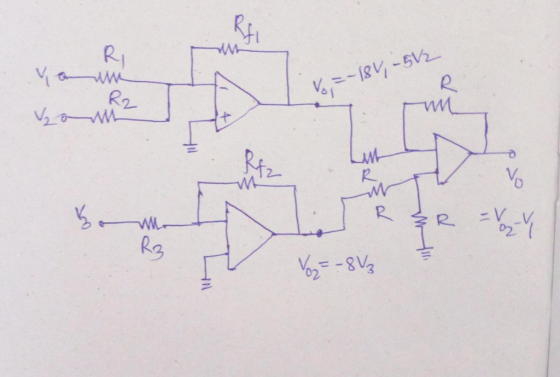

Answer 1

Answer #1

Answer 2
