Question

Please read the business statement below and draw ER, NER, and Table Schema diagrams for it.

Business Statement:

The project is about developing an auction Web site. The details are as follows:

BA is an online auction Web site. People can buy and sell items in this Web site. Buyers are people who like to buy items, and sellers are people who like to sell items.

• Each seller can sell items.

• Each item has a bidding start time, an end time, and an owner. Sellers are owners of

  their item. The start time and end time include the date as well.

• Each seller has a name, contact information, and credit card information. They also have a user name and a password.

• Contact information consists of an address, an email, and a telephone.

• An address consists of a street number and name, city, state, and zip code.

• Credit card information consists of owner name, card number, and expiration date.

• Each item has a name, condition, an initial price, a description, quantity, one or more pictures, and an owner.

• The condition could be New, Refurbished, or Explained. If the condition of an item is set to Explained, the seller should explain about the item condition in the item description.

• Each buyer has a name, contact information, and credit card information. They also have a user name and a password.

• When buyers login to Web site, they can go to the list of all available items and then go to the item detail page. Buyers can also search for an item. The application will search through item names for the search phrase.

• Buyers can bid on items. Once a bid is made, buyers are accountable for their bid. In other words, buyers cannot simply remove their bid. If they change their mind, all they can do is to update their bid with the price of zero. Of course, they can do that before the auction expires.

• After an auction expires, the buyer with the highest bid is the winner.

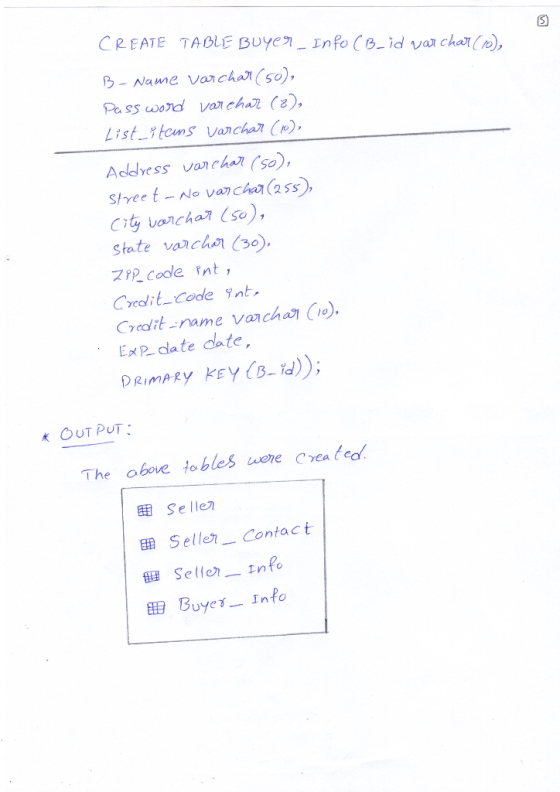

Answer 1
