An Olympic swimmer is waiting to compete. Her average skin temperature is 33°C and the average...

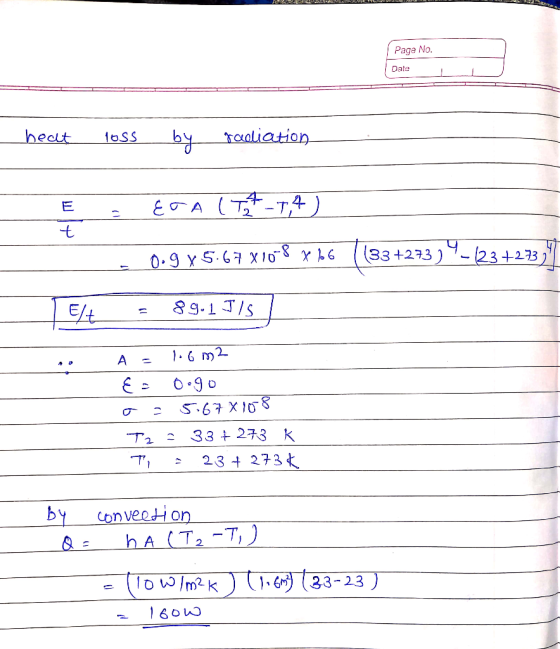

An Olympic swimmer is waiting to compete. Her average skin temperature is 33°C and the average temperature of the pool hall is 23°C. Her surface area is 1.6 m2, her surface emissivity is 0.9 and where she stands the mean air speed is 1.5 m s-1. Determine separately the rates at which she loses heat by radiative heat transfer and by convection.
Homework Answers
Add Answer to:
An Olympic swimmer is waiting to compete. Her average
skin temperature is 33°C and the average...
An animal's body has a skin temperature of 33 °C and is the room temperature where...
An animal's body has a skin temperature of 33 °C and is the room temperature where the walls are at temperature 29 °C. If the emissivity is 1 and the body area is 1.5 m2. What is the rate of heat transfer by radiation? ( Stefan-Boltzmann constant = 5.67 x 10 -8 J/s m?k4) 42 W 38 W 72 W O 54 W O 63 W
The surface area of an average naked human adult is 2.2 m^2 and the average skin...
The surface area of an average naked human adult is 2.2 m^2 and the average skin temperature is 33 degrees C. The emissivity of human skin is 0.95. Determine the radiation heat transfer rate from the human to the walls of a room if they are at 22 degrees C. This is why naked person feels chilly at room temperature.
Calculate the rate of energy loss due to thermal radiation from an unclothed person if the average skin temperature is...
Calculate the rate of energy loss due to thermal radiation from an unclothed person if the average skin temperature is 37 °C and the room temperature is 20 °C. You may sume a total surface area of 1.5 m and a skin emissivity value of 0.9. How much energy (from food) must be consumed per day to compensate for this loss? If the person is surrounded by a layer of insulation of thickness 1.0 cm with a thermal conductivity of...
A household oven door of 0.6-m height and 0.7-m width reaches an average surface temperature of...
A household oven door of 0.6-m height and 0.7-m width reaches an average surface temperature of 32°C during operation. The temperature of ambient air is 22°C. Assuming the door has an emissivity of 0.8 and the surroundings are also at 22°C, determine the heat transfer by free convection and the heat transfer by radiation. 1) What is the volumetric thermal expansion coefficient of air at the film temperature outside the oven door, in 1/K? 2) What is the Rayleigh number...
Homework 7 heat transfer 2018-20 1) A horizontal tube of 12.5-mm dimeter with an outer srface temperature of 240°C is placed in a room with an air temperature of 20°C. Estimate the heat transfer rate...
Homework 7 heat transfer 2018-20 1) A horizontal tube of 12.5-mm dimeter with an outer srface temperature of 240°C is placed in a room with an air temperature of 20°C. Estimate the heat transfer rate per unit length of the tube due to free convection. 2) Air at -10°C flows at 10 m/s over the roof plate of two 5m length rooms whose air is at Too-200C. The roof plate is 0.20-m thick concrete (k = 0.6 w/ m. K)....
system, hot water at an average temperature of 80°C is flowing through a 15-m section of...
system, hot water at an average temperature of 80°C is flowing through a 15-m section of a cast In a heating iron pipe (k 50 W/m K) whose inner and outer diameters are 4 cm and 5 cm, respectively. The outer surface of the pipe, whose emissivity is 0.75, is exposed to the cold air at 10°C in the basement. with a heat transfer coefficient of 15 W/m2.K. The heat transfer coefficient at the inner surface of the pipe is...
Question Water at an average temperature of 110°C and an average velocity of 3.5 m/s flows through a 5-m-long Beryllium Copper (k-66 w/m.k) tube merge in a boiling water tank. Do NOT ignore the wall...
Question Water at an average temperature of 110°C and an average velocity of 3.5 m/s flows through a 5-m-long Beryllium Copper (k-66 w/m.k) tube merge in a boiling water tank. Do NOT ignore the wall resistance. The inner and outer diameters of the tube are Di 1.0 cm and Do 2 cm, respectively. If the convection heat transfer coefficient at the outer surface of the tube where boiling is taking place is ho- 8400 W/m2.K, a) Determine the overall heat...
A long wire with circular cross section and diameter D = 1 mm is submerged in an oil bath with temperature To 20。C. The wire is initially at temperature T = 20。C, the same temperature as the oil. A...
A long wire with circular cross section and diameter D = 1 mm is submerged in an oil bath with temperature To 20。C. The wire is initially at temperature T = 20。C, the same temperature as the oil. A current is passed through the wire, resulting in a volumetric heat generation of q - 1.5 x 108 W/m3. The convection coefficient is h - 500 W/m2 - K, and the properties of the wire are ρ-8000 kg/m3, Cp-500 J/kg-K, and...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C and 100°C, respectively. Determine the rate of heal transfer by radiation between the plates in Wim and the radiative heat transfer coefficient in W/m K ) 12 Write down the one-dimensional sent heal conduction equation for a plane wall with constant thermal conductivity and heat generation in its simplest form, and indicate what each variable represents 13 Write down the one-dimensional transient heat conduction...
summarizr the followung info and write them in your own words and break them into different...
summarizr the followung info and write them in your own words and break them into different key points. 6.5 Metering Chamber: 6.5.1 The minimum size of the metering box is governed by the metering area required to obtain a representative test area for the specimen (see 7.2) and for maintenance of reasonable test accuracy. For example, for specimens incorporating air spaces or stud spaces, the metering area shall span an integral number of spaces (see 5.5). The depth of...
An animal's body has a skin temperature of 33 °C and is the room temperature where the walls are at temperature 29 °C. If the emissivity is 1 and the body area is 1.5 m2. What is the rate of heat transfer by radiation? ( Stefan-Boltzmann constant = 5.67 x 10 -8 J/s m?k4) 42 W 38 W 72 W O 54 W O 63 W
Calculate the rate of energy loss due to thermal radiation from an unclothed person if the average skin temperature is 37 °C and the room temperature is 20 °C. You may sume a total surface area of 1.5 m and a skin emissivity value of 0.9. How much energy (from food) must be consumed per day to compensate for this loss? If the person is surrounded by a layer of insulation of thickness 1.0 cm with a thermal conductivity of...
Homework 7 heat transfer 2018-20 1) A horizontal tube of 12.5-mm dimeter with an outer srface temperature of 240°C is placed in a room with an air temperature of 20°C. Estimate the heat transfer rate per unit length of the tube due to free convection. 2) Air at -10°C flows at 10 m/s over the roof plate of two 5m length rooms whose air is at Too-200C. The roof plate is 0.20-m thick concrete (k = 0.6 w/ m. K)....
system, hot water at an average temperature of 80°C is flowing through a 15-m section of a cast In a heating iron pipe (k 50 W/m K) whose inner and outer diameters are 4 cm and 5 cm, respectively. The outer surface of the pipe, whose emissivity is 0.75, is exposed to the cold air at 10°C in the basement. with a heat transfer coefficient of 15 W/m2.K. The heat transfer coefficient at the inner surface of the pipe is...
Question Water at an average temperature of 110°C and an average velocity of 3.5 m/s flows through a 5-m-long Beryllium Copper (k-66 w/m.k) tube merge in a boiling water tank. Do NOT ignore the wall resistance. The inner and outer diameters of the tube are Di 1.0 cm and Do 2 cm, respectively. If the convection heat transfer coefficient at the outer surface of the tube where boiling is taking place is ho- 8400 W/m2.K, a) Determine the overall heat...
A long wire with circular cross section and diameter D = 1 mm is submerged in an oil bath with temperature To 20。C. The wire is initially at temperature T = 20。C, the same temperature as the oil. A current is passed through the wire, resulting in a volumetric heat generation of q - 1.5 x 108 W/m3. The convection coefficient is h - 500 W/m2 - K, and the properties of the wire are ρ-8000 kg/m3, Cp-500 J/kg-K, and...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C and 100°C, respectively. Determine the rate of heal transfer by radiation between the plates in Wim and the radiative heat transfer coefficient in W/m K ) 12 Write down the one-dimensional sent heal conduction equation for a plane wall with constant thermal conductivity and heat generation in its simplest form, and indicate what each variable represents 13 Write down the one-dimensional transient heat conduction...
