Question

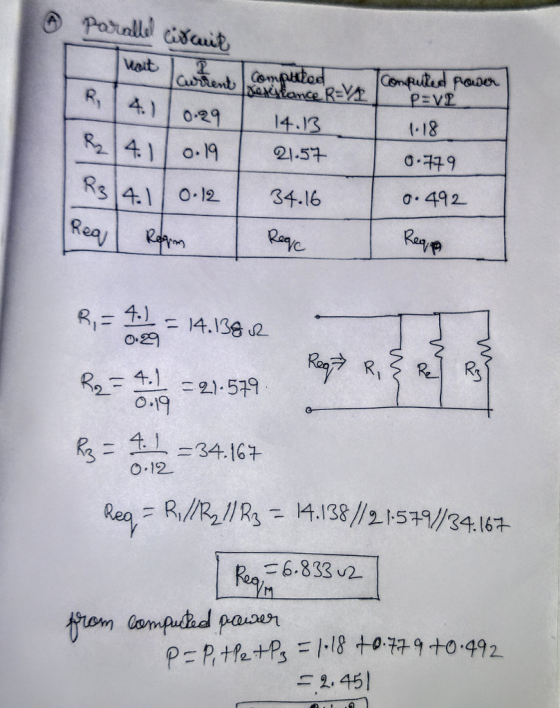

parralle circuit   Volt I, current Computed resistance R=V/I Computed Power P=VI R1 4.1 0.29 14.13 1.18...

parralle circuit

Volt I, current Computed resistance R=V/I

Computed Power P=VI

R1 4.1 0.29 14.13 1.18
R2 4.1 0.19 21.57 0.779
R3 4.1 0.12 34.16 0.492
R_eq

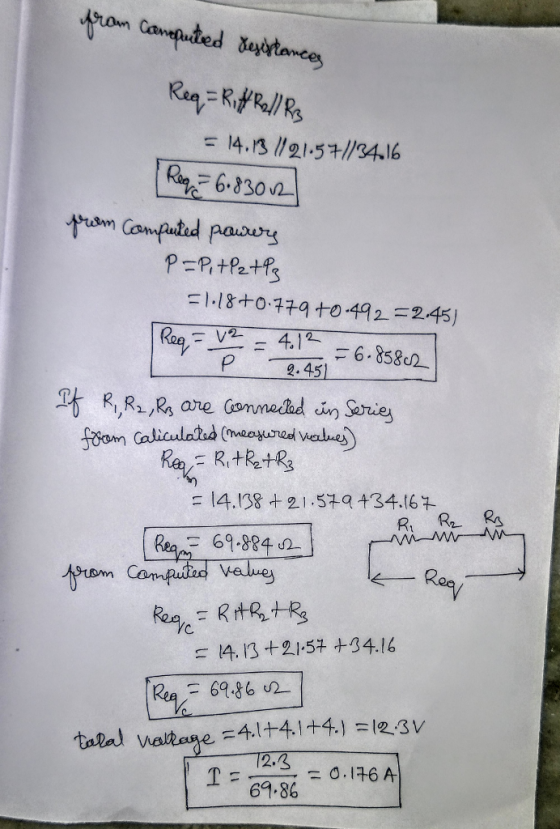

use the measured R value for each light bulb to calculate R_eq. Then compare the calculated R_eq and the measure valued based on the ratio of the total voltage drop and the currentDraw a series circuit digram and calculate R_eq and I

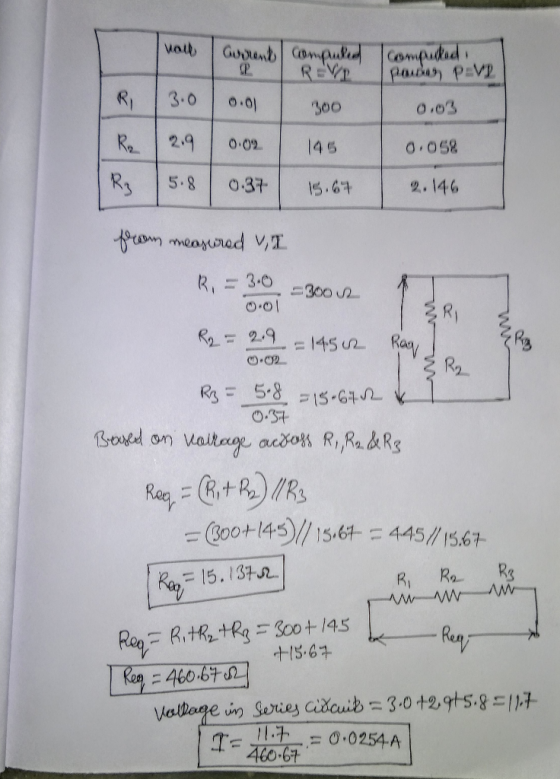

B. parralle- series circuit

VOLTS I, Current through R Computed Resistance R=V/I Computed Power P=VI
R1 3.0 0.01 300 0.03
R2 2.9 0.02 145 0.058
R3 5.8 0.37 15.67 2.146
R_eq


use the measured R value for each light bulb to calculate R_eq. Then compare the calculated R_eq and the measure valued based on the ratio of the total voltage drop and the currentDraw a series circuit digram and calculate R_eq and I

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
parralle circuit   Volt I, current Computed resistance R=V/I Computed Power P=VI R1 4.1 0.29 14.13 1.18...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 6. Find Vi in the following circuit if VR2 3 V, I -2 A, RI 100...

    6. Find Vi in the following circuit if VR2 3 V, I -2 A, RI 100 , and R2 50 . Ry VR R.y 7. What is the output voltage (Vo) of the summing op-amp below? 1000 kn 200 k2 50 k2 +5 V 100 k2 -5 V V. out 8. For the operational amplifier circuit depicted below: a. Determine Vout in terms of the resistors: Ri, R2, R3, R4 and I R1 qut R- (current source) for the operational...

  • 7. Find all unknown values of V, I, R and P for the four resistors in...

    7. Find all unknown values of V, I, R and P for the four resistors in the series-parallel circuit. Total resistance is 702. Make a chart and record given and calculated values. Show all steps and equations used to arrive at your answers. (10 points) R2 V1 40 1 R1 30 210 R4 20

  • 2- Set the two independent power sources to Vsi 6V and Veo" 10 V and measure...

    2- Set the two independent power sources to Vsi 6V and Veo" 10 V and measure their actual values using the DMM. Actual Values of power sources: 4.47 VS15.99 Vs- 3- Using the breadboard construct the circuit shown in Figure 4,1 (repeated below for convenience). Use the resistors measured in Step 1 (above) and the power sources Vsi- 6 V, and Vs2 -10 V. IR3 IRI RS. R5 R1 R3 Va V4 V2 V1 ww ww It 12 R4 R23...

  • Answer 4 & 5 please! thank you! R values = Resistor value, R1 = 990 Ohms...

    Answer 4 & 5 please! thank you! R values = Resistor value, R1 = 990 Ohms Resistor value, R2 = 2050 Ohms 4. Connect the 2nd resistor in parallel with the 1st resistor and connect that combination to the battery.          Measure the following:               The current passing through the R1, I1 = ___0.0058____ A               The current passing through the R2, I2 = ___0.0031____ A               The current supplied by the battery, I = ___0.0092____ A              Calculate I1 + I2 =...

  • EE 282-Circuit I Pre-Lab 9 Maximum Power Transfer Theorem Name Concepts: In this pre-lab we will ...

    EE 282-Circuit I Pre-Lab 9 Maximum Power Transfer Theorem Name Concepts: In this pre-lab we will be leaming about Maximum Power Transfer Theorem. Maximum power is transferred to the load when the load resistance equals the thexenin equivalent, and we carry out the analysis using Thevenin's equivalent circuit. In order to do this, first build the following circuit on Mutism. 1 R1 5.1k0 R3 2 V1 R2 8kQ 6.8㏀ Fig. 1 Part 1: To find the Thevenin equivalent resistance, we...

  • How do I calculate the “calculated current flowing through each resistor using Kirchhoffs junction rule and...

    How do I calculate the “calculated current flowing through each resistor using Kirchhoffs junction rule and the measured values”? Please show your work. Thank you! Old Dominion University Physics 112 & 232 Lab 2. Use the EXTECH Digital M measure the individual resi "orange, black, brown" band Turn on the DMM and turn 2000 Ω position. 2 V 1.5 V Using wire leads with ab and alligator clip on opp banana plug end of a red wi 2) jack, and...

  • Use measured resistance values and node analysis to calculate the node voltages. Use measured resistance values...

    Use measured resistance values and node analysis to calculate the node voltages. Use measured resistance values and mesh analysis to calculate the mesh currents. Show that the calculated values agree with the measured values and explain any discrepancies between measured and calculated values. Introduction: In this pre-lab we will look at node voltages, mesh currents and bridge circuits. Bridge Circuits are used to make precision measurements, and in this lab -- -0 V2 will look at a DC Bridge Circuit...

  • Pease answer questions 4 and 5! Thank you so much! 4. Connect the 2nd resistor in...

    Pease answer questions 4 and 5! Thank you so much! 4. Connect the 2nd resistor in parallel with the 1st resistor and connect that combination to the battery.          Measure the following:               The current passing through the R1, I1 = ___0.0058____ A               The current passing through the R2, I2 = ___0.0031____ A               The current supplied by the battery, I = ___0.0092____ A              Calculate I1 + I2 = ____________ A                     Is the following statement true? I = I1 +...

  • Exercise #4 Voltage Divider A. Introduction In a previous exercise, you learned about the current-voltage relationship...

    Exercise #4 Voltage Divider A. Introduction In a previous exercise, you learned about the current-voltage relationship in a single resistor. Now, you will about how voltage is divided across two resistors in series. In this exercise you will: Examine the operation of the electric circuit known as the voltape divicder At the conclusion of this exercise you should be able to Compute the valtage across a resistor in a voltage divider circuit Design a voltage divider circuit to produce a...

  • I only need help with the discussion there are many info that you do not need put I put just in ...

    I only need help with the discussion there are many info that you do not need put I put just in case as well as my data table. please do it as soon as u can Meauements ODeit1 Check2 Meaurements Checi3 Ced Check5 Check6 Measurements Check7 heck8 4058 33 536 1502 1035 979 119478 041 1.0319|0.554972| 64261| 153|15542033681 995781 5266566 1578807 298h 1631 119 1209430016 079096812 0.418135246 0,00032665 011890:004668155728441 0293237 1.291809502 1.22833 1.28 1952 -1116 4281 140616885511984206317 3346 8162 0.78...
