The total resistance (RT) of the three parallel resistors is; (which shows three parallel resistors, R1...

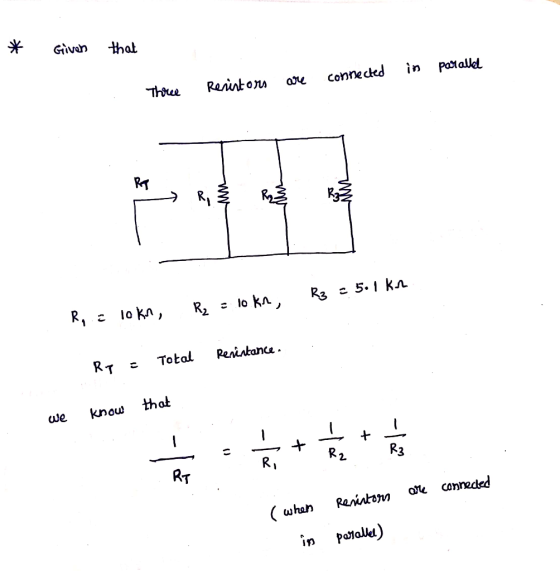

The total resistance (RT) of the three parallel resistors is; (which shows three parallel resistors, R1 = 10 kΩ, R2 = 10 kΩ, and R3 = 5.1 kΩ.)
| a. |
2.52 kΩ |
|
| b. |
3.35 kΩ |
|
| c. |
5.1 kΩ |
|
| d. |
25.1 kΩ |
Homework Answers

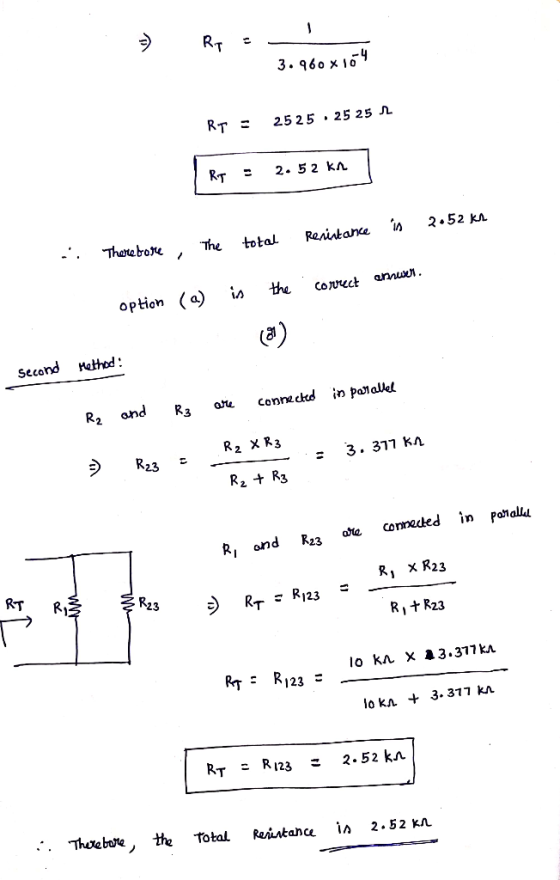

Option A is the correct answer
I have clearly mentioned the answer with clear explanation .....if u like the answer please thumbs up
