A Lancashire boiler is 7.5m long, 2m diameter and is half full of water at 30˚C....

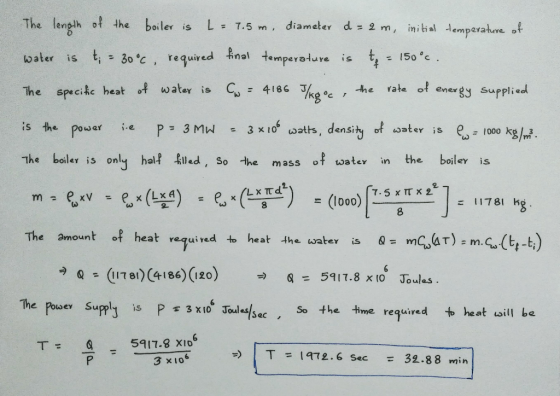

A Lancashire boiler is 7.5m long, 2m diameter and is half full of water at 30˚C. Heat is supplied to the boiler at a constant rate of 3MW. Calculate the time taken to raise the temperature of the water to 150˚C if the thermal capacity of the boiler metal is neglected
Homework Answers
Add Answer to:
A Lancashire boiler is 7.5m long, 2m diameter and is half full
of water at 30˚C....
