The surface charge density on an infinite charged plane is −1.60×10−6 C/m2 . A proton is...

Question

Question

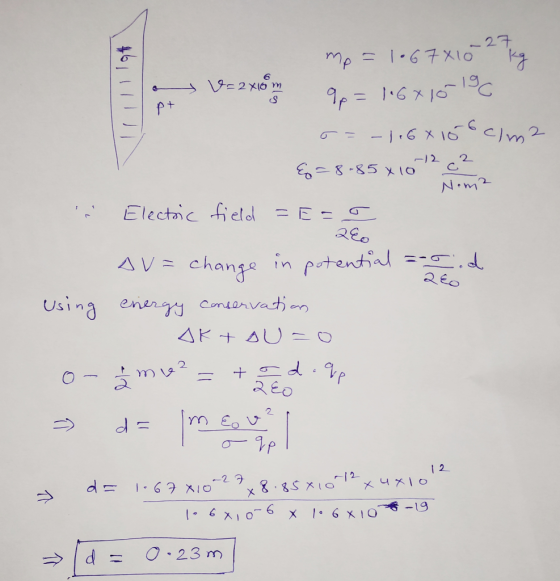

The surface charge density on an infinite charged plane is −1.60×10⁻⁶ C/m2 . A proton is shot straight away from the plane at 2.00×10⁶ m/s .

science physics

Answer 1

Answer #1

Answer 2
