Assume a solid shaft with a diameter of d, and the load at the end is...
Assume a solid shaft with a diameter of d, and the load at the end is P. Use Castigliano's method, find the linear deflection and the angular deflection from bending at the suspending end of the shaft , and the angular deflection from Torsion. In terms of P,T,d and the Modulus E and G.

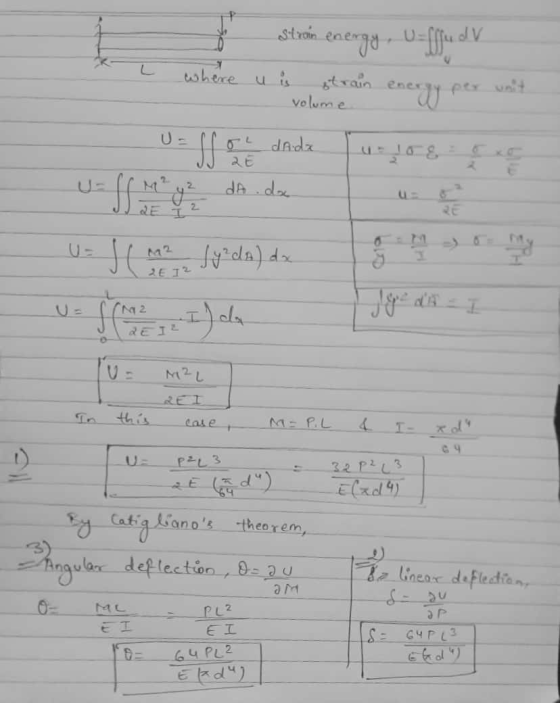

1) Energy equation
2)linear deflection
3) Angular deflection from bending

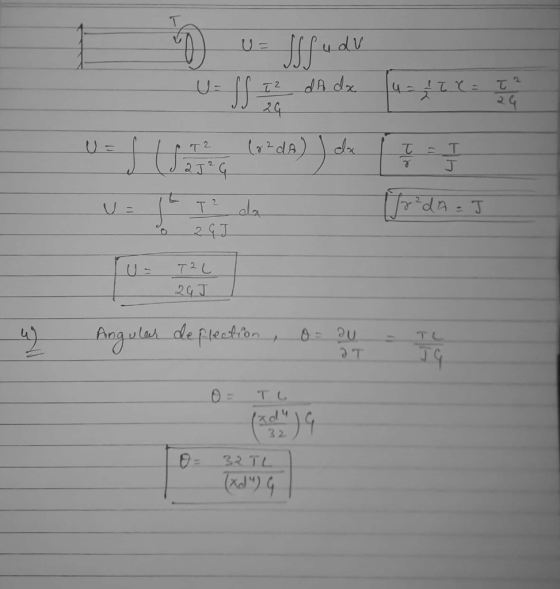

4) Angular deflection from torsion
Homework Answers
Castigliano's theorem relates strain energy to angular and linear deflection. Strain energy is first calculated for the given case and then linear and angular deflections are calculated with the help of Castigliano's method.
