4. An inductor with inductance L=0.5mH is connected to a 110V AC voltage source.

a. If the AC voltage is 60Hz, what is the current through the inductor?

b. If the AC voltage is 120Hz, what is the current through the inductor?

science physics

Answer 1

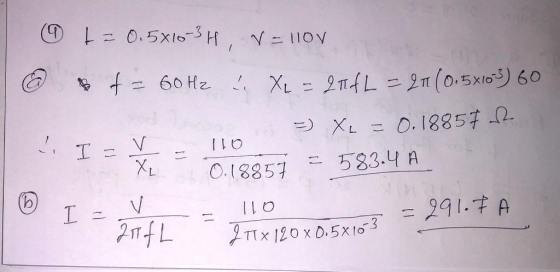

Answer #1

Answer 2
