A stationary think uniform density ring of mass 0.75kg and radius 40 cm drops onto a...

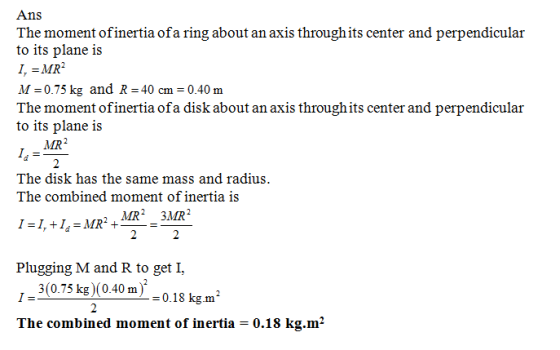

A stationary think uniform density ring of mass 0.75kg and radius 40 cm drops onto a uniform density disk that has the same mass and radius but the disk is initially rotating with an angular speed of w = 2.5 rad/s. After the ring falls onto the disk and they stick to each other, they rotate together with a new angular speed. There is negligible friction at the disks rotational axis. What is the combined moment of inter of the ring and disk?
- 0.12 Kg * m^2
- 0.24 Kg * m^2
- 0.30 Kg * m^2
- 0.060 Kg * m^2
- 0.18 Kg * m^2
