Explain what would happen to the velocity of the cart as the incline angle of the...

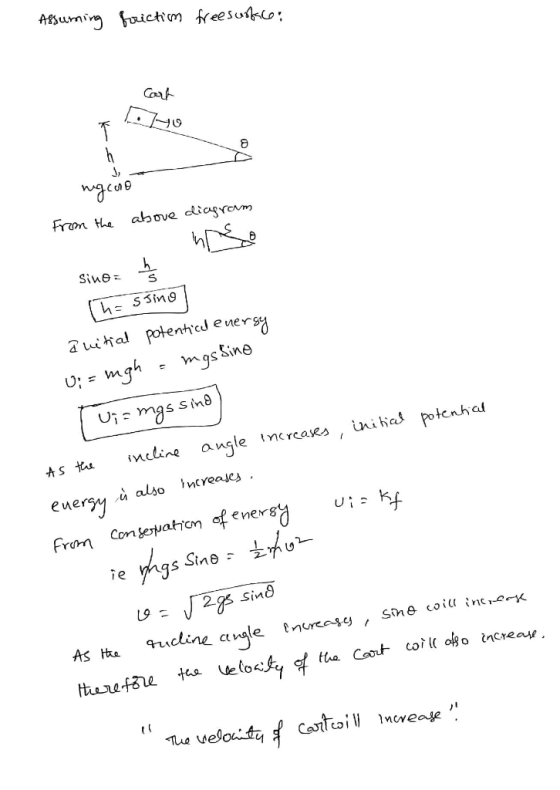

Explain what would happen to the velocity of the cart as the incline angle of the track increases.
Homework Answers
Add Answer to:
Explain what would happen to the velocity of the cart as the
incline angle of the...
Cart on an Incline plane. Start up the Dynamics Track apparatus. Set the µKS? # stepper...
Cart on an Incline plane. Start up the Dynamics Track apparatus. Set the µKS? # stepper to zero (µk = 0.12 and µs = 0.18 by default). Please notice that the dynamic track has a feature to be tilted by dragging when the mouse cursor is in the colored part of either end of the track. The message box informs that the track can be tilted up or down. With the brake off, turn on the friction pad and put...
Question 7 2 pts At an angle of incline of the track at 89, in how...
Question 7 2 pts At an angle of incline of the track at 89, in how much time is the cart expected to travel 0.5 meter, if it starts from rest? 0.8574
1. A 185 g cart is given a quick push up a frictionless incline, giving it...
1. A 185 g cart is given a quick push up a frictionless incline, giving it an initial velocity of 1.45 m/s. The incline is at an angle of 10.0 to the horizontal. You must show your work to get full credit for this problem. a) What is the cart's initial kinetic energy, i.e. when it leaves the launcher? KE =mv eay @ztty =C85k9)(145s) = .1343 b) What is the cart's change in kinetic energy (Kr-Ko) from the launch point...
Question 22 of 22 > Track ... Rope . A cart for hauling ore out of...
Question 22 of 22 > Track ... Rope . A cart for hauling ore out of a gold mine has a mass of 445 kg, including its load. The cart runs along a straight stretch of track that climbs a shallow 4.55° incline. A donkey, which is trudging along and to the side of the track, has the unenviable job of pulling the cart up the slope with a 444 N force for a distance of 201 m by means...
The 300 kg mine cart is hoisted up the incline using the cable and motor, M....
The 300 kg mine cart is hoisted up the incline using the cable
and motor, M. The force in the cable is F= (300t)N, where t is in
seconds. The initial velocity is 3 m/s at s=3 and t=0. Determine
the velocity when t=3 seconds. The angle of the incline is 35
degrees.
A cart for hauling ore out of a gold mine has a mass of 429 kg...
A cart for hauling ore out of a gold mine has a mass of 429 kg , including its load. The cart runs along a straight stretch of track that climbs a shallow 4.63∘ incline. A donkey, which is trudging along and to the side of the track, has the unenviable job of pulling the cart up the slope with a 431 N force for a distance of 131 m by means of a rope that is parallel to the...
please choose the correct answer, thx One Dimensional Motion: For the acceleration due to a falling weight, what would happen if the hanging weight hit the ground before the cart passed completely...
please choose the correct answer, thx
One Dimensional Motion: For the acceleration due to a falling weight, what would happen if the hanging weight hit the ground before the cart passed completely through the The cart would stop accelerating at that point and move at a constant velocity, so the measured acceleration would be larger than expected The cart would come to a complete stop and the measured acceleration would be meaningless. The cart would stop accelerating at that point...
A uniform sphere rolls down an incline. (a) What should be the incline angle theta if...
A
uniform sphere rolls down an incline. (a) What should be the
incline angle theta if the linear acceleration of the center of the
sphere is to be 0.2g, where g is acceleration due to gravity? (b)
For this angle, what would be the acceleration of a frictionless
block sliding down the incline?
A uniform sphere('a = žmR”, rolls down an incline.(a) What should be the incline angle if the linear acceleration of the center of the sphere is to...
If cart 1 with an initial velocity of v1 collides with cart 2 with initial velocity...
If cart 1 with an initial velocity of v1 collides with cart 2 with initial velocity v2, and after the collision, they move as a single mass. What would the graph of the center of mass vs time look like? (assume t = 0 is the moment right after the impulse to Cart 1 is delivered and assume equal masses) What about if instead, they move as one mass, they are repelled by each other if there are magnetic bumpers...
142 Draw a sketch of a cart on a slightly inclined air track. Assume its motion...
142 Draw a sketch of a cart on a slightly inclined air track. Assume its motion is restricted to one dimension along the incline. Draw vectors to indicate all forces acting on the cart. Make the lengths of the vectors correspond roughly to the magnitude of the force or the components o force. Indicate what happens to the forces as the angle of the incline goes to zero. How would these forces affect your experiment? 5. List four examples of...
Question 7 2 pts At an angle of incline of the track at 89, in how much time is the cart expected to travel 0.5 meter, if it starts from rest? 0.8574
1. A 185 g cart is given a quick push up a frictionless incline, giving it an initial velocity of 1.45 m/s. The incline is at an angle of 10.0 to the horizontal. You must show your work to get full credit for this problem. a) What is the cart's initial kinetic energy, i.e. when it leaves the launcher? KE =mv eay @ztty =C85k9)(145s) = .1343 b) What is the cart's change in kinetic energy (Kr-Ko) from the launch point...
Question 22 of 22 > Track ... Rope . A cart for hauling ore out of a gold mine has a mass of 445 kg, including its load. The cart runs along a straight stretch of track that climbs a shallow 4.55° incline. A donkey, which is trudging along and to the side of the track, has the unenviable job of pulling the cart up the slope with a 444 N force for a distance of 201 m by means...
The 300 kg mine cart is hoisted up the incline using the cable
and motor, M. The force in the cable is F= (300t)N, where t is in
seconds. The initial velocity is 3 m/s at s=3 and t=0. Determine
the velocity when t=3 seconds. The angle of the incline is 35
degrees.
please choose the correct answer, thx
One Dimensional Motion: For the acceleration due to a falling weight, what would happen if the hanging weight hit the ground before the cart passed completely through the The cart would stop accelerating at that point and move at a constant velocity, so the measured acceleration would be larger than expected The cart would come to a complete stop and the measured acceleration would be meaningless. The cart would stop accelerating at that point...
A
uniform sphere rolls down an incline. (a) What should be the
incline angle theta if the linear acceleration of the center of the
sphere is to be 0.2g, where g is acceleration due to gravity? (b)
For this angle, what would be the acceleration of a frictionless
block sliding down the incline?
A uniform sphere('a = žmR”, rolls down an incline.(a) What should be the incline angle if the linear acceleration of the center of the sphere is to...
142 Draw a sketch of a cart on a slightly inclined air track. Assume its motion is restricted to one dimension along the incline. Draw vectors to indicate all forces acting on the cart. Make the lengths of the vectors correspond roughly to the magnitude of the force or the components o force. Indicate what happens to the forces as the angle of the incline goes to zero. How would these forces affect your experiment? 5. List four examples of...
