The anterior cruciate ligament in a woman's knee is 2.6 cm long and has a cross-sectional...

The anterior cruciate ligament in a woman's knee is 2.6 cm long and has a cross-sectional area of 0.47 cm2. Assume that the Young's modulus of the ligament is 1.0×108 N/m2. If a force of 2500 N is applied longitudinally, by how much Δ? will the ligament stretch?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

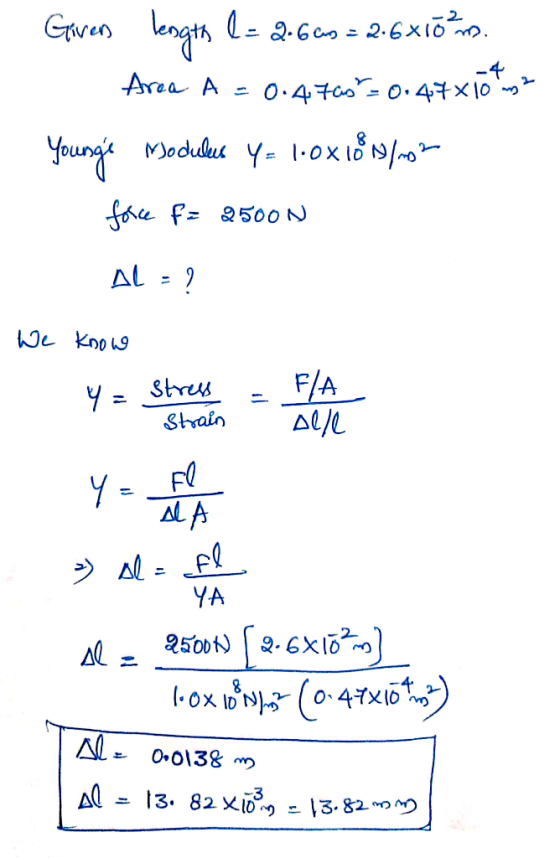

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
The anterior cruciate ligament in a woman's knee is 2.6 cm long and has a cross-sectional...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The anterior cruciate ligament in a woman's knee is 2.3 cm long and has a cross-sectional...

    The anterior cruciate ligament in a woman's knee is 2.3 cm long and has a cross-sectional area of 0.50 cm2. Assume that the Young's modulus of the ligament is 1.0×108 N/m2. If a force of 2300 N is applied longitudinally, by how much ΔL will the ligament stretch? ΔL= cm

  • One model of the length ?ACL of a person's anterior cruciate ligament, or ACL, relates it...

    One model of the length ?ACL of a person's anterior cruciate ligament, or ACL, relates it to the person's height ℎ with the linear function ?ACL=0.04606ℎ−(41.29 mm) This relationship does not change significantly with age, gender, or weight. If a basketball player has a height of 2.21 m, approximately how long is his ACL? ?ACL= mm If a stress of 1.05×107 N/m2 is applied to his ligament, how much will it stretch? The Young's modulus for the ACL is 1.10×108...

  • One model of the length LACLLACL of a person's anterior cruciate ligament, or ACL, relates it...

    One model of the length LACLLACL of a person's anterior cruciate ligament, or ACL, relates it to the person's height hh with the linear function LACL=0.04606h−(41.29 mm)LACL=0.04606h−(41.29 mm) This relationship does not change significantly with age, gender, or weight. If a basketball player has a height of 2.13 m,2.13 m, approximately how long is his ACL? LACL=LACL= mmmm If a stress of 1.05×107 N/m21.05×107 N/m2 is applied to his ligament, how much will it stretch? The Young's modulus for the...

  • One model of the length Lacl of a person's anterior cruciate ligament, or ACL, relates it...

    One model of the length Lacl of a person's anterior cruciate ligament, or ACL, relates it to the person's height h with the linear function LACL = 0.04606h – (41.29 mm) This relationship does not change significantly with age, gender, or weight. If a basketball player has a height of 2.21 m, approximately how long is his ACL? LACL = mm If a stress of 1.05 x 10' N/m² is applied to his ligament, how much will it stretch? The...

  • One model of the length Lace of a person's anterior cruciate ligament, or ACL, relates it...

    One model of the length Lace of a person's anterior cruciate ligament, or ACL, relates it to the person's height h with the linear function LACL 0.04606h - (41.29 mm) This relationship does not change significantly with age, gender, or weight. If a basketball player has a height of 2.25 m, approximately how long is his ACL? mm LACL If a stress of 1.05 x 10' N/m² is applied to his ligament, how much will it stretch? The Young's modulus...

  • Exercise 11.27 A metal rod that is 5.00 m long and 0.49 cm2 in cross-sectional area...

    Exercise 11.27 A metal rod that is 5.00 m long and 0.49 cm2 in cross-sectional area is found to stretch 0.13 cm under a tension of 4300 N . Part A What is Young's modulus for this metal? Express your answer using two significant figures. Y =   Pa   SubmitMy AnswersGive Up

  • A metal rod that is 4.0 m long and 0.05 m2 in cross-sectional area is found to stretch 0.01 m under a tension of 50...

    A metal rod that is 4.0 m long and 0.05 m2 in cross-sectional area is found to stretch 0.01 m under a tension of 5000 N. What is Young's modulus (in N/m2) for this metal? Tensile stress_FI/A Tensile strainAll Filo A Al 4 x 106 1 x 107 4 x 108 1x 108 4 x 10

  • Exercise 11.27 A metal rod that is 5.00 m long and 0.59 cm2 in cross-sectional area...

    Exercise 11.27 A metal rod that is 5.00 m long and 0.59 cm2 in cross-sectional area is found to stretch 0.25 cm under a tension of 4300 N . Part A What is Young's modulus for this metal? Express your answer using two significant figures. Y =   Pa   SubmitMy AnswersGive Up Incorrect; Try Again; 3 attempts remaining

  • 1. A wire 2.0 m long and cross sectional area of 10-6 m2 is stretched 1.0...

    1. A wire 2.0 m long and cross sectional area of 10-6 m2 is stretched 1.0 mm by a force of 50.0 N. Calculate: (a) The stress. (5.0 x 107 N/m2 ) (b) The strain. (5.0 x 10-4 ) (c) Young’s modulus of elasticity. (1.0 x 1011 N/m2) (d) The energy stored in the wire. (0.025 J)

  • 1 pts A tensile stress of 50 kPa (1 kPa 1000 N/m) acting on 20-cm-long muscle...

    1 pts A tensile stress of 50 kPa (1 kPa 1000 N/m) acting on 20-cm-long muscle stretches the muscle by 1 mm. what is the Young's modulus for this muscle? O10,000 kPa We must know cross-sectional area (or diameter) of muscle to find this. 250 kPa O 1,000 kPa 1 pts Question 3 The quadriceps the biceps muscle in the upper arm. Assuming that Young's elastic modulus is the same of both muscles, if the same tensile force were applied...
